2021 Yamaha MT07 (MT07ML) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

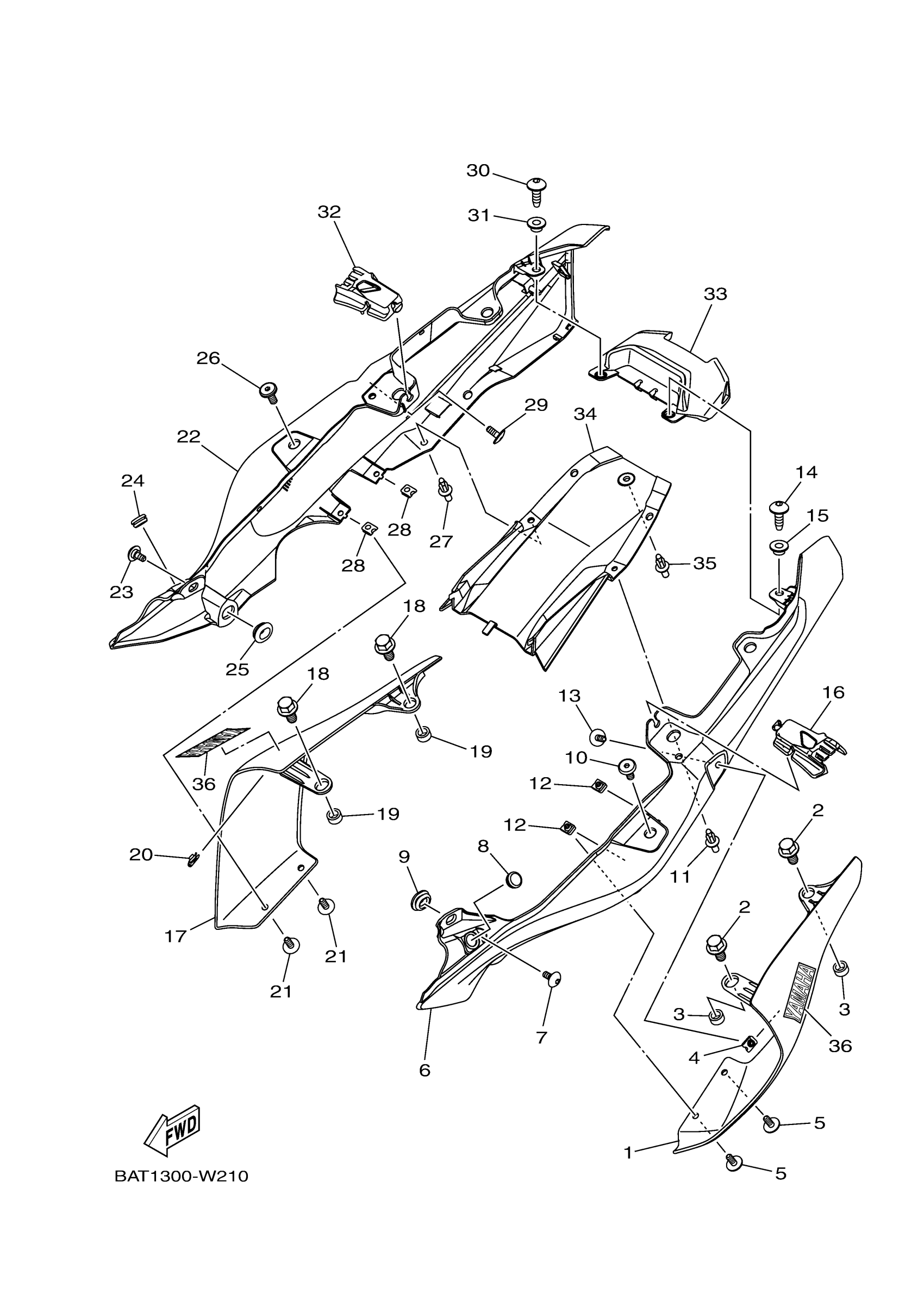

2021 Yamaha MT07 (MT07ML) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

BAT-21711-00-P1

1

$59.39

In stock

2

BOLT, WASHER BASED

90105-08021-00

1

$6.26

In stock

3

COLLAR

90387-08126-00

1

$7.91

In stock

4

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

5

BOLT

90111-05003-00

1

$6.17

In stock

6

COVER, SIDE 5

B4C-2171E-00-00

1

$59.39

In stock

7

BOLT

90111-05011-00

1

$4.37

In stock

8

GROMMET 285216390000

90480-14100-00

1

$6.45

In stock

9

GROMMET(4BH)

90480-01559-00

1

$4.80

In stock

10

BOLT

90109-06259-00

1

$2.72

In stock

11

RIVET

90269-06008-00

1

$7.40

In stock

12

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

13

BOLT

90111-05003-00

1

$6.17

In stock

14

SCREW, TAPPING(4TX)

90167-05076-00

1

$1.78

In stock

15

COLLAR

90387-05021-00

1

$6.26

In stock

16

MOLE, SIDE COVER 1

B4C-2171L-00-00

—

$6.98

In stock

17

COVER, SIDE 2

BAT-21721-00-P1

—

$59.39

In stock

18

BOLT, WASHER BASED

90105-08021-00

1

$6.26

In stock

19

COLLAR

90387-08126-00

1

$7.91

In stock

20

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

21

BOLT

90111-05003-00

1

$6.17

In stock

22

COVER, SIDE 6

B4C-2171X-00-00

—

$59.39

In stock

23

BOLT

90111-05011-00

1

$4.37

In stock

24

GROMMET 285216390000

90480-14100-00

1

$6.45

In stock

25

GROMMET(4BH)

90480-01559-00

1

$4.80

In stock

26

BOLT

90109-06259-00

1

$2.72

In stock

27

RIVET

90269-06008-00

1

$7.40

In stock

28

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

29

BOLT

90111-05003-00

1

$6.17

In stock

30

SCREW, TAPPING(4TX)

90167-05076-00

1

$1.78

In stock

31

COLLAR

90387-05021-00

1

$6.26

In stock

32

MOLE, SIDE COVER 2

B4C-2171M-00-00

—

$6.92

In stock

33

COVER, TAILLIGHT

B4C-2172X-00-00

—

$17.82

In stock

34

COVER, REAR FENDER

BAT-21651-00-00

—

$40.88

In stock

35

RIVET

90269-06008-00

1

$7.40

In stock

36

EMBLEM, YAMAHA

4B5-2153E-21-00

—

$2.20

In stock
