2021 Yamaha MT07 (MT07ML) Stand & Footrest 2 Diagram

← All diagrams

Find the part on the Stand & Footrest 2 diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

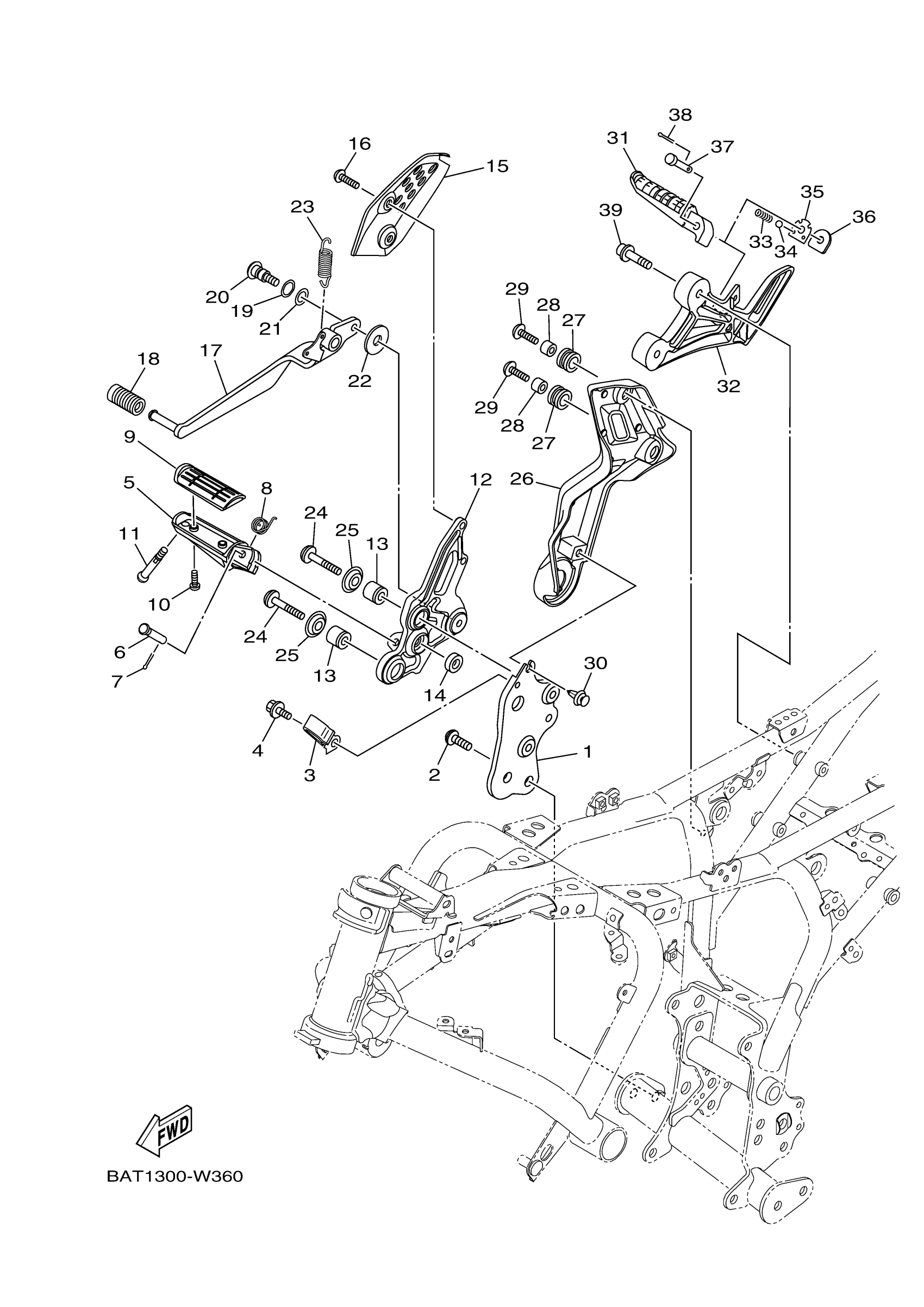

2021 Yamaha MT07 (MT07ML) Stand & Footrest 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,ADAPTER 2

B34-274A4-00-00

1

$71.00

In stock

2

BOLT

90111-10006-00

1

$4.63

In stock

3

CLAMP

90465-08045-00

—

$11.26

In stock

4

BOLT, FLANGE

95022-06010-00

1

$5.45

In stock

5

FOOTREST

1WS-27461-00-00

1

$30.79

In stock

6

PIN, CLEVIS

91702-08040-00

1

$4.08

In stock

7

PIN, COTTER

91490-25020-00

1

$2.94

In stock

8

SPRING, TORSION

90508-18056-00

1

$1.32

In stock

9

COVER, FOOTREST

3YX-27413-00-00

1

$25.22

In stock

10

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock

11

BOLT

90109-08225-00

1

$5.14

In stock

12

BRACKET 3

1WS-27443-10-00

1

$81.78

In stock

13

DAMPER, FOOTREST

36Y-27414-00-00

1

$21.75

In stock

14

STOPPER, MAIN STAND

5VX-27114-00-00

1

$6.38

In stock

15

PLATE 2

1WS-27446-10-00

—

$38.51

In stock

16

BOLT

90111-08022-00

—

$2.49

In stock

17

PEDAL, BRAKE

BAT-27211-00-00

—

$55.49

In stock

18

COVER, SHIFT PEDAL

1WS-18113-00-00

—

$4.48

In stock

19

WASHER, WAVE (17W)

90206-12074-00

—

$6.98

In stock

20

BOLT

4BP-27434-11-00

—

$2.57

In stock

21

WASHER, PLATE

90201-12051-00

—

$6.29

In stock

22

WASHER, PLATE

90201-08053-00

—
Out of stock

23

SPRING, TENSION

90506-23008-00

—

$5.89

In stock

24

—

$7.02

In stock

25

WASHER(1UF)

90209-08295-00

—

$6.66

In stock

26

COVER 2

BAT-27463-00-00

—

$9.34

In stock

27

GROMMET

90480-14003-00

—

$6.25

In stock

28

COLLAR

90387-06057-00

—

$6.15

In stock

29

SCREW(4DN)

90149-06302-00

—

$4.29

In stock

30

RIVET

90269-08008-00

—

$1.62

In stock

31

FOOTREST, REAR 2

B7N-27441-00-00

—

$11.80

In stock

32

BRACKET 5

1WS-2742L-02-00

—

$76.97

In stock

33

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

34

BALL

93501-04011-00

—
Out of stock

35

WASHER, SPECIAL

5VX-27437-00-00

—

$6.71

In stock

36

WASHER, SPECIAL

BAT-27437-00-00

—

$1.54

In stock

37

PIN, CLEVIS

91702-08040-00

1

$4.08

In stock

38

PIN, COTTER

91490-25020-00

1

$2.94

In stock

39

—

$6.32

In stock
