2021 Yamaha MT07 (MT07ML) OIL Cleaner Diagram

← All diagrams

Find the part on the OIL Cleaner diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

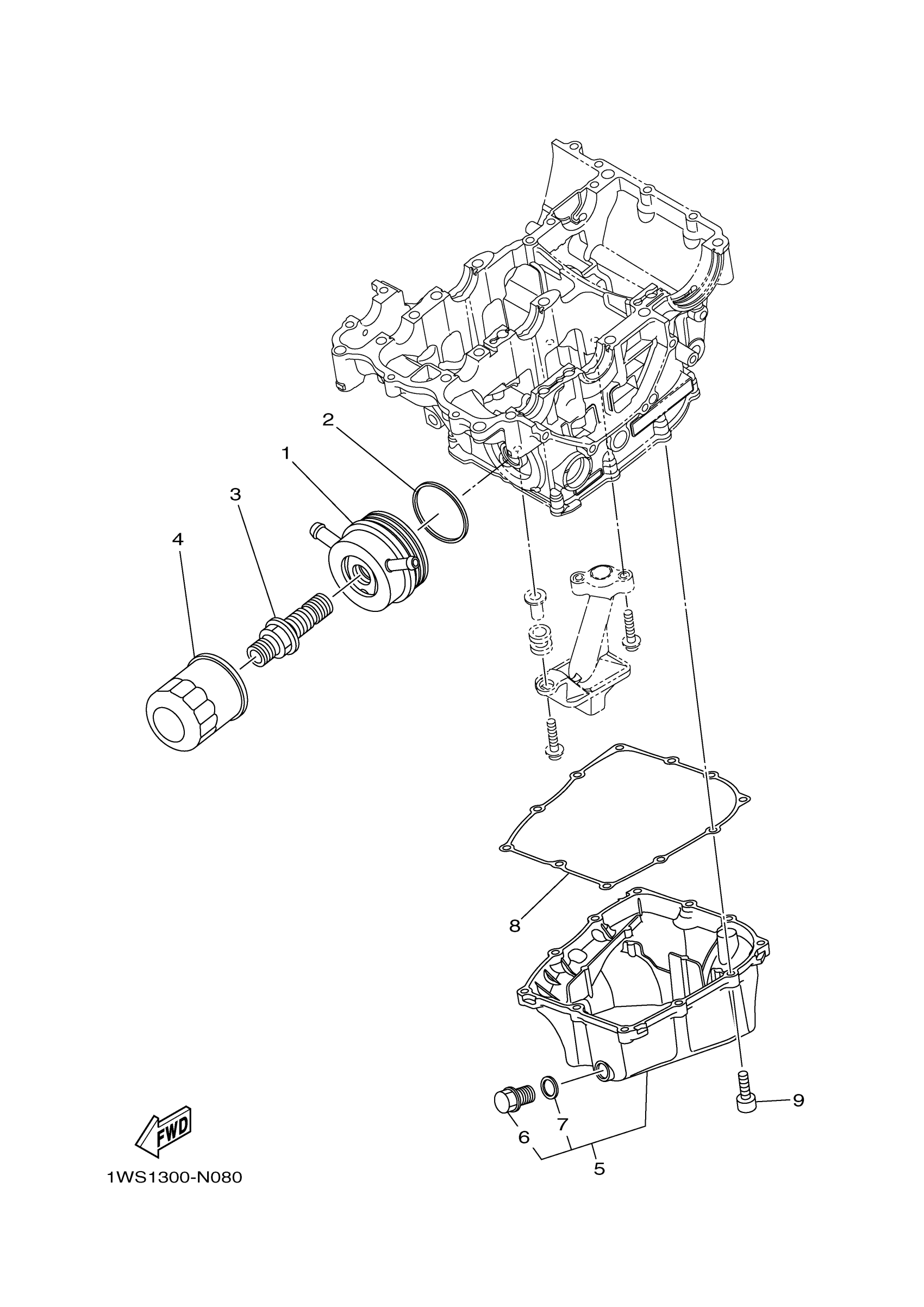

2021 Yamaha MT07 (MT07ML) OIL Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL COOLER ASSY

1WS-13470-00-00

—

$555.74

In stock

2

GASKET

1XD-13475-00-00

1

$8.68

In stock

3

BOLT, UNION

90401-20009-00

—

$28.82

In stock

4

ELEMENT ASSY, OIL

5GH-13440-90-00

—

$9.69

In stock

5

STRAINER COVER ASS

1WS-13400-10-00

1

$106.12

In stock

6

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

1

$2.65

In stock

7

GASKET

214-11198-01-00

1

$2.66

In stock

8

GASKET, STRAINER C

1WS-13414-00-00

1

$24.31

In stock

9

1

$3.82

In stock
