2021 Yamaha MT07 (MT07ML) Camshaft & Chain Diagram

← All diagrams

Find the part on the Camshaft & Chain diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

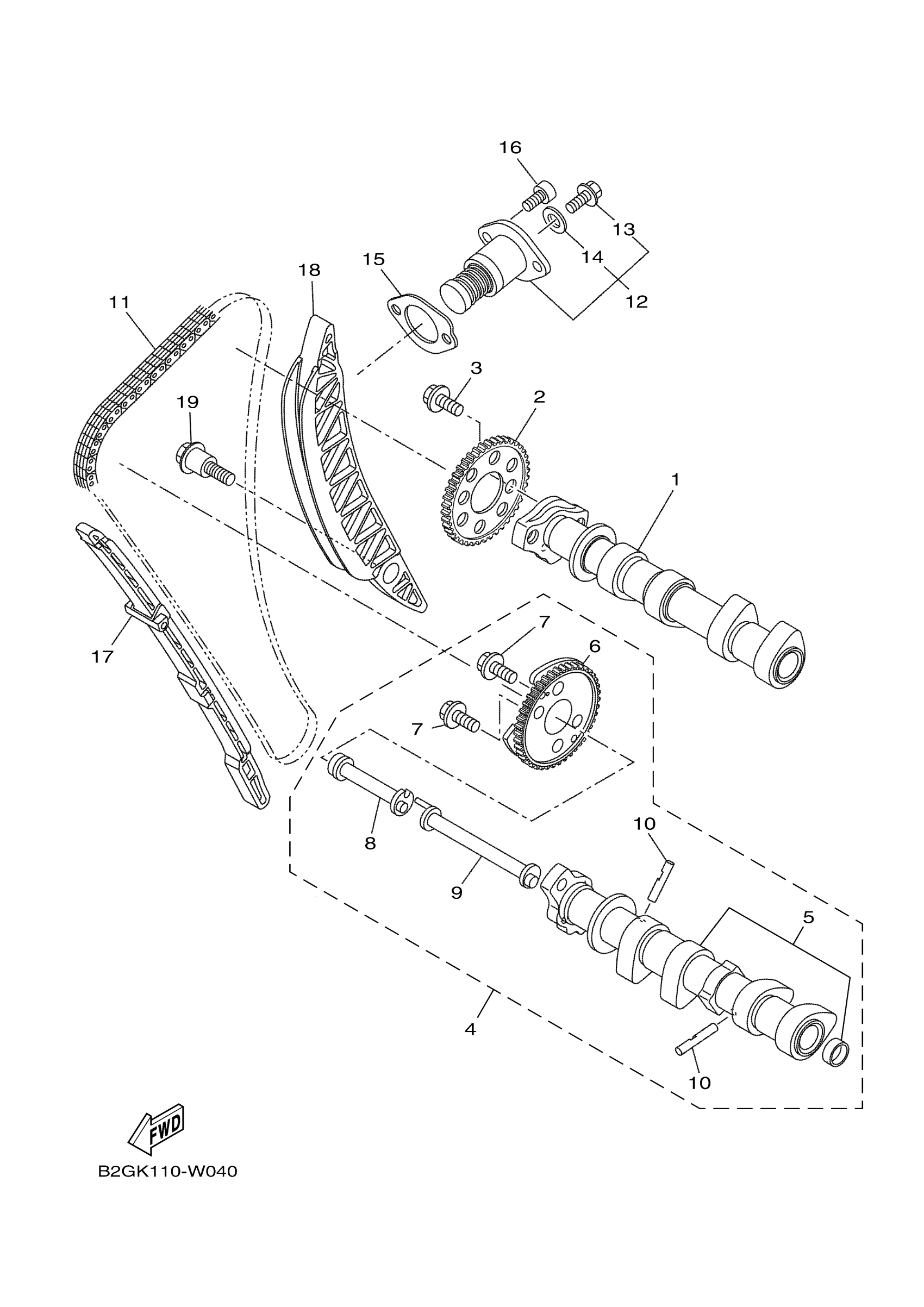

2021 Yamaha MT07 (MT07ML) Camshaft & Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT ASSY 1

1WS-12170-00-00

1

$213.91

In stock

2

SPROCKET, CAM CHAI

BAT-12176-00-00

1

$50.17

In stock

3

BOLT, FLANGE

90105-07006-00

1

$6.26

In stock

4

CAMSHAFT ASSY 2

1WS-12180-10-00

1

$476.63

In stock

5

CAMSHIFT SET

1WS-W1218-10-00

1

$183.95

In stock

6

DECOMPRESSION ASSY

1WS-12280-00-00

1

$190.11

In stock

7

BOLT, FLANGE

90105-07006-00

1

$6.26

In stock

8

SHAFT, TENSIONER

1WS-12247-00-00

1

$147.12

In stock

9

SHAFT 2

1WS-12257-00-00

1

$150.40

In stock

10

CAM, DECOMPRESSION

1PD-12288-00-00

—

$13.28

In stock

11

CHAIN

94591-61134-00

1

$38.59

In stock

12

TENSIONER ASSY, CAM CHAIN

1WS-12210-02-00

1

$170.27

In stock

13

BOLT

5EL-12228-00-00

1

$2.69

In stock

14

GASKET

5SL-12214-00-00

1

$6.38

In stock

15

GASKET, TENSIONER

1WS-12213-00-00

1

$3.92

In stock

16

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

—

$2.49

In stock

17

DAMPER, CHAIN 1

1WS-12251-00-00

—

$31.97

In stock

18

DAMPER, CHAIN 2

1WS-12252-00-00

—

$55.85

In stock

19

BOLT

90109-06297-00

—

$5.14

In stock
