2021 Yamaha MT07 (MT07ML) Crankshaft & Piston Diagram

← All diagrams

Find the part on the Crankshaft & Piston diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

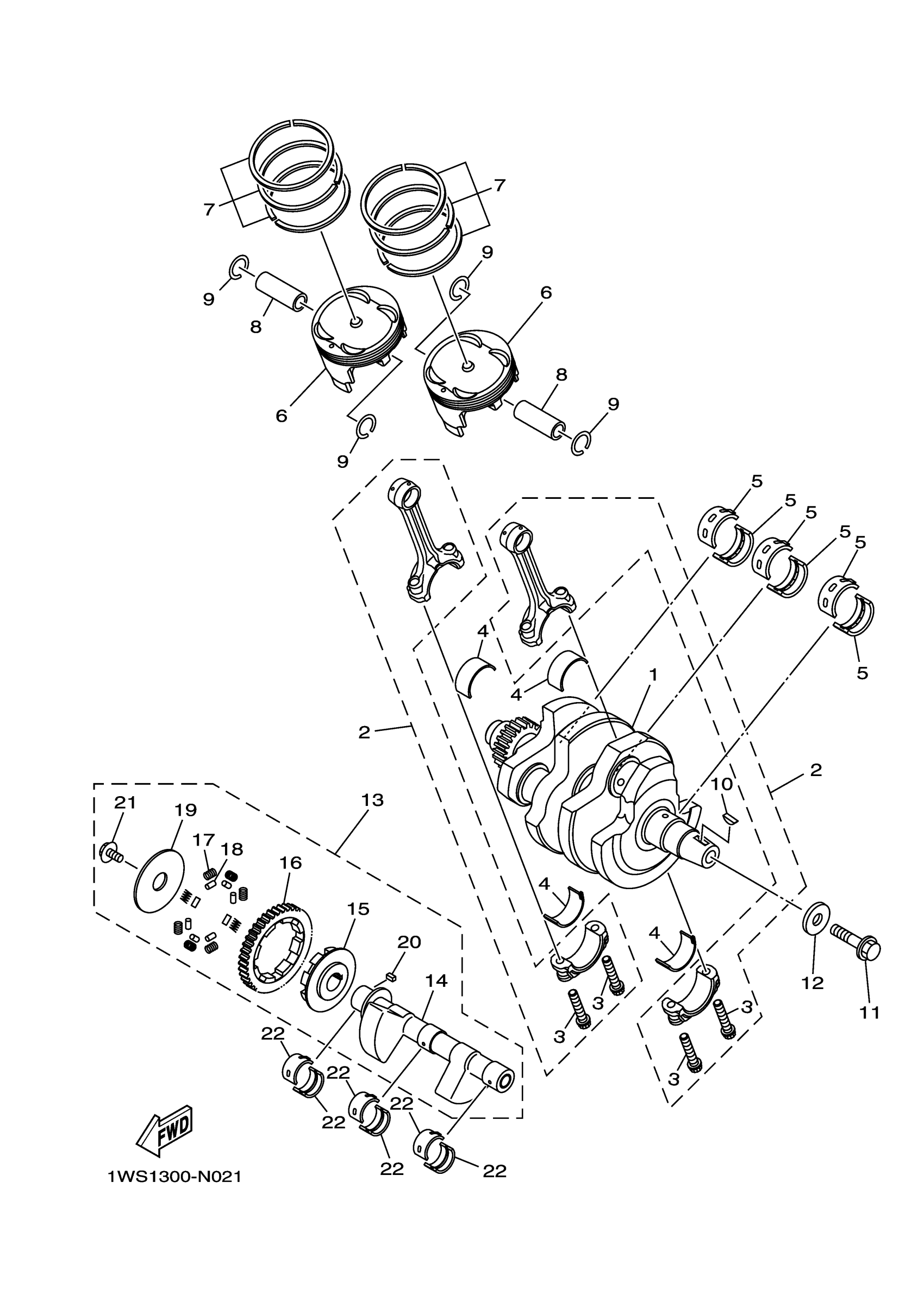

2021 Yamaha MT07 (MT07ML) Crankshaft & Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

1WS-11400-00-00

1

$945.34

In stock

2

CONNECTING ROD ASS

1WS-11650-00-00

1

$127.50

In stock

3

BOLT, CONNECTING ROD

1RC-11654-00-00

1

$2.88

In stock

4

1

$9.11

In stock

4

1

$9.11

In stock

4

1

$9.11

In stock

4

1

$9.15

In stock

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-00-00

1

$26.30

In stock

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-10-00

1

$26.44

In stock

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-20-00

1

$26.44

In stock

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-A0-00

1

$23.43

In stock

5

PLANE BEARING, CRANKSHAFT 1

3GM-11416-B0-00

1

$30.55

In stock

6

PISTON (STD)

1WS-11631-00-00

—

$101.37

In stock

7

PISTON RING SET (S

1WS-11603-01-00

—

$24.65

In stock

8

PIN, PISTON

1WS-11633-00-00

1

$17.12

In stock

9

CIRCLIP (2F1)

93450-19052-00

—

$5.85

In stock

10

KEY, WOODRUFF (26H)

90280-05029-00

—

$9.23

In stock

11

BOLT, WASHER BASED

90105-126A8-00

—

$12.03

In stock

12

WASHER, PLATE

90201-12008-00

—

$11.15

In stock

13

BALANCER ASSY

1WS-11500-00-00

—

$354.52

In stock

14

WEIGHT 1

1WS-11454-00-00

—

$227.09

In stock

15

BOSS, BUFFER

1WS-11496-00-00

—

$50.22

In stock

16

GEAR, BALANCE WEIG

1WS-11531-00-00

—

$86.37

In stock

17

SPRING, COMPRESSION (5Y1)

90501-22721-00

—

$8.02

In stock

18

PIN, DOWEL

93605-10090-00

—

$5.41

In stock

19

PLATE, ABSORBER

1WS-11533-00-00

—

$8.65

In stock

20

KEY, STRAIGHT

90282-04001-00

—

$4.85

In stock

21

BOLT, WASHER BASED(1TX)

90105-10445-00

—

$9.68

In stock

22

—

$16.97

In stock

22

—

$11.05

In stock

22

—

$11.85

In stock

22

—

$10.26

In stock

22

—

$9.46

In stock
