2021 Yamaha MT07 (MT07ML) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

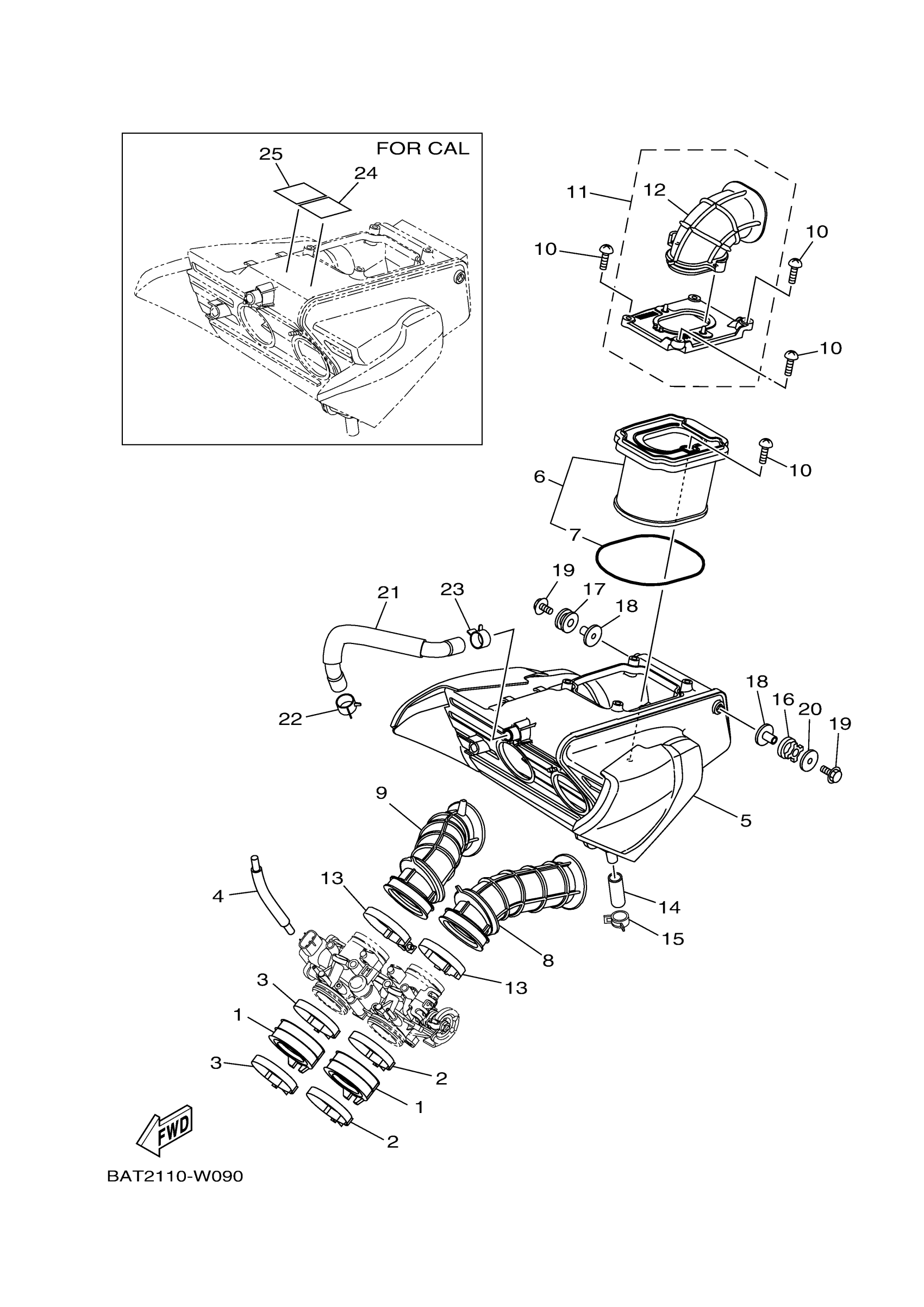

2021 Yamaha MT07 (MT07ML) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, INTAKE 1

1WS-13635-00-00

—

$21.25

In stock

2

HOSE CLAMP ASSY

90450-56011-00

1

$10.37

In stock

3

HOSE CLAMP ASSY

90450-56012-00

1

$28.98

In stock

4

HOSE, VACUUM SENSING 1

B4T-13542-00-00

—

$8.28

In stock

5

AIR CLEANER CASE A

1WS-14401-00-00

1

$256.48

In stock

6

ELEMENT ASSY, AIR

1WS-14450-00-00

1

$34.84

In stock

7

SEAL

1WS-14452-00-00

—

$6.72

In stock

8

FUNNEL, AIR

1WS-14469-01-00

1

$21.80

In stock

9

FUNNEL 2

1WS-1446C-01-00

1

$21.55

In stock

10

SCREW, ROUND TAPPING

90160-05013-00

1

$6.17

In stock

11

DUCT ASSY

B4T-14430-02-00

—

$42.51

In stock

12

DUCT

B4T-14437-01-00

—

$37.95

In stock

13

HOSE CLAMP ASSY

90450-56011-00

1

$10.37

In stock

14

PIPE, DRAIN

1WS-1443E-00-00

1

$3.94

In stock

15

CLIP(3YX)

90467-13133-00

1

$5.13

In stock

16

GROMMET

90480-15001-00

—

$6.78

In stock

17

GROMMET

90480-15014-00

—

$3.89

In stock

18

COLLAR

90387-06300-00

—

$6.43

In stock

19

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

20

WASHER, PLATE(1JK)

90201-064K6-00

—

$6.29

In stock

21

PIPE, BREATHER 1

1WS-11166-00-00

—

$21.00

In stock

22

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

23

CLIP

90467-160A2-00

—

$4.22

In stock
