2021 Yamaha MT07 (MT07ML) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

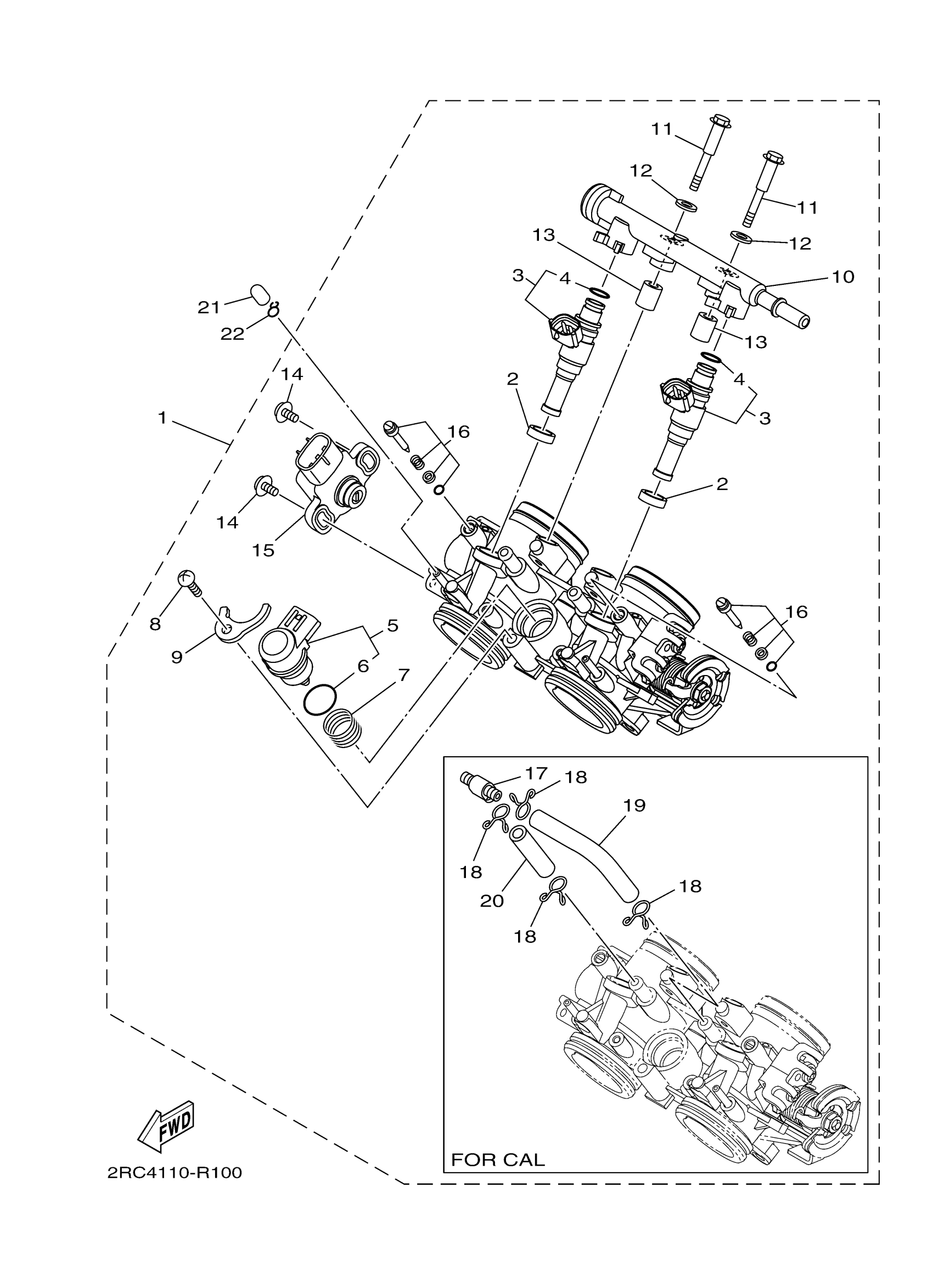

2021 Yamaha MT07 (MT07ML) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

1WS-13750-01-00

—

$700.99

In stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

3

INJECTOR

1WS-13761-00-00

—

$138.59

In stock

4

O-RING

5PS-14147-00-00

1

$10.95

In stock

5

STEPPING MOTOR

1WS-85801-02-00

1

$153.97

In stock

6

O-RING

54P-E416A-00-00

1

$6.43

In stock

7

SPRING, PLUNGER

1WS-14335-00-00

—

$9.52

In stock

8

SCREW, PAN

98517-06012-00

1

$3.14

In stock

9

PLATE

54P-14243-00-00

1

$6.05

In stock

10

PIPE

1WS-13938-00-00

—

$163.15

In stock

11

BOLT 1

8HG-13573-00-00

—

$9.78

In stock

12

WASHER

8GL-13571-00-00

1

$3.37

In stock

13

COLLAR

8HG-14534-00-00

1

$27.02

In stock

14

SCREW

8CC-14216-10-00

1

$7.12

In stock

15

THROTTLE SENSOR AS

3B4-85885-01-00

—

$63.34

In stock

16

PILOT SCREW SET

2C0-14105-00-00

—

$30.55

In stock

21

CAP

895-14169-00-00

—

$4.02

In stock

22

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock
