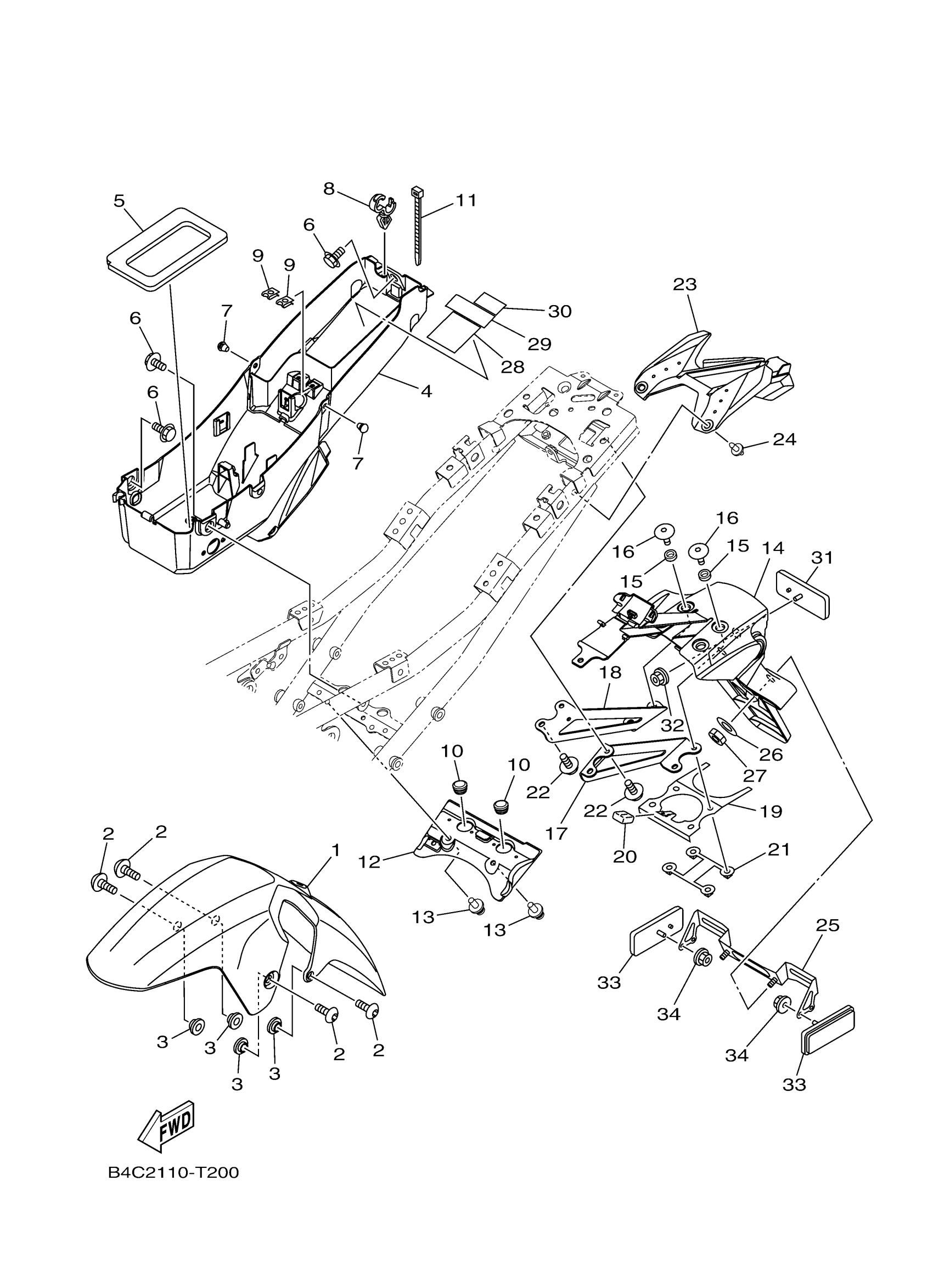

Find the part on the Fender diagram for your 2020 Yamaha MT07 (MT07LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Yamaha MT07 (MT07LL) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

B4C-21511-00-00

1

$35.05

In stock

2

BOLT,HEX. SOCKET BUTTON

90111-06151-00

1

$2.66

In stock

3

COLLAR

90387-06153-00

1
Out of stock

4

BOX, BATTERY 1

1WS-8212B-00-00

1

$27.14

In stock

5

DAMPER 2

1WS-21639-00-00

1

$5.57

In stock

6

BOLT

90109-06202-00

1

$2.46

In stock

7

PLUG(1NL)

90338-07180-00

1

$5.68

In stock

8

CLAMP

90464-18002-00

1

$6.92

In stock

9

NUT, SPRING(47R)

90183-04039-00

1

$5.89

In stock

10

GROMMET 285216390000

90480-14100-00

1

$6.45

In stock

11

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

12

GUARD, FLAP

1WS-21642-01-00

1

$5.49

In stock

13

RIVET

90269-06002-00

1
Out of stock

14

GUARD, MUD

1WS-21629-00-00

—

$64.98

In stock

15

COLLAR

90387-06106-00

1

$5.43

In stock

16

BOLT

90111-06061-00

—

$6.26

In stock

17

STAY 1

1WS-2164F-00-00

—

$19.26

In stock

18

STAY 2

1WS-2164G-00-00

—

$18.21

In stock

19

STAY, PLATE

1WS-21682-00-00

—

$12.97

In stock

20

DAMPER

1WS-21746-00-00

—

$2.74

In stock

21

BRACKET 6

1WS-2161G-00-00

—

$11.28

In stock

22

BOLT,WASHER BASED

90105-06206-00

—

$1.40

In stock

23

COVER, REAR FENDER

1WS-2163A-00-00

—

$8.09

In stock

24

RIVET

90269-07008-00

—

$2.55

In stock

25

BRACKET, LICENSE

2RC-84751-00-00

—

$28.78

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

29

LABEL, CAUTION

3JJ-28446-A2-00

—

$4.14

In stock

30

LABEL, CAUTION

3SA-24877-A0-00

1
Out of stock

31

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

32

NUT, S/L FLANGE

95607-05200-00

—

$6.86

In stock

33

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

34

NUT, FLANGE

95702-05500-00

—

$0.74

In stock
