2020 Yamaha MT07 (MT07LL) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2020 Yamaha MT07 (MT07LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

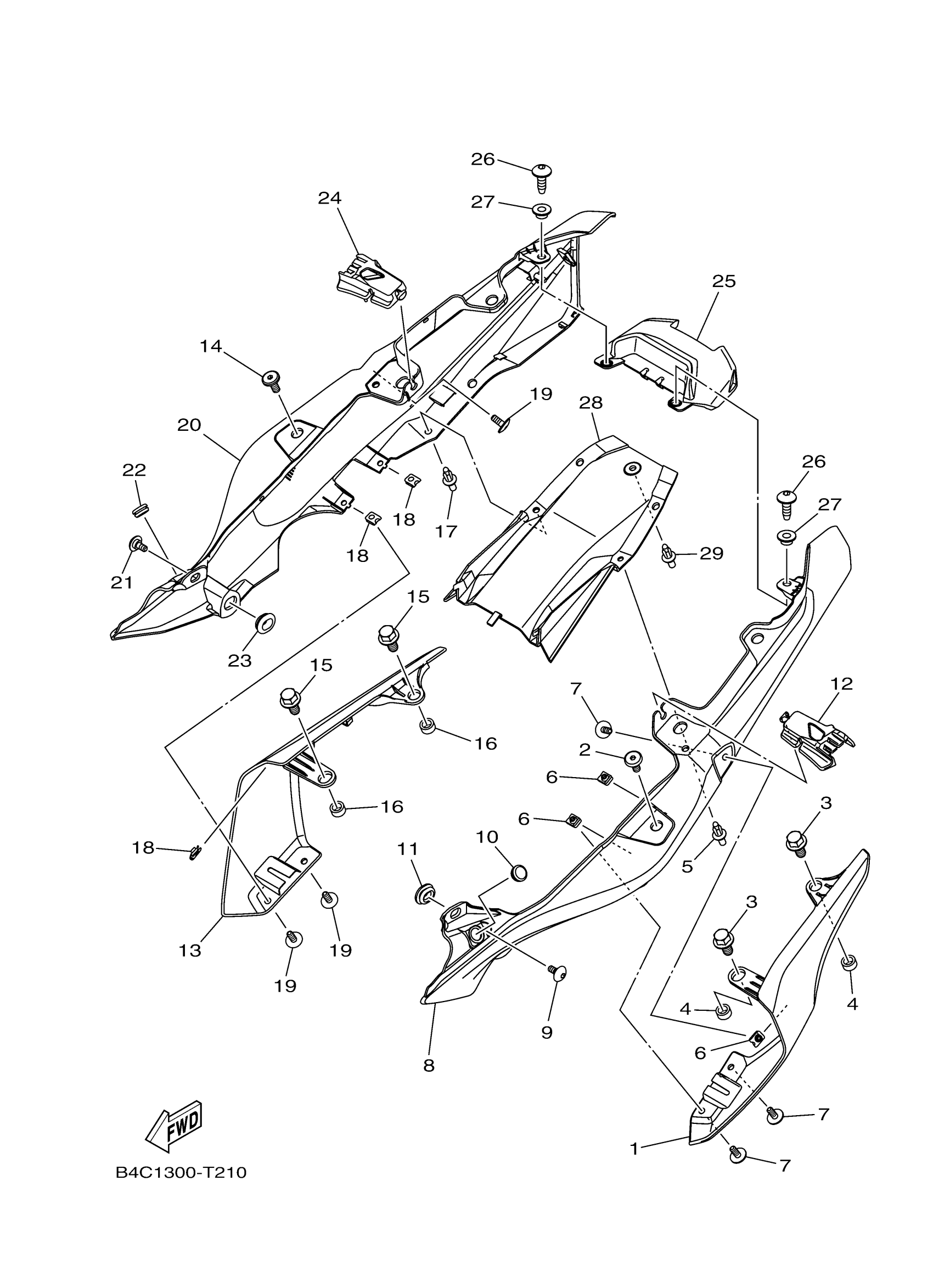

2020 Yamaha MT07 (MT07LL) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

B4C-21711-00-P1

—

$61.77

In stock

2

BOLT

90109-06259-00

1

$2.72

In stock

3

BOLT, WASHER BASED

90105-08021-00

1

$6.26

In stock

4

COLLAR

90387-08088-00

1

$1.49

In stock

5

RIVET

90269-06008-00

1

$7.40

In stock

6

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

7

BOLT

90111-05003-00

1

$6.17

In stock

8

COVER, SIDE 5

B4C-2171E-00-00

1

$59.39

In stock

9

BOLT

90111-05011-00

1

$4.37

In stock

10

GROMMET 285216390000

90480-14100-00

1

$6.45

In stock

11

GROMMET(4BH)

90480-01559-00

1

$4.80

In stock

12

MOLE, SIDE COVER 1

B4C-2171L-00-00

—

$6.98

In stock

13

COVER, SIDE 2

B4C-21721-00-P1

1

$62.86

In stock

14

BOLT

90109-06259-00

1

$2.72

In stock

15

BOLT, WASHER BASED

90105-08021-00

1

$6.26

In stock

16

COLLAR

90387-08088-00

1

$1.49

In stock

17

RIVET

90269-06008-00

1

$7.40

In stock

18

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

19

BOLT

90111-05003-00

1

$6.17

In stock

20

COVER, SIDE 6

B4C-2171X-00-00

—

$59.39

In stock

21

BOLT

90111-05011-00

1

$4.37

In stock

22

GROMMET 285216390000

90480-14100-00

1

$6.45

In stock

23

GROMMET(4BH)

90480-01559-00

1

$4.80

In stock

24

MOLE, SIDE COVER 2

B4C-2171M-00-00

—

$6.92

In stock

25

COVER, TAILLIGHT

B4C-2172X-00-00

—

$17.82

In stock

26

SCREW, TAPPING(4TX)

90167-05076-00

—

$1.78

In stock

27

COLLAR

90387-05021-00

—

$6.26

In stock

28

COVER, REAR FENDER

1WS-21651-00-00

—

$143.43

In stock

29

RIVET

90269-06008-00

1

$7.40

In stock
