2020 Yamaha MT07 (MT07LL) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2020 Yamaha MT07 (MT07LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

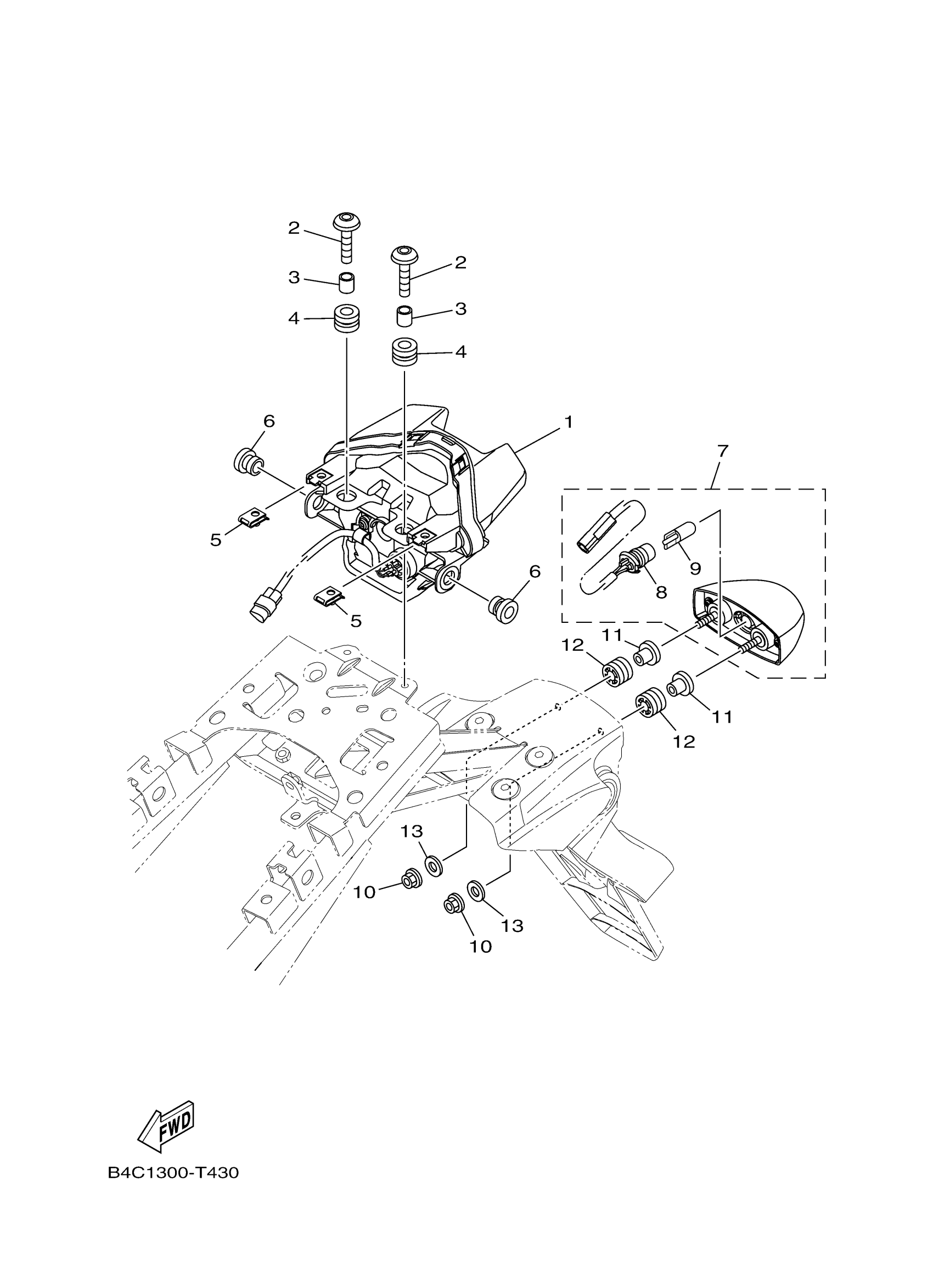

2020 Yamaha MT07 (MT07LL) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

B4C-84710-02-00

1
Out of stock

2

BOLT,HEX. SOCKET BUTTON

90111-06137-00

1

$4.78

In stock

3

COLLAR

90387-067V1-00

1
Out of stock

4

GROMMET

90480-13001-00

1

$0.75

In stock

5

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

6

GROMMET

90480-10016-00

1

$3.03

In stock

7

LICENCE LIGHT ASSY

1WS-84740-00-00

—

$32.05

In stock

8

CORD, LICENCE LIGH

1WS-84547-00-00

—

$20.48

In stock

9

BULB

1TP-84347-00-00

1

$5.93

In stock

10

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

11

COLLAR

90387-05042-00

1

$4.77

In stock

12

GROMMET

90480-12023-00

1

$6.25

In stock

13

WASHER PLATE (664)

90201-05556-00

—

$6.98

In stock
