2025 Yamaha MT03 (MT03SL) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

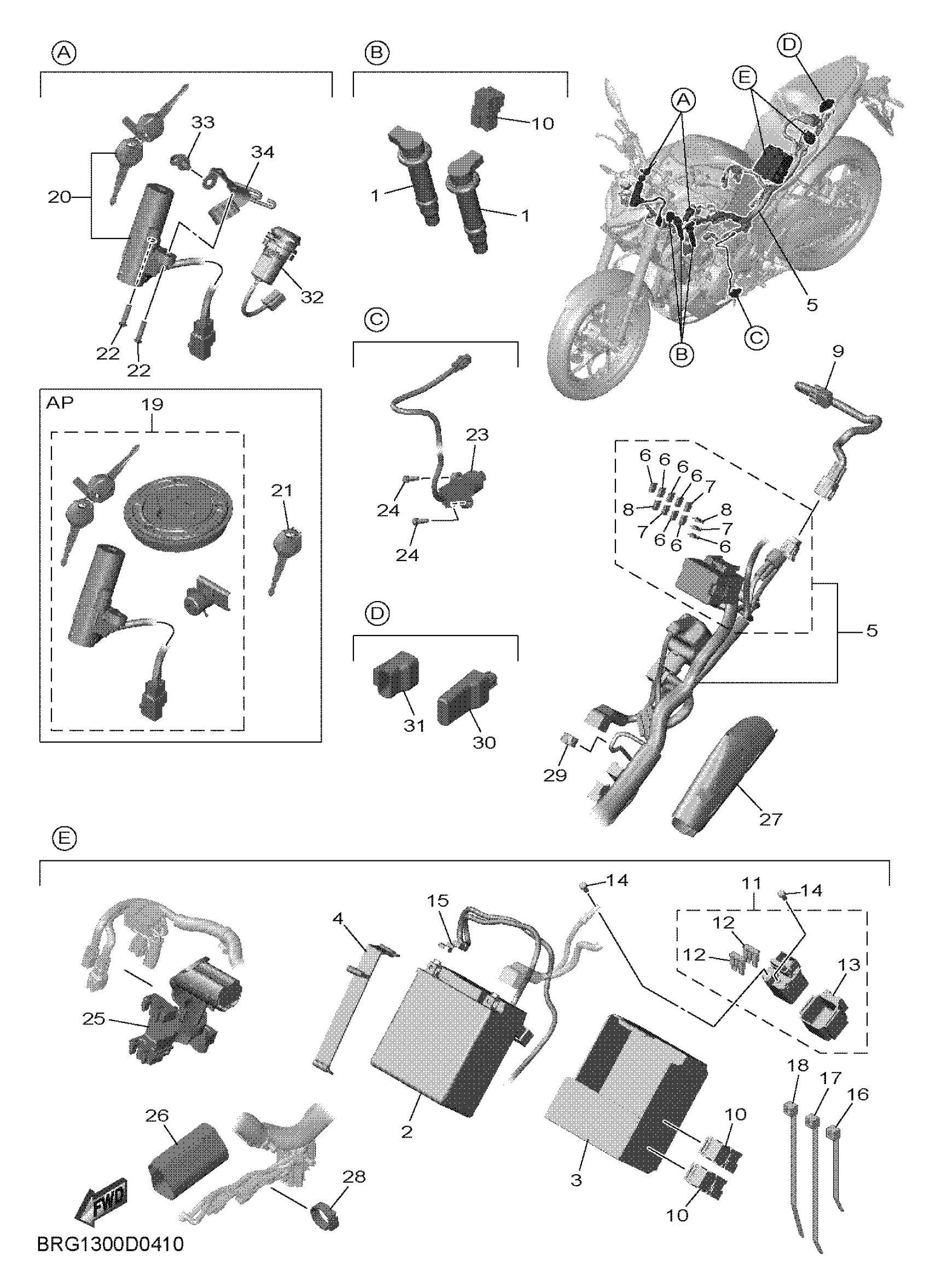

2025 Yamaha MT03 (MT03SL) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

B1X-82310-00-00

—

$55.33

In stock

2

BATTERY ASSY (GS GTZ8V)

1WD-H2100-01-00

1
Out of stock

3

PAD, BATTERY

1WD-H2121-00-00

1

$9.94

In stock

4

BAND, BATTERY

BDJ-H2131-00-00

—

$2.03

In stock

5

WIRE HARNESS ASSY

BRG-H2590-20-00

—
Out of stock

6

FUSE

BRA-H2151-00-00

1

$2.28

In stock

7

FUSE

BRA-H2151-10-00

—

$2.28

In stock

8

FUSE

BRA-H2151-30-00

—

$2.28

In stock

9

WIRE, SUB LEAD

BRA-H2509-00-00

—

$13.06

In stock

10

RELAY ASSY

1WD-H1950-00-00

1

$46.72

In stock

11

STARTER RELAY ASSY

1WD-H1940-00-00

1

$30.09

In stock

12

FUSE

1WD-H2151-01-00

1

$0.68

In stock

13

BAND

1WD-H2155-00-00

—

$1.97

In stock

14

BOLT

91312-05008-00

1

$5.18

In stock

15

WIRE, MINUS LEAD

BRA-H2116-00-00

—

$30.62

In stock

16

BAND

1UA-82591-00-00

—
Out of stock

17

CLAMP

90464-70800-00

—

$0.85

In stock

18

CLAMP

90464-36005-00

1

$0.88

In stock

19

MAIN SW. STRG. LOC

BRG-XH250-00-00

—
Out of stock

20

MAIN SWITCH STEERI

BRG-H2501-00-00

—
Out of stock

21

BLANK KEY

1WD-H2511-09-00

—

$15.43

In stock

22

BOLT

90109-06282-00

—

$3.40

In stock

23

SWITCH, SIDE STAND

BRA-H2566-00-00

—

$32.08

In stock

24

BOLT, SOCKET

91317-05018-00

—
Out of stock

25

COVER, CONNECTER

BRA-H1662-00-00

—

$13.63

In stock

26

BAND

1WD-H2591-00-00

—

$2.46

In stock

27

BAND

BRA-F179E-00-00

—

$4.86

In stock

28

CLAMP

90464-26001-00

—

$1.62

In stock

29

CLAMP

90464-13227-00

—

$6.92

In stock

30

COMMUNICATION CONT

B6Y-H5810-11-00

1
Out of stock

31

BAND

BDJ-H2591-00-00

—

$1.48

In stock

32

USB ASSY

BRG-H21E0-01-00

—
Out of stock

33

CLAMP

90464-30009-00

1

$3.30

In stock

34

STAY 3

B9T-F8358-00-00

—

$9.89

In stock
