2025 Yamaha MT03 (MT03SL) Steering Handle & Cable Diagram

← All diagrams

Find the part on the Steering Handle & Cable diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

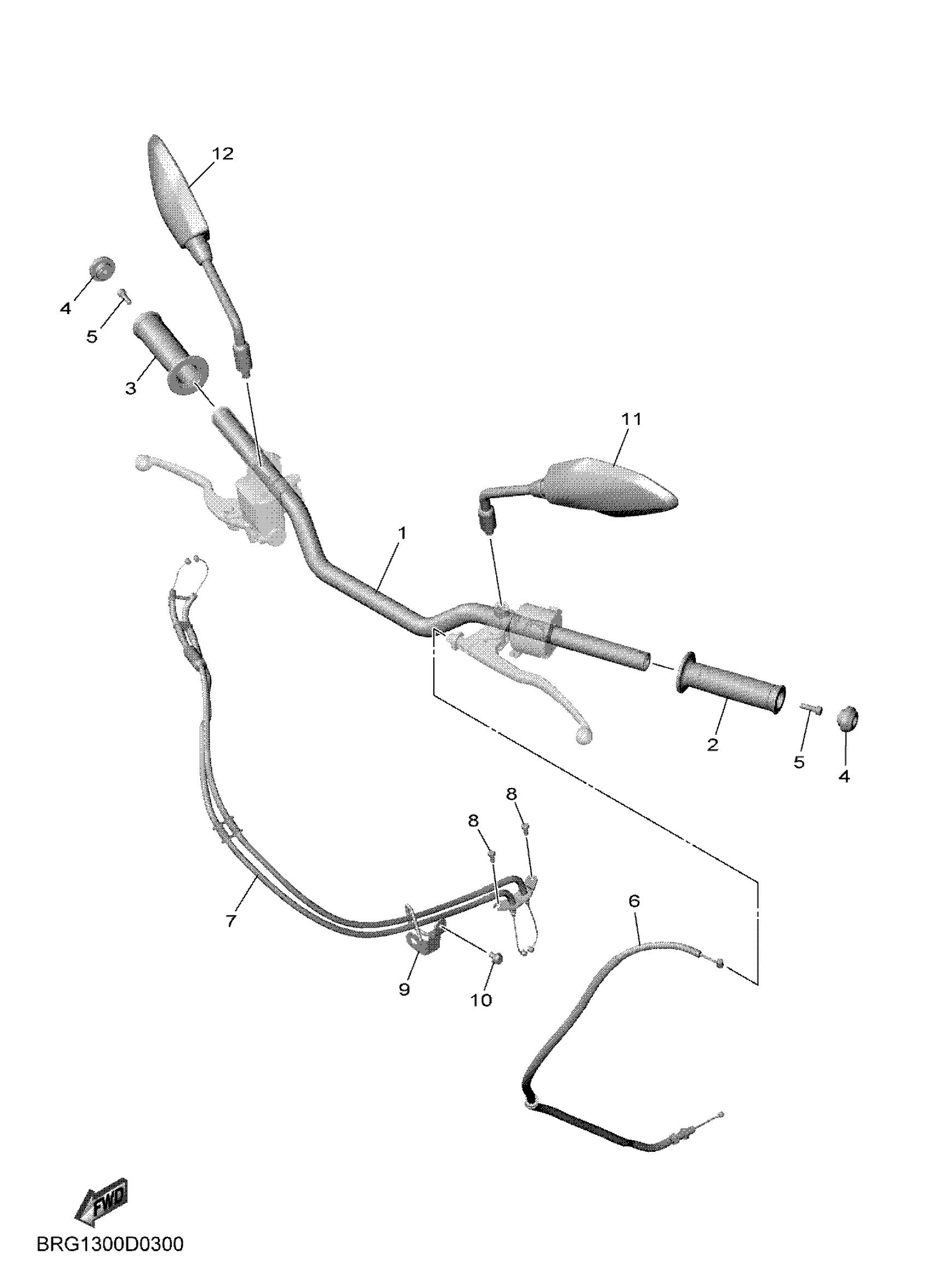

2025 Yamaha MT03 (MT03SL) Steering Handle & Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

B9T-F6111-00-00

1
Out of stock

2

GRIP

2DP-F6241-00-00

1
Out of stock

3

GRIP ASSY

BRG-F6240-00-00

1
Out of stock

4

END, GRIP

1WD-F6246-00-00

1
Out of stock

5

BOLT,SOCKET

91317-06020-00

—
Out of stock

6

WIRE, CLUTCH

B9T-F6335-00-00

1
Out of stock

7

THROTTLE CABLE ASS

BGJ-F6301-03-00

—
Out of stock

8

BOLT

91312-05010-00

1
Out of stock

9

GUIDE, WIRE

BRG-F6315-00-00

—
Out of stock

10

BLOT, FLANGE DEEP RECESS

95D32-06010-00

1
Out of stock

11

REAR VIEW MIRROR A

BGJ-F6280-00-00

—
Out of stock

12

REAR VIEW MIRROR A

BGJ-F6290-00-00

—
Out of stock
