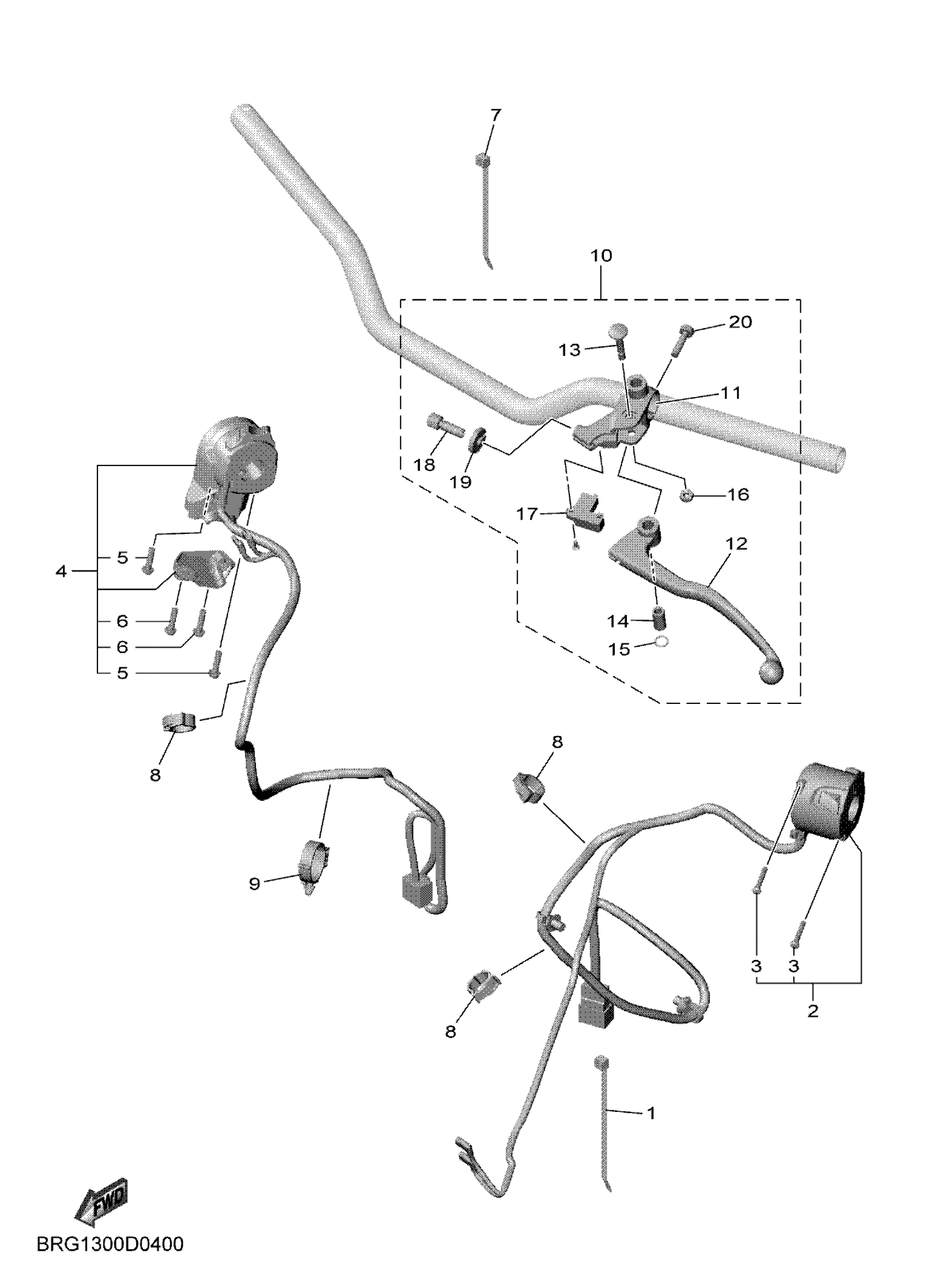

Yamaha MT03SL (MT03) BRG5 2025 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

BAND, SWITCH CORD

25G-83936-01-00

$3.85

2

SWITCH, HANDLE 4

BRG-H3972-00-00

Unavailable

3

BOLT

91347-04025-00

Unavailable

4

SWITCH, HANDLE 2

BGJ-H3975-01-00

Unavailable

5

SCREW, PAN

98507-04030-00

$1.64

6

SCREW, PAN HEAD WITH WASHER

97607-05220-00

$2.30

7

BAND, SWITCH CORD

3RS-H3936-00-00

$0.67

8

CLAMP

90464-16003-00

$6.00

9

CLAMP

90464-30001-00

$6.12

10

LEVER HOLDER ASSY

BRA-H2910-00-00

Unavailable

11

HOLDER, LEVER 1

1WD-H2911-00-00

$14.44

12

LEVER 1

BRA-H3912-00-00

$16.59

13

BOLT, LEVER

31A-83945-00-00

$4.37

14

COLLAR, LEVER 1

31A-83913-00-00

$18.17

15

O-RING (260)

93210-10118-00

$5.47

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

SWITCH

5BP-H2917-00-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

BOLT, WITH WASHER

97507-06525-00

Unavailable
