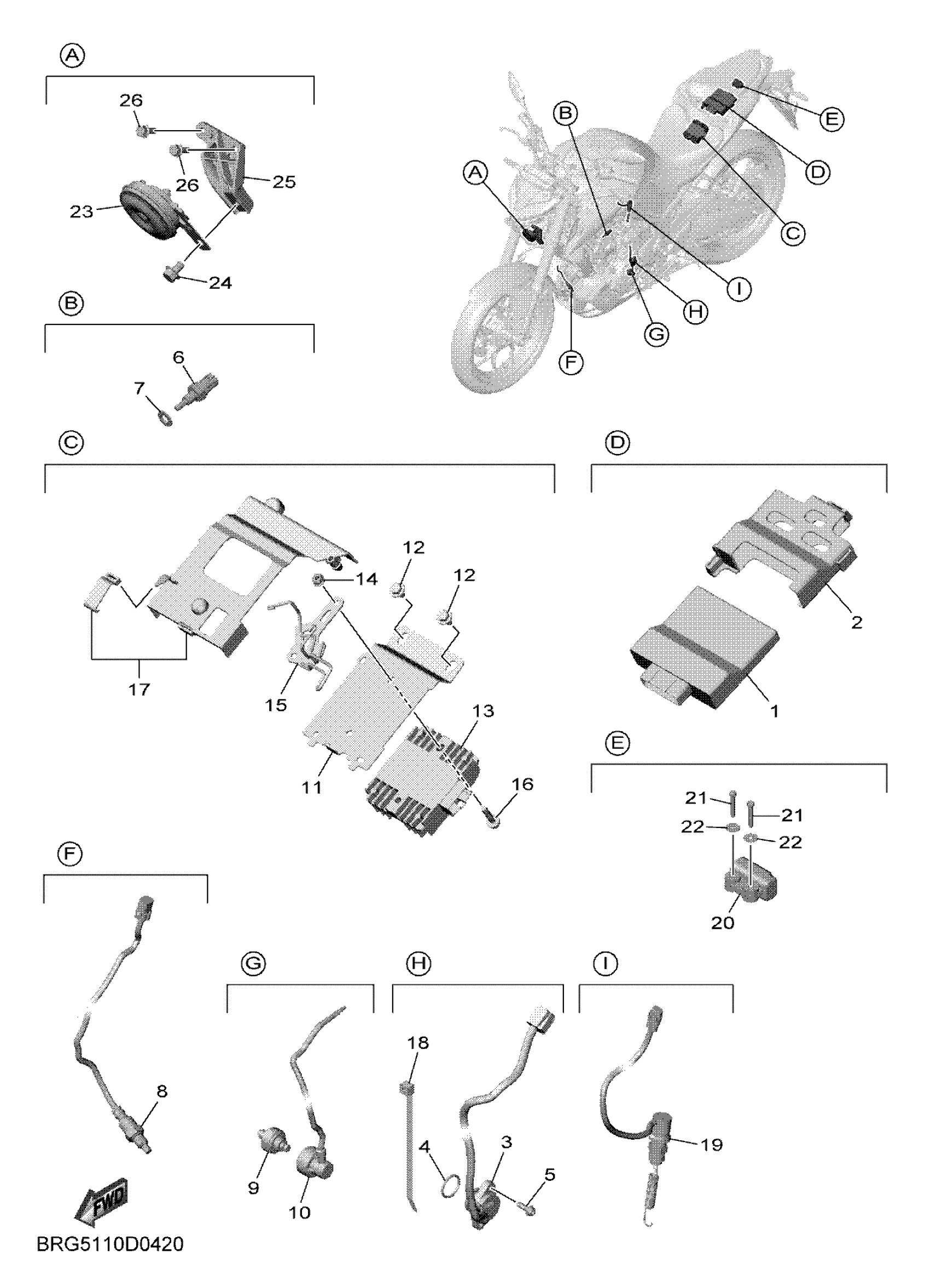

Find the part on the Electrical 2 diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Yamaha MT03 (MT03SL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE CONTROL UNI

BRA-H591A-20-00

1

$423.31

In stock

2

BAND

BRA-H5546-00-00

—

$5.60

In stock

3

NEUTRAL SWITCH ASS

BRA-H2540-00-00

—

$28.85

In stock

4

O-RING (1S71)

93210-21801-00

1

$1.54

In stock

5

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

1

$6.28

In stock

6

THERMO UNIT

B7J-H3591-00-00

1

$13.86

In stock

7

GASKET

90430-10804-00

1

$4.32

In stock

8

SENSOR, OXYGEN

B1X-H592A-00-00

1

$91.98

In stock

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

1

$60.97

In stock

10

LEAD WIRE ASSY

1WD-H1315-02-00

1

$3.92

In stock

11

PLATE, RECTIFIER F

BRA-H1975-00-00

—

$10.43

In stock

12

BOLT, WITH WASHER(55K)

90119-06114-00

1

$6.69

In stock

13

RECTIFIER & REGULATOR ASSY

1WD-H1960-00-00

1

$94.24

In stock

14

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

15

STAY, REGULATOR

BRA-H7208-00-00

—

$6.31

In stock

16

BOLT, FLANGE DEEP RECESS

95D37-06025-00

—

$0.89

In stock

17

COVER, RECTIFIER

BRA-H1972-00-00

—

$10.14

In stock

18

CLAMP (5MX1)

90464-22800-00

—

$0.55

In stock

19

STOP SWITCH ASSY

BRA-H2530-00-00

—
Out of stock

20

SENSOR, LEAN ANGLE

1WD-H2576-02-00

—

$39.54

In stock

21

BOLT

91312-04025-00

—
Out of stock

22

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

23

HORN

B9T-H3371-01-00

—

$30.31

In stock

24

BOLT, FLANGE DEEP

95D07-08012-00

—

$0.43

In stock

25

STAY, HORN

1WD-H3378-00-00

1

$23.37

In stock

26

BOLT, FLANGE DEEP RECESS

95D07-06016-00

—

$0.69

In stock
