2023 Yamaha MT-03 (MT03PL) Meter Diagram

← All diagrams

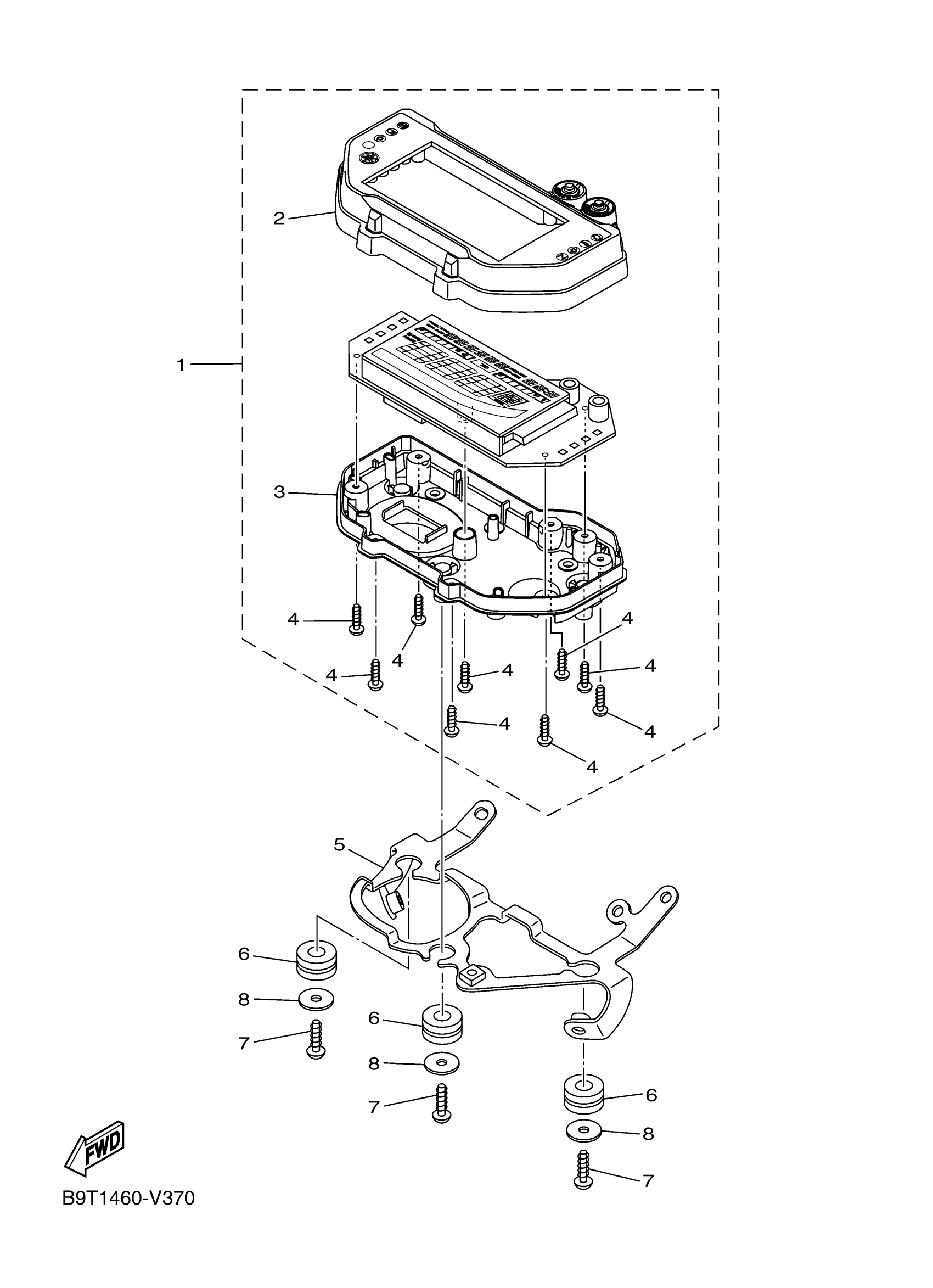

Find the part on the Meter diagram for your 2023 Yamaha MT-03 (MT03PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT-03 (MT03PL) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

B5W-H3500-13-00

1
Out of stock

2

CASE, SPEEDOMETER

B5L-H3571-11-00

—

$26.12

In stock

3

CASE, SPEEDOMETER

BS7-H3572-01-00

1

$9.63

In stock

4

SCREW, TAPPING

97707-30020-00

1

$0.55

In stock

5

BRACKET, METER

B9T-H3519-00-00

1

$16.62

In stock

6

GROMET (3X3)

90480-14229-00

1

$6.17

In stock

7

SCREW, TAPPING

97702-50016-00

1

$1.98

In stock

8

WASHER, PLATE

90201-05827-00

1

$2.19

In stock
