2023 Yamaha MT-03 (MT03PL) Electrical 1 Diagram

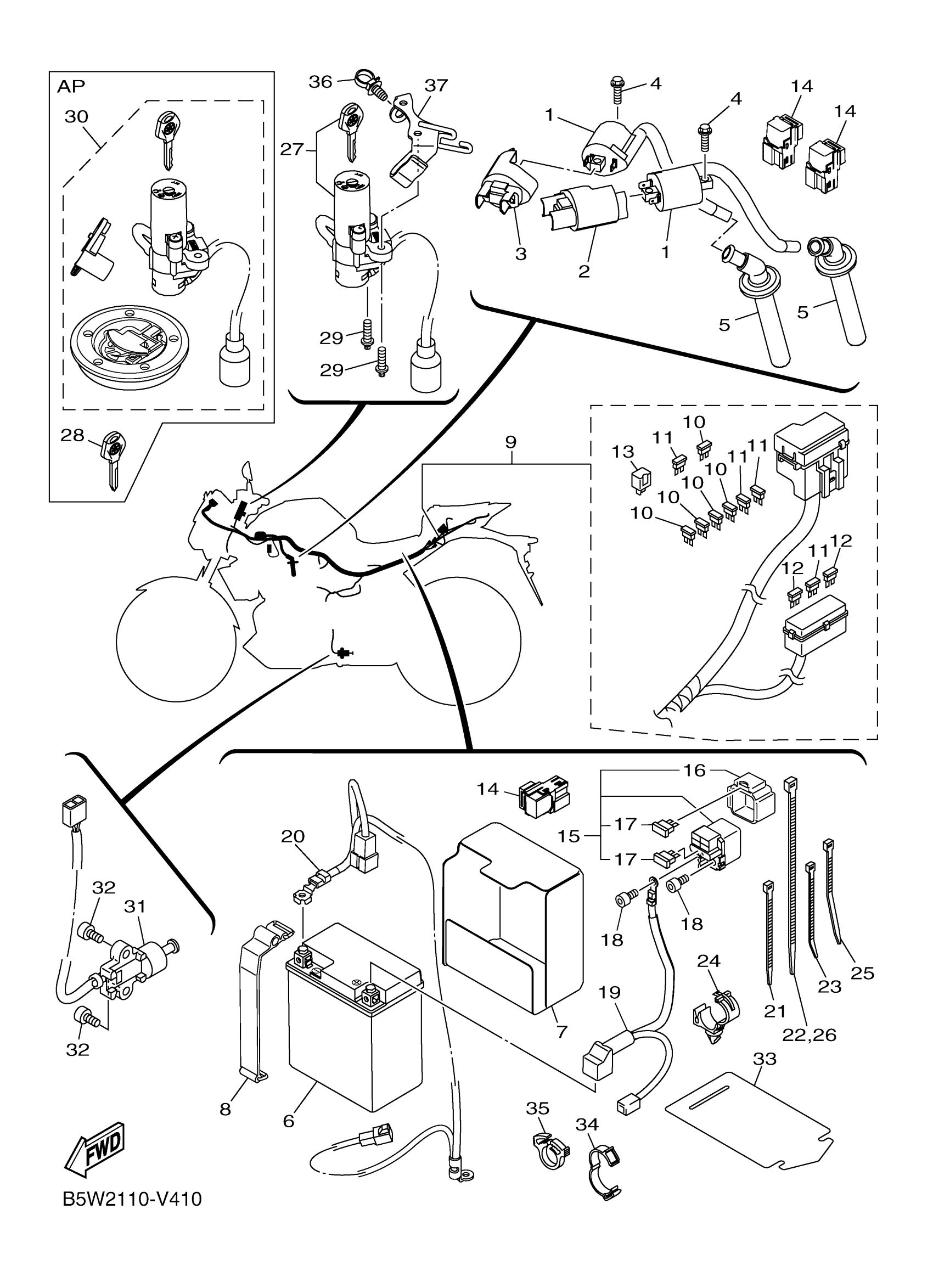

Find the part on the Electrical 1 diagram for your 2023 Yamaha MT-03 (MT03PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
IGNITION COIL ASSY
1WD-H2310-02-00
1
Out of stock
10
. FUSE (75A BL)
1WD-H2151-20-00
1
Out of stock
13
DIODE ASSY
4B4-H1980-00-00
1
Out of stock
21
BAND
1UA-82591-00-00
—
Out of stock
31
SWITCH, SIDE STAND
1WD-H2566-02-00
—
Out of stock
32
BOLT, SOCKET
91317-05018-00
—
Out of stock
