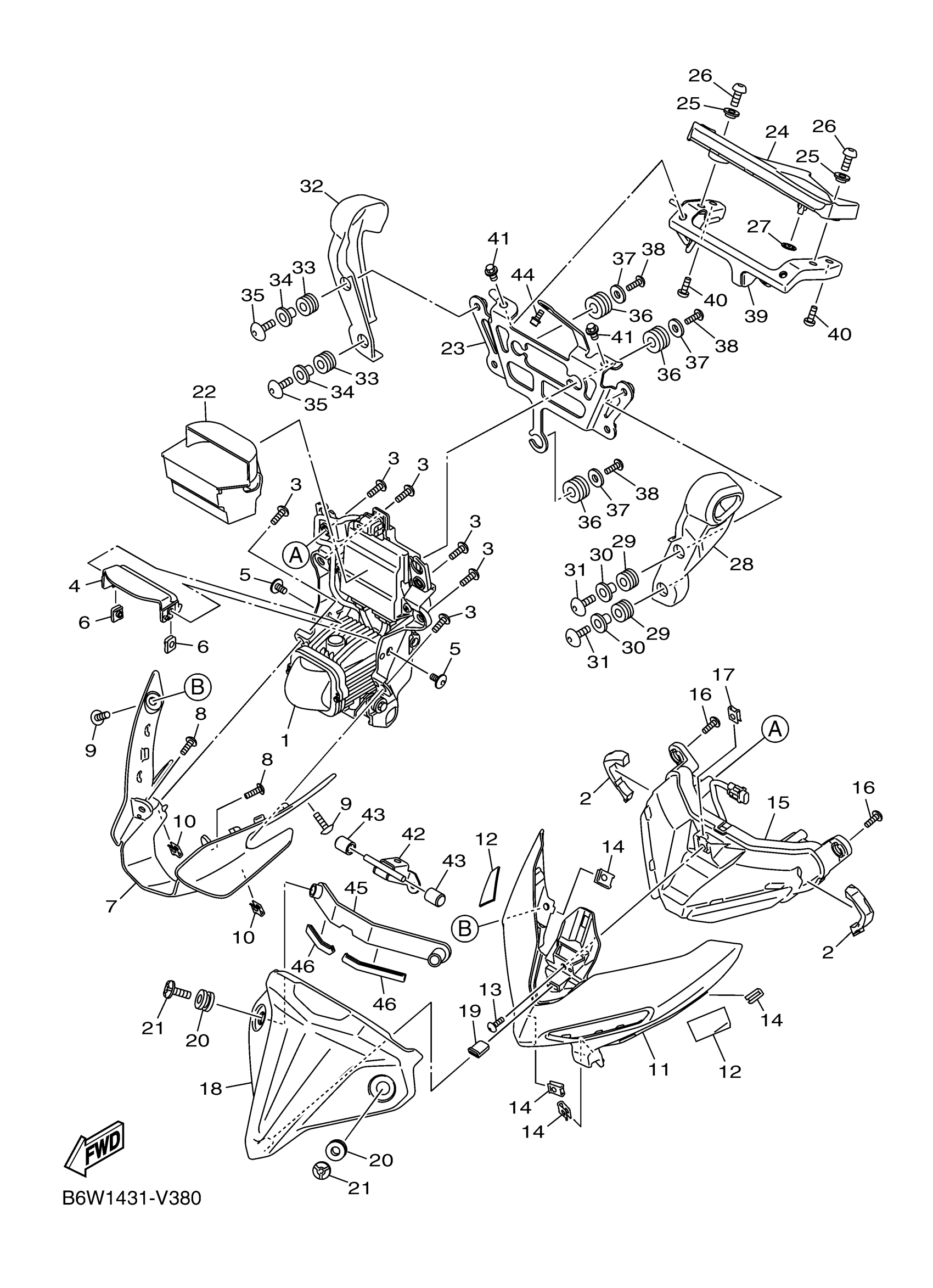

Find the part on the Headlight diagram for your 2023 Yamaha MT-03 (MT03PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha MT-03 (MT03PL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

B9T-H4300-00-00

1

$1,160.97

In stock

2

DAMPER, PLATE

90520-10834-00

1

$0.57

In stock

3

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

4

STAY,HEAD LIGHT IN

B9T-H411E-00-00

1

$7.57

In stock

5

BOLT

90111-05003-00

1

$6.17

In stock

6

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

7

COVER, HEADLIGHT

B9T-H4144-00-00

1

$11.47

In stock

8

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

9

SCREW, ROUND TAPPING

90160-05009-00

1

$0.42

In stock

10

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

11

STAY, HEAD LIGHT 1

B9T-F831V-00-P3

1

$26.13

In stock

12

DAMPER, PLATE

90520-20819-00

1

$0.60

In stock

13

SCREW, ROUND TAPPING

90160-05009-00

1

$0.42

In stock

14

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

15

POSITION LIGHT ASS

B9T-H4410-00-00

1

$190.07

In stock

16

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

17

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

18

COVER 1

B9T-H4369-00-P1

—

$22.96

In stock

19

DAMPER, SIDE COVER

1PA-F411J-00-00

—

$0.55

In stock

20

GROMMET (3P91)

90480-12808-00

—

$2.19

In stock

21

BOLT,HEX. SOCKET B

90111-06870-00

—

$4.31

In stock

22

COVER, SOCKET

B9T-H4196-00-00

—

$8.75

In stock

23

STAY 2

B9T-F8357-00-00

—

$15.43

In stock

24

MOLE 1

B9T-F8345-00-00

—

$7.51

In stock

25

COLLAR

90387-06242-00

1

$5.00

In stock

26

BOLT

90111-06029-00

—

$4.71

In stock

27

NUT, SPRING (6E5)

90183-05M02-00

—

$0.42

In stock

28

COVER, FLASHER 1

B9T-F83D3-00-00

—

$2.92

In stock

29

GROMMET (3P91)

90480-12808-00

—

$2.19

In stock

30

COLLAR

90387-06899-00

—

$2.46

In stock

31

BOLT,HEX. SOCKET BUTTON

90111-06086-00

—

$4.97

In stock

32

COVER, FLASHER 2

B9T-F83D4-00-00

—

$7.51

In stock

33

GROMMET (3P91)

90480-12808-00

—

$2.19

In stock

34

COLLAR

90387-06899-00

—

$2.46

In stock

35

BOLT,HEX. SOCKET BUTTON

90111-06086-00

—

$4.97

In stock

36

GROMMET

90480-14004-00

—

$7.49

In stock

37

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

38

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

39

STAY 1

B9T-F8356-00-00

—

$14.64

In stock

40

BOLT, BUTTON HEAD

92012-06014-00

—
Out of stock

41

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

42

BRACKET 1

B08-F334G-00-00

—

$9.98

In stock

43

DAMPER

2SN-H4527-00-00

—

$2.48

In stock

44

BOLT, HEXAGON SOCK

90110-06865-00

—

$0.40

In stock

45

BRACKET

B9T-H454L-00-00

—

$8.75

In stock

46

MOLD, FUEL TANK

B3M-F4188-00-00

—

$1.42

In stock
