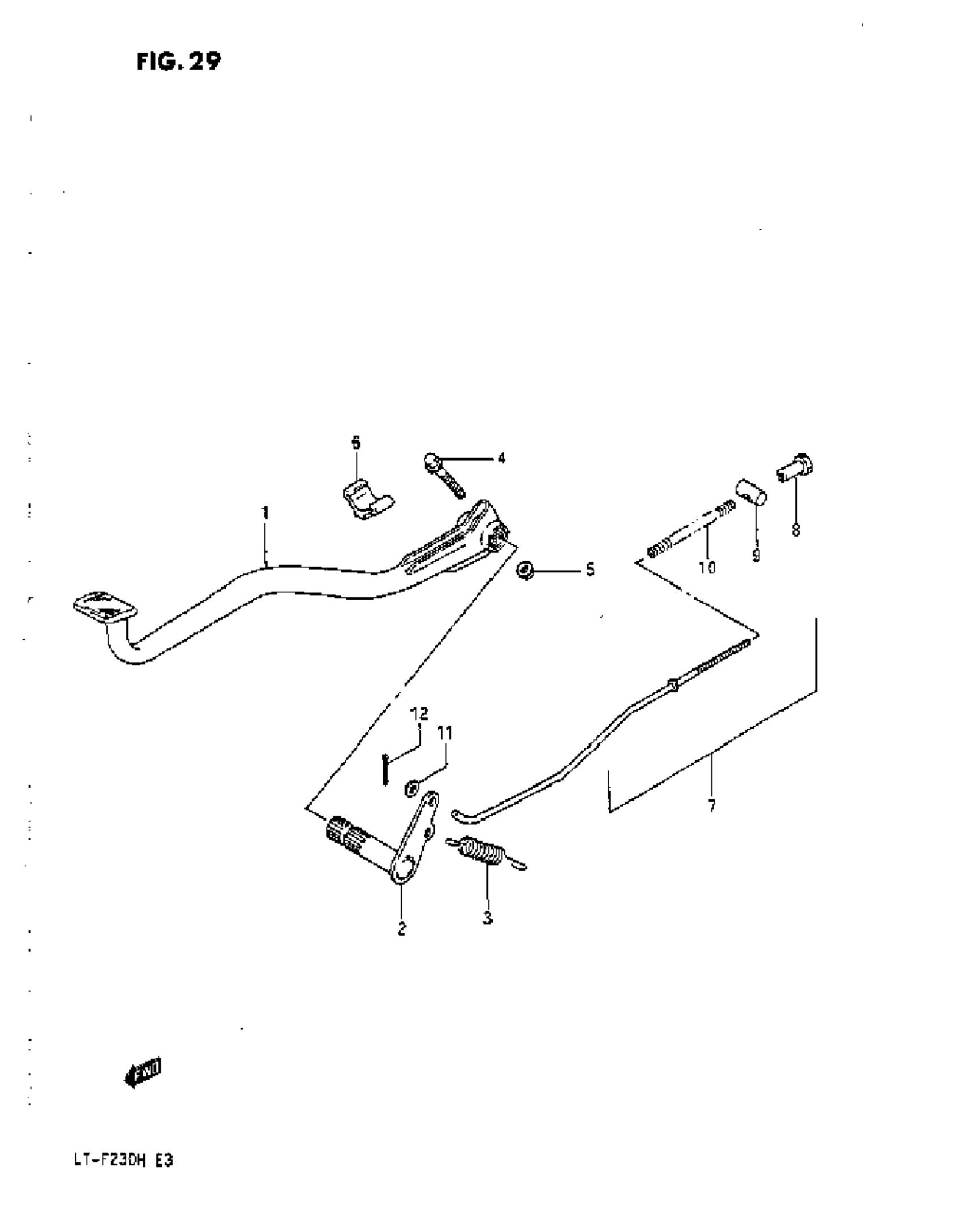

Suzuki LTF230 (1987) REAR BRAKE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 43110-18A00.

43110-18A01

Unavailable

2

ARM, BRAKE PEDAL

43120-18B00

Unavailable

3

SPRING

09443-15018

Unavailable

4

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.25

5

NUT

08319-31087

$2.31

6

STOPPER, BRAKE PEDAL

43517-18B00

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 43300-18B00.

43300-18X51

Unavailable

8

NUT

09150-06012

$3.08

9

PIN

09209-13006

$4.73

10

.SPRING This part replaces 09440-09013.

09440-09004

$2.06

11

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.83

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
