1987 Suzuki LTF230 Brake Hose Diagram

← All diagrams

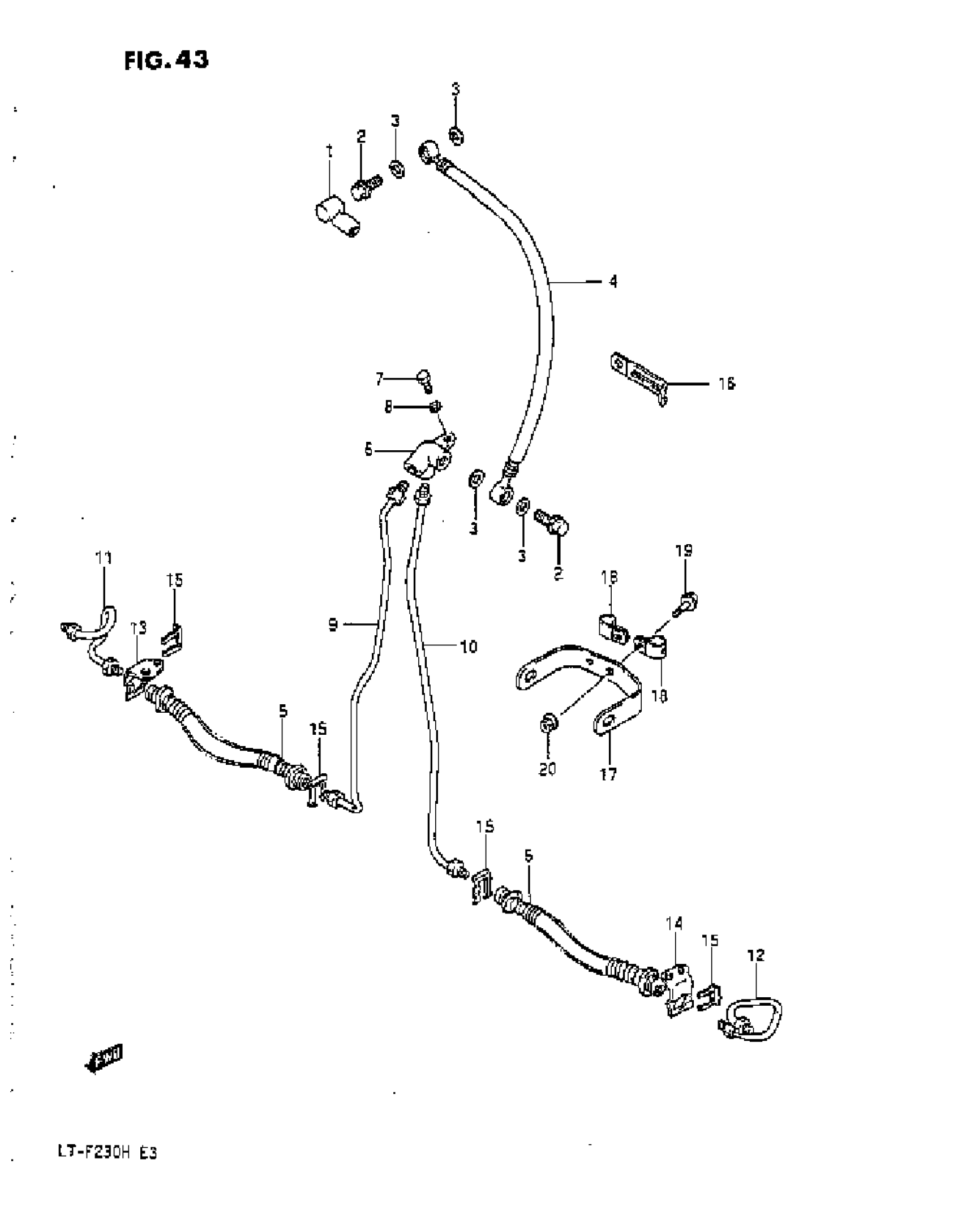

Find the part on the Brake Hose diagram for your 1987 Suzuki LTF230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LTF230 Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

1
Out of stock

2

BOLT

09360-10017

2
Out of stock

3

WASHER (10X15X1.5)

09161-10009

4
Out of stock

4

HOSE, FRONT BRAKE NO.1

59480-18B00

1
Out of stock

5

HOSE, FRONT BRAKE NO.2

59240-18A02

2
Out of stock

6

JOINT (WHITE) This part replaces 59490-24501.

59490-24502

1
Out of stock

7

BOLT This part replaces 01107-06126.

01500-0612A

1
Out of stock

8

1

$1.97

In stock

9

PIPE, NO.1 RH

59250-18A01

1
Out of stock

10

PIPE, NO.1 LH

59450-18A01

1
Out of stock

11

PIPE, NO.2 RH

59250-24512

1
Out of stock

12

PIPE, NO.2 LH

59450-24512

1
Out of stock

13

GUIDE, HOSE NO.2 RH

59261-18A00

1
Out of stock

14

GUIDE, HOSE NO.2 LH

59271-18A00

1
Out of stock

15

4

$2.83

In stock

16

CLAMP This part replaces 09404-08413.

09404-08420

1
Out of stock

17

BRACKET

59471-18A00

1
Out of stock

18

CLAMP

09403-06401

2
Out of stock

19

BOLT This part replaces 01517-06167.

01550-06167

2
Out of stock

20

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock
