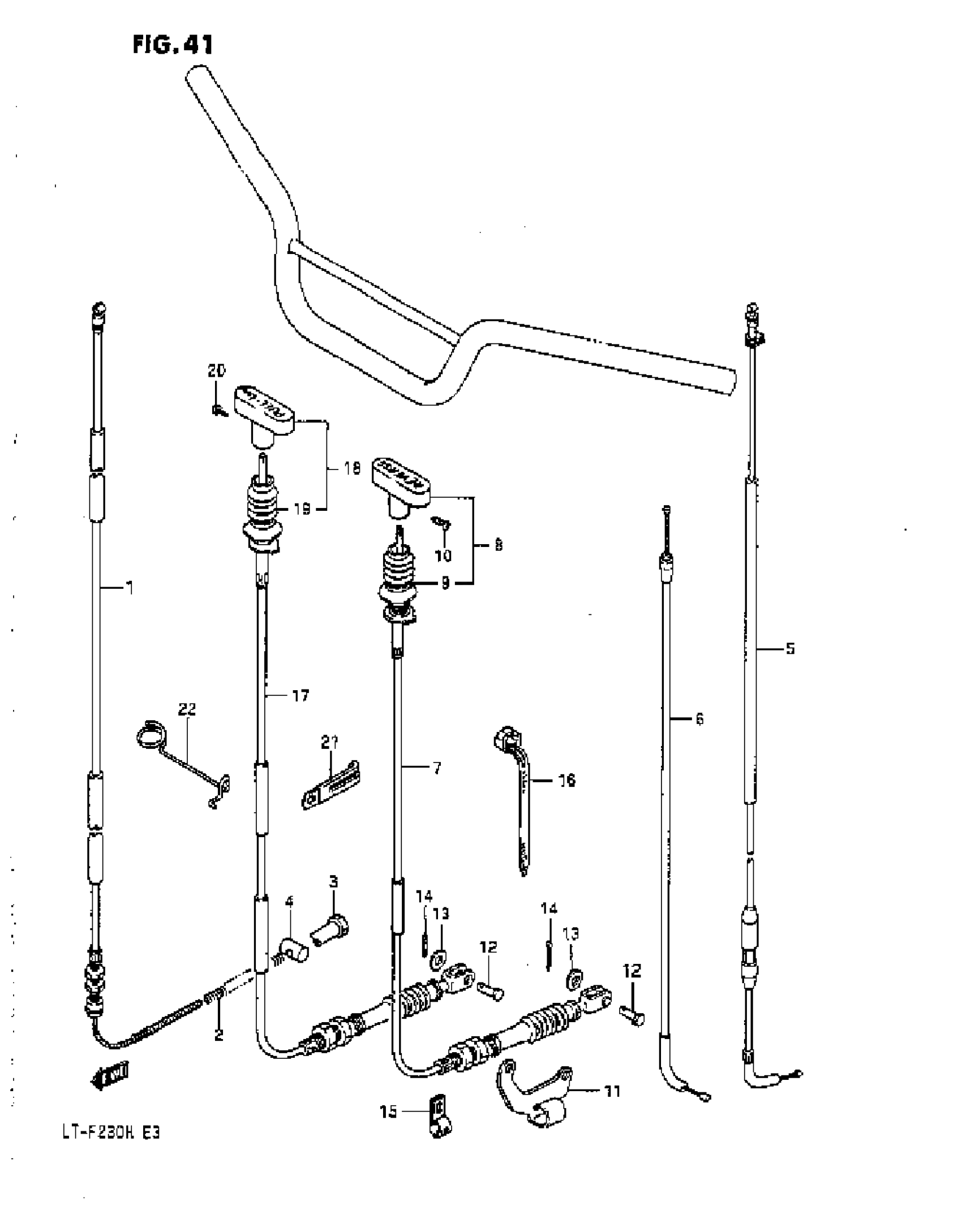

Suzuki LTF230 (1987) CONTROL CABLE Diagram

#

Description
Price

1

CABLE, REAR BRAKE

58510-18B00

Unavailable

2

SPRING

09440-07058

Unavailable

3

NUT

09150-06012

$3.08

4

PIN

09209-13006

$4.73

5

CABLE, THROTTLE | MODEL G This part replaces 58300-18B00.

58300-18B01

Unavailable

5

CABLE, THROTTLE | MODEL H

58300-18B01

Unavailable

6

CABLE, STARTER | MODEL G This part replaces 58410-18B10.

58410-18B11

Unavailable

6

CABLE, STARTER | MODEL H

58410-18B11

Unavailable

7

CABLE SET,REVER | MODEL G This part replaces 58840-18A12.

58800-18820

Unavailable

7

CABLE SET,REVER | MODEL H This part replaces 58840-18A13.

58800-18820

Unavailable

8

KNOB

58860-18A00

$12.24

9

BOOT

58842-18A00

$7.07

10

SCREW

58487-24500

$7.68

11

BRACKET

58871-18A00

Unavailable

12

PIN

09200-05001

$1.52

13

WASHER (6.5X14X2.3) This part replaces 09160-06017.

09160-06127

$2.50

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

15

CLAMP, REVERSE CABLE

09403-08403

Unavailable

16

CLAMP, CABLE

09407-14403

$2.24

17

CABLE, SUB TRANSMISSION

58880-18B04

Unavailable

18

KNOB

58890-18B01

Unavailable

19

BOOT

58842-18A00

$7.07

20

SCREW

58487-24500

$7.68

21

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

21

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.76

22

GUIDE, CABLE

58874-18B00

Unavailable
