1987 Suzuki LTF230 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1987 Suzuki LTF230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

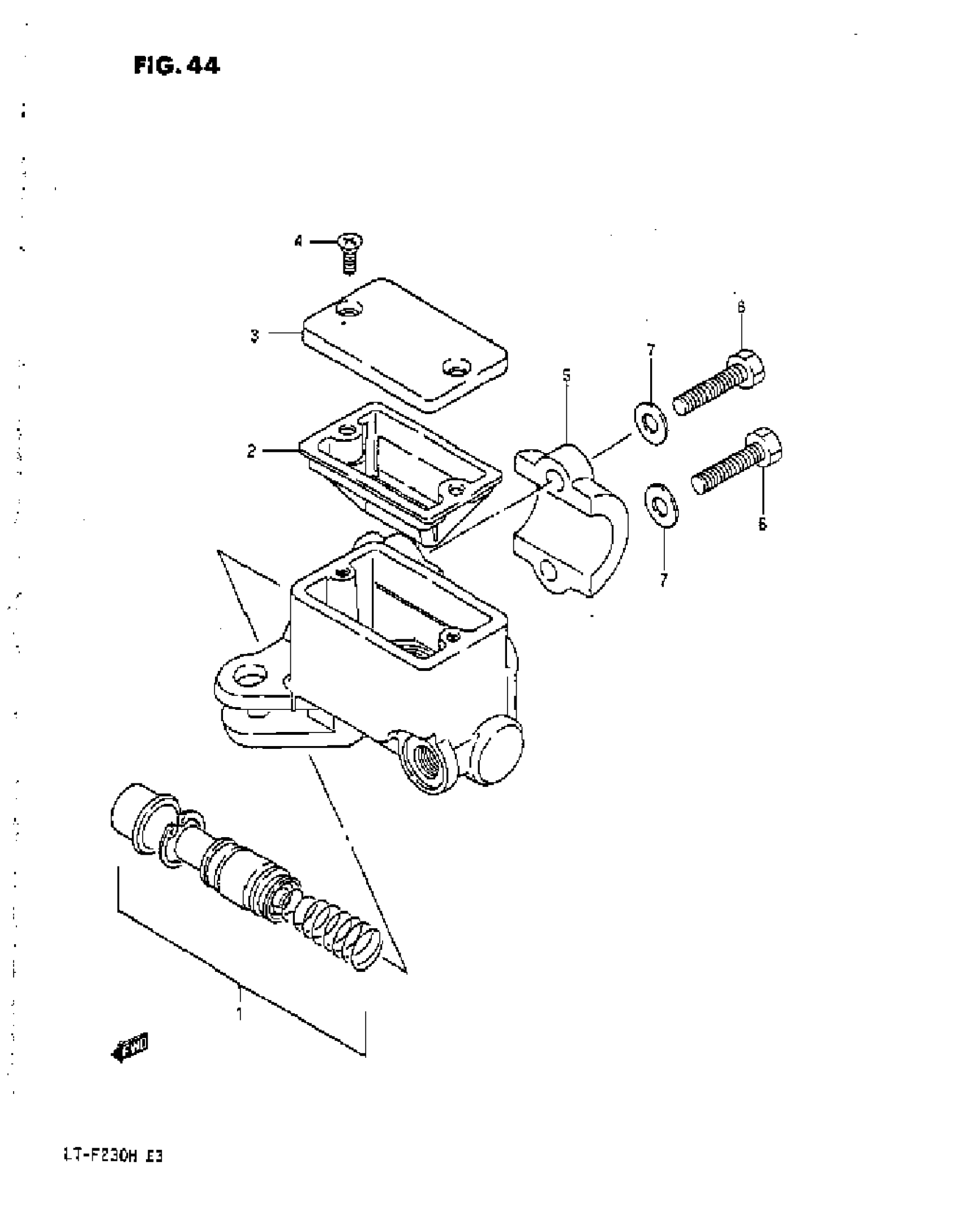

1987 Suzuki LTF230 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-19A00.

59600-25C00

1
Out of stock

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

1
Out of stock

2

DIAPHRAGM

59667-24500

1
Out of stock

3

CAP This part replaces 59669-04710.

69669-24A01

1
Out of stock

4

SCREW, CAP

69689-49300

2
Out of stock

5

HOLDER This part replaces 59671-16700.

59671-19B00

1
Out of stock

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

2
Out of stock

7

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock
