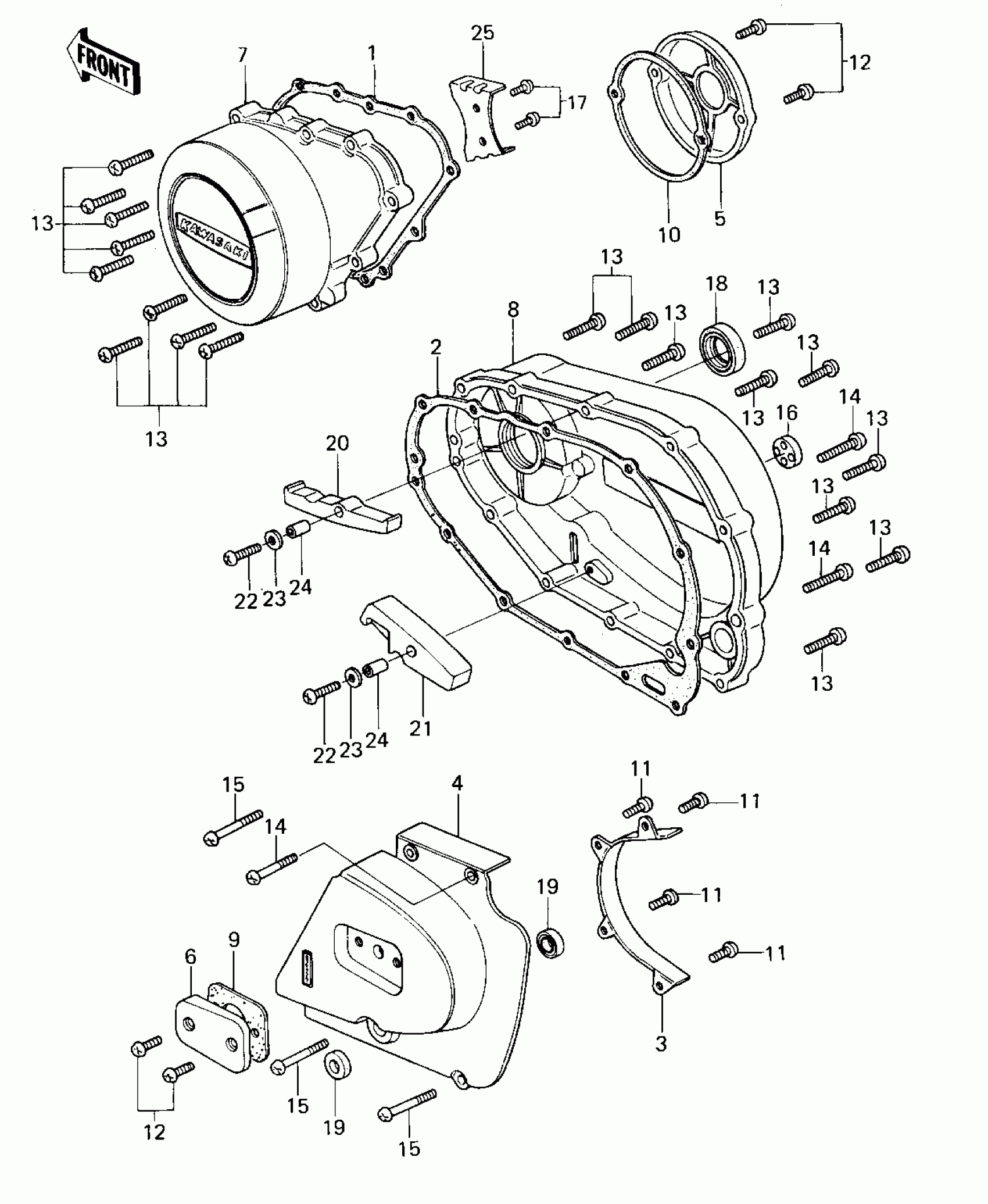

Kawasaki LTD Belt ENGINE COVERS ('80 D1) Diagram

#

Description
Price

1

GASKET,GENERATER COV.

11009-1032

Unavailable

2

GASKET,CLUTCH COVER

11009-1033

Unavailable

3

GUIDE,CHAIN

12053-1009

Unavailable

4

COVER CHAIN

14026-1011-80

Unavailable

5

COVERBRK POINT,BUFF

14027-019-80

Unavailable

6

COVER,CLUTCH ADJUSTNG

14028-006-80

Unavailable

7

COVER,GENERATOR,BUFF

14031-1023

Unavailable

8

COVER,CLUTCH

14032-1038

Unavailable

9

GASKET,CLUTCH ADJ CAP

14049-004

Unavailable

10

GASKET,BREAKER COVER

14050-010

Unavailable

11

SCREW PAN HEAD 6X10

220B0610

Unavailable

12

SCREW PAN HEAD 6X18

220B0618

$2.74

13

SCREW PAN HEAD 6X30

220B0630

$2.74

14

SCREW PAN HEAD 6X40

220B0640

Unavailable

15

SCREW PAN HEAD 6X50

220B0650

$0.93

16

GAUGE,OIL LEVEL

52015-004

$48.05

17

SCREW PAN HEAD 5X8

220B0508

Unavailable

18

SEAL-OIL,S25407

92050-065

$23.53

19

SEAL-OIL,TB13225.5

92051-005

$7.74

20

GUIDE,PRIMARY CHAIN

12053-1004

Unavailable

21

GUIDE,PRIMARY CHAIN

12053-1005

Unavailable

22

SCREW PAN HEAD 6X25

220B0625

Unavailable

23

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

24

COLLAR,6.2X8.1X15

92027-1079

$3.96

25

GUIDE,CHAIN

12053-1014

Unavailable
