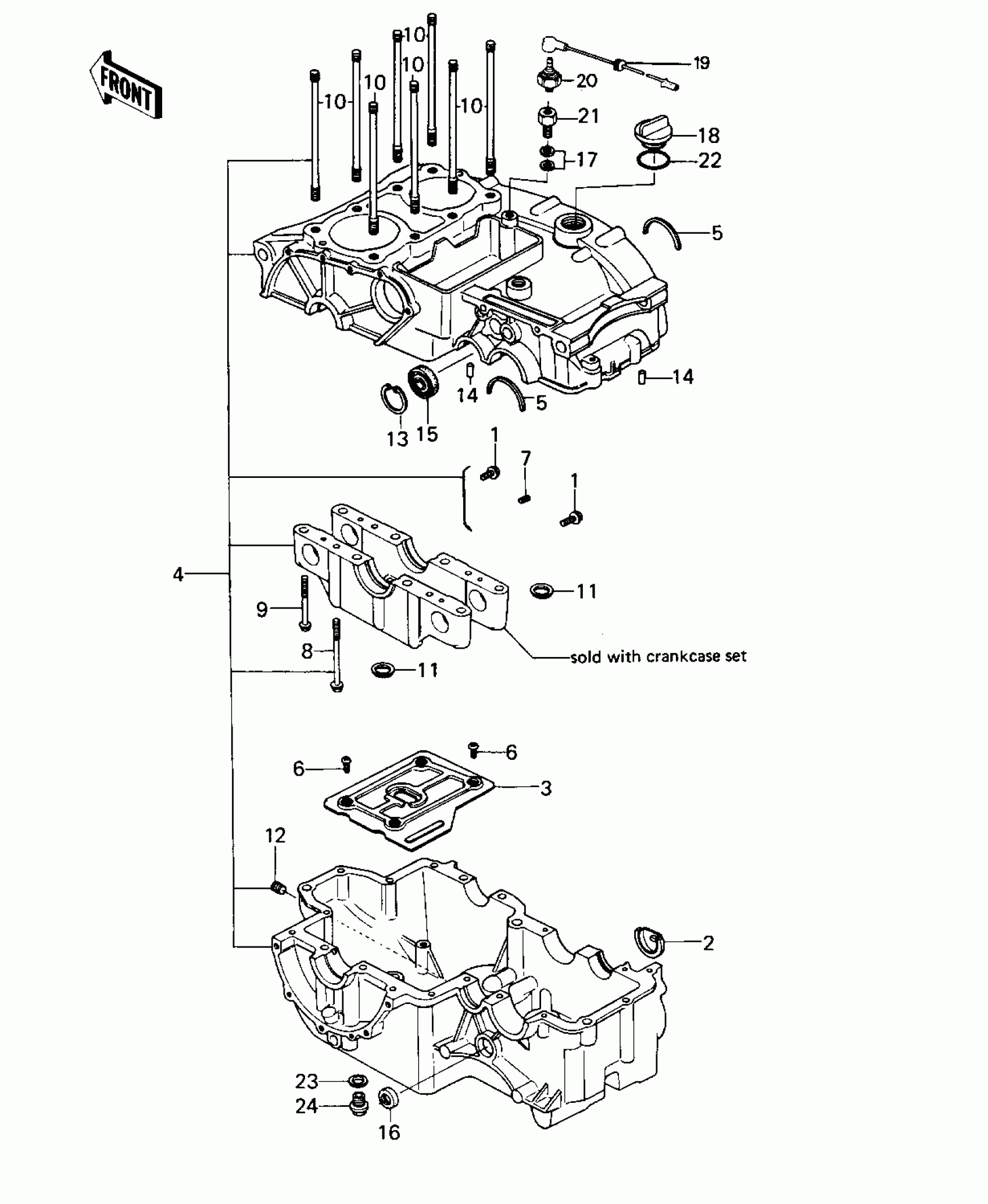

Find the part on the Crankcase diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki LTD Belt Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,FLANGED,6X8

130P0608

1
Out of stock

1

BOLT,FLANGED,6X8

130P0608

1
Out of stock

2

RECEIVER,OIL

13045-1001

1
Out of stock

3

PLATE,CRANKCASE

13169-1103

1
Out of stock

4

CRANKCASE SET

14001-5054

1
Out of stock

5

RING-POSITION

14013-004

1
Out of stock

6

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

7

1

$5.54

In stock

7

1

$5.54

In stock

8

BOLT,FLANGED,10X91

92001-1004

1

$9.32

In stock

9

BOLT,FLANGED,8X58

92001-1005

1

$7.24

In stock

9

BOLT,FLANGED,8X58

92001-1005

1

$7.24

In stock

9

BOLT,FLANGED,8X58

92001-1005

1

$7.24

In stock

10

STUD,10X153

92004-062

1
Out of stock

10

STUD,10X153

92004-062

1
Out of stock

11

RING-O,OD=18

92055-048

1

$3.81

In stock

12

PLUG,OIL LINE,1/8X7

92066-059

1
Out of stock

12

PLUG,OIL LINE,1/8X7

92066-059

1
Out of stock

13

UNAVAILABLE IN PRICE BOOK

481J360

1
Out of stock

14

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

15

OIL SEAL,PUSH ROD

92049-1041

1
Out of stock

16

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

17

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

18

CAP-OIL FILLER

16115-013

1

$18.64

In stock

19

WIRE,LEAD,OIL SWITCH

26011-1078

1
Out of stock

20

SWITCH,OIL PRESSURE

27010-1157

1
Out of stock

21

BOLT,OIL SWITCH

92001-1020

1

$11.34

In stock

22

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

23

GASKET,12X22X2

92065-097

1

$0.76

In stock

24

1

$4.88

In stock
