1980 Kawasaki LTD Belt Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

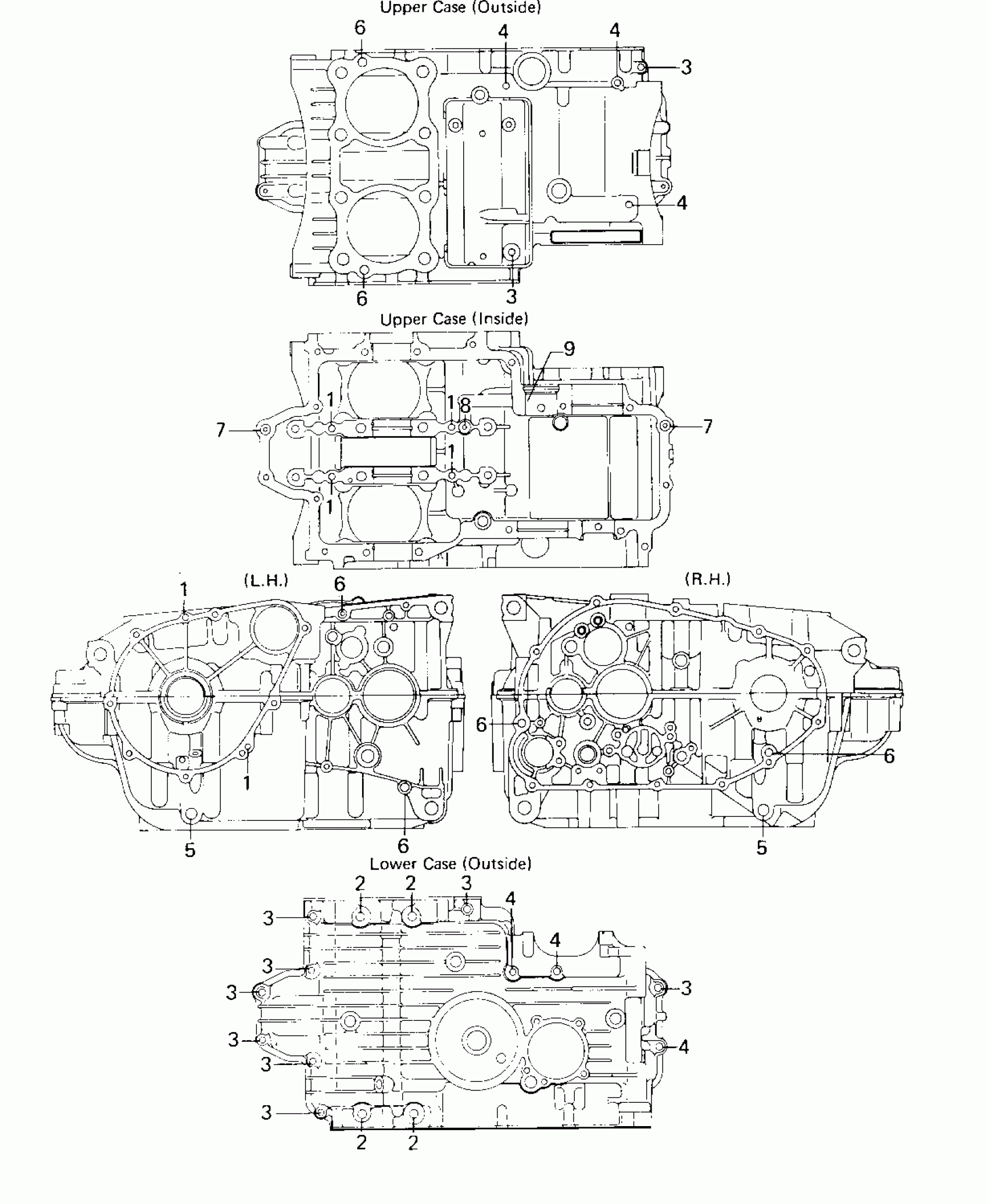

1980 Kawasaki LTD Belt Crankcase Bolt & Stud Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIN-DOWEL,6X12

551A0612

1

$0.90

In stock

2

BOLT-FLANGED,8X95

130P0895

1
Out of stock

3

BOLT,HEX HEAD,6X54

92003-110

1
Out of stock

3

BOLT,HEX HEAD,6X54

92003-110

1
Out of stock

3

BOLT,HEX HEAD,6X54

92003-110

1
Out of stock

4

BOLT-FLANGED,6X95

130G0695

1
Out of stock

5

SET SCREW,PT 1/4

92013-010

1
Out of stock

5

SET SCREW,PT 1/4

92013-010

1
Out of stock

6

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

7

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

7

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

8

RING-O,OD=13

92055-074

1

$6.82

In stock

9

NOZZLE,BLACK

92062-011

1

$8.37

In stock

9

NOZZLE,BLACK

92062-011

1

$8.37

In stock
