1990 Suzuki LT500RL Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1990 Suzuki LT500RL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

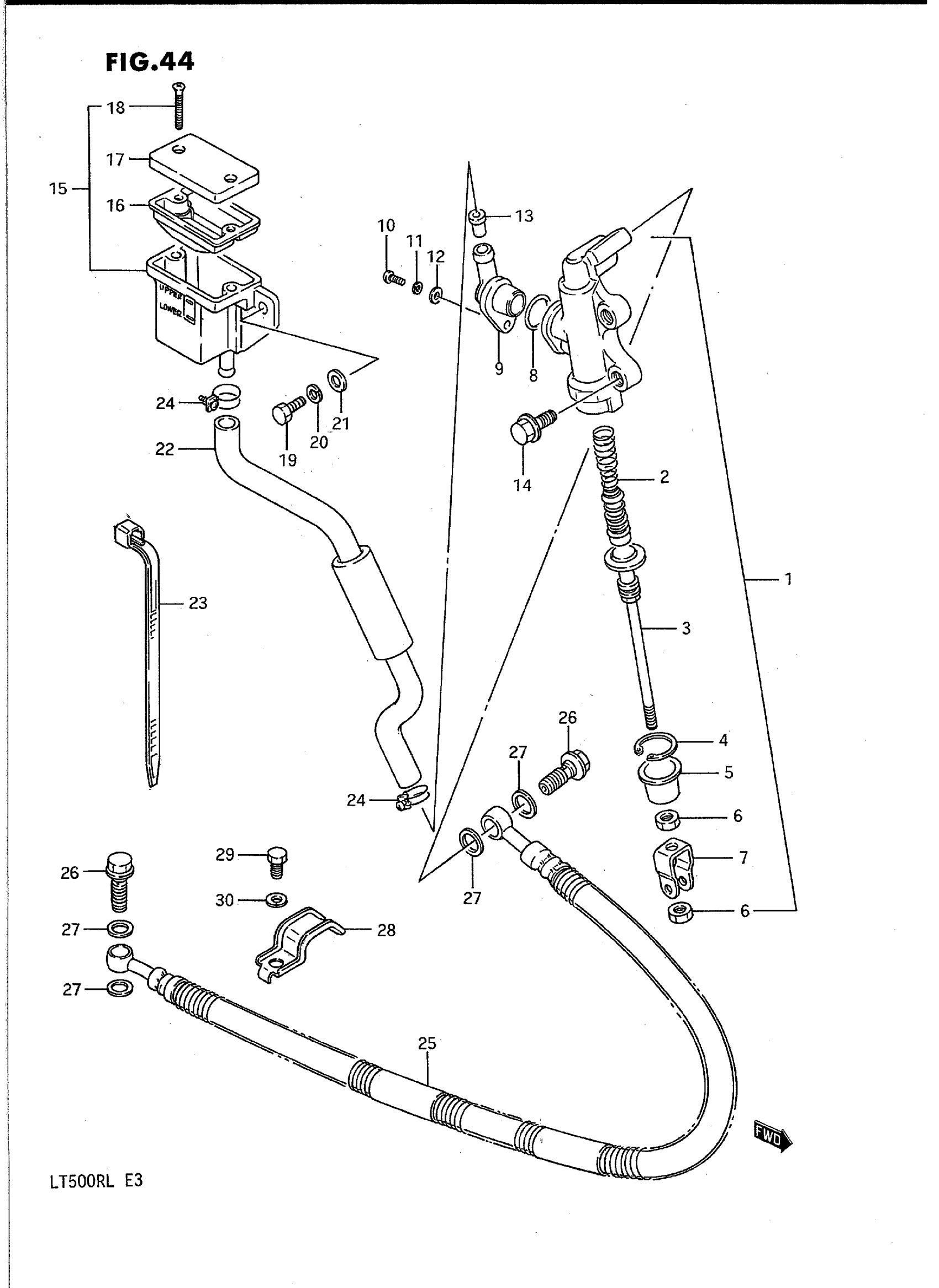

1990 Suzuki LT500RL Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER (WHITE) | MODEL HTO 69600-43B01 (WHITE) This part replaces 69600-43B00.

69600-43B01

1
Out of stock

1

CYLINDER ASSY, REAR MASTER | MODEL J This part replaces 69600-43B10.

69600-43B11

1
Out of stock

1

CYLINDER ASSY, REAR MASTER | MODEL K/L; Includes Item(s) 2 - 13

69600-43B11

1
Out of stock

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

1
Out of stock

3

ROD, PUSH | MODEL H

69670-05A00

1
Out of stock

3

ROD, PUSH | MODEL J/K/L

69670-43B00

1
Out of stock

4

CIRCLIP

51162-70040

1
Out of stock

5

.BOOT

69691-00A00

1

$5.44

In stock

6

2

$2.16

In stock

7

YOKE

69692-19A00

1
Out of stock

8

O RING

69686-34200

1

$2.92

In stock

9

CONNECTOR

69672-05A00

1
Out of stock

10

1

$1.33

In stock

11

1

$2.00

In stock

12

WASHER This part replaces 08322-21045.

08322-0104A

1
Out of stock

13

CHOKE

69675-43B00

1
Out of stock

14

BOLT

09103-08149

2
Out of stock

15

TANK ASSY, REAR RESERVOIR | Includes Item(s) 16 - 18 This part replaces 69740-24A00.

69740-24A01

1
Out of stock

16

DIAPHRAGM

59667-04700

1
Out of stock

17

1

$15.49

In stock

18

SCREW

69689-04A00

2
Out of stock

19

1

$1.90

In stock

20

1

$1.97

In stock

21

.WASHER This part replaces 08322-21066.

08322-0106B

1
Out of stock

22

HOSE, TANK

69730-43B00

1
Out of stock

23

CLAMP

09407-18402

1
Out of stock

24

CLAMP This part replaces 09400-16302.

09400-16304

2
Out of stock

25

HOSE, REAR BRAKE

69480-43B00

1
Out of stock

26

BOLT

09360-10017

2
Out of stock

27

WASHER (10X15X1.5)

09161-10009

4
Out of stock

28

CLAMP, BRAKE HOSE

61196-43B00

2
Out of stock

29

2

$2.10

In stock

30

2

$2.28

In stock
