1990 Suzuki LT500RL Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1990 Suzuki LT500RL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

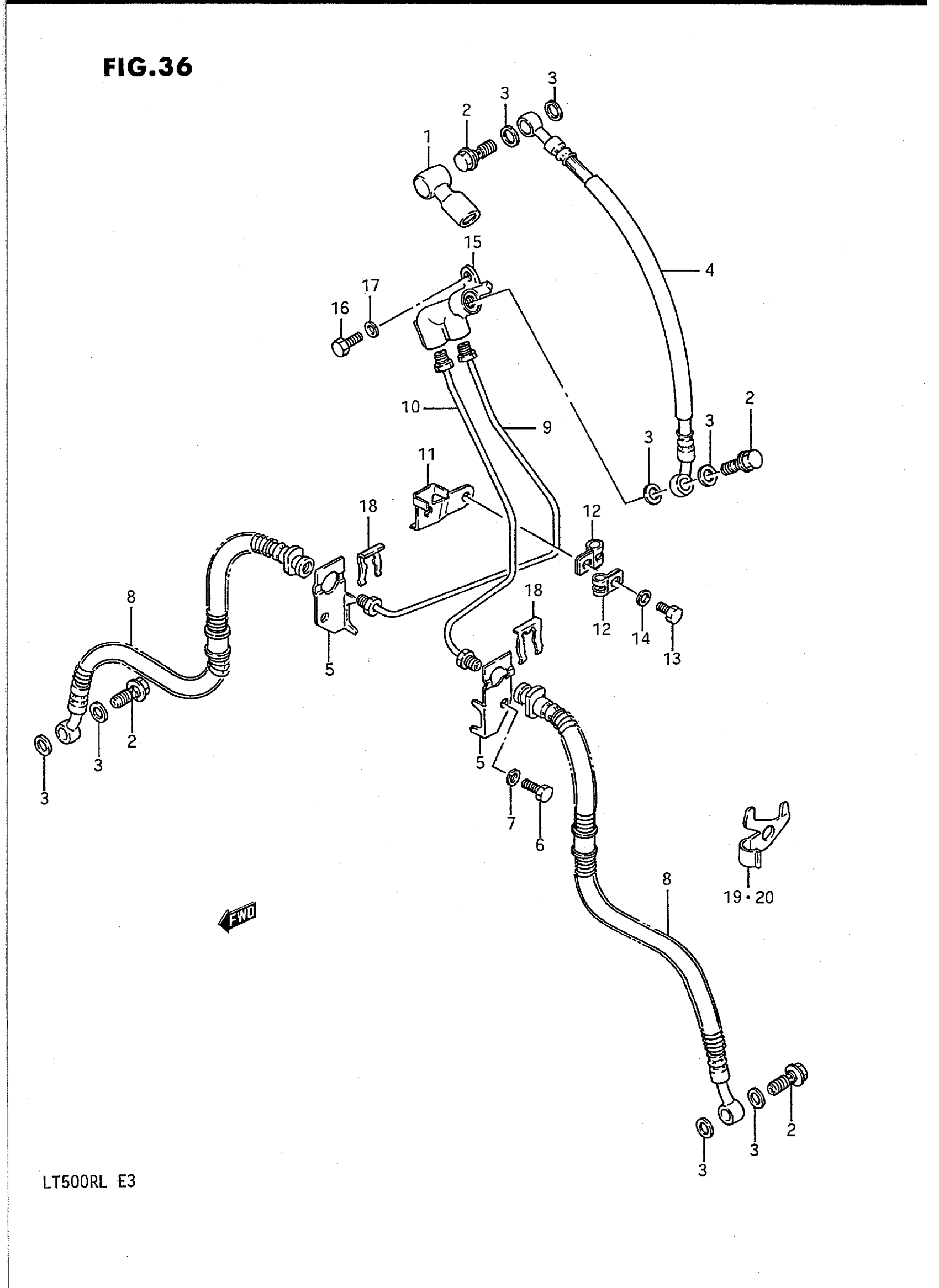

1990 Suzuki LT500RL Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

1
Out of stock

2

BOLT

09360-10017

4
Out of stock

3

WASHER (10X15X1.5)

09161-10009

8
Out of stock

4

HOSE, FRONT BRAKE NO.1

59480-43B00

1
Out of stock

5

GUIDE, BRAKE HOSE NO.1

59266-43B00

2
Out of stock

6

2

$2.10

In stock

7

2

$2.28

In stock

8

HOSE, FRONT BRAKE NO.2

59240-43B01

2
Out of stock

9

PIPE, BRAKE RH

59250-43B00

1
Out of stock

10

PIPE, BRAKE LH

59450-43B00

1
Out of stock

11

BRACKET, BRAKE PIPE

59255-43B00

1
Out of stock

12

CLAMP

09403-06401

2
Out of stock

13

BOLT This part replaces 01107-06126.

01500-0612A

1
Out of stock

14

1

$1.97

In stock

15

1

$60.18

In stock

16

BOLT This part replaces 01107-06166.

01500-0616A

1
Out of stock

17

1

$1.97

In stock

18

2

$2.83

In stock

19

CLAMP, HOSE NO.2 RH

59261-43B00

1
Out of stock

20

CLAMP, HOSE NO.2 LH

59271-43B00

1
Out of stock
