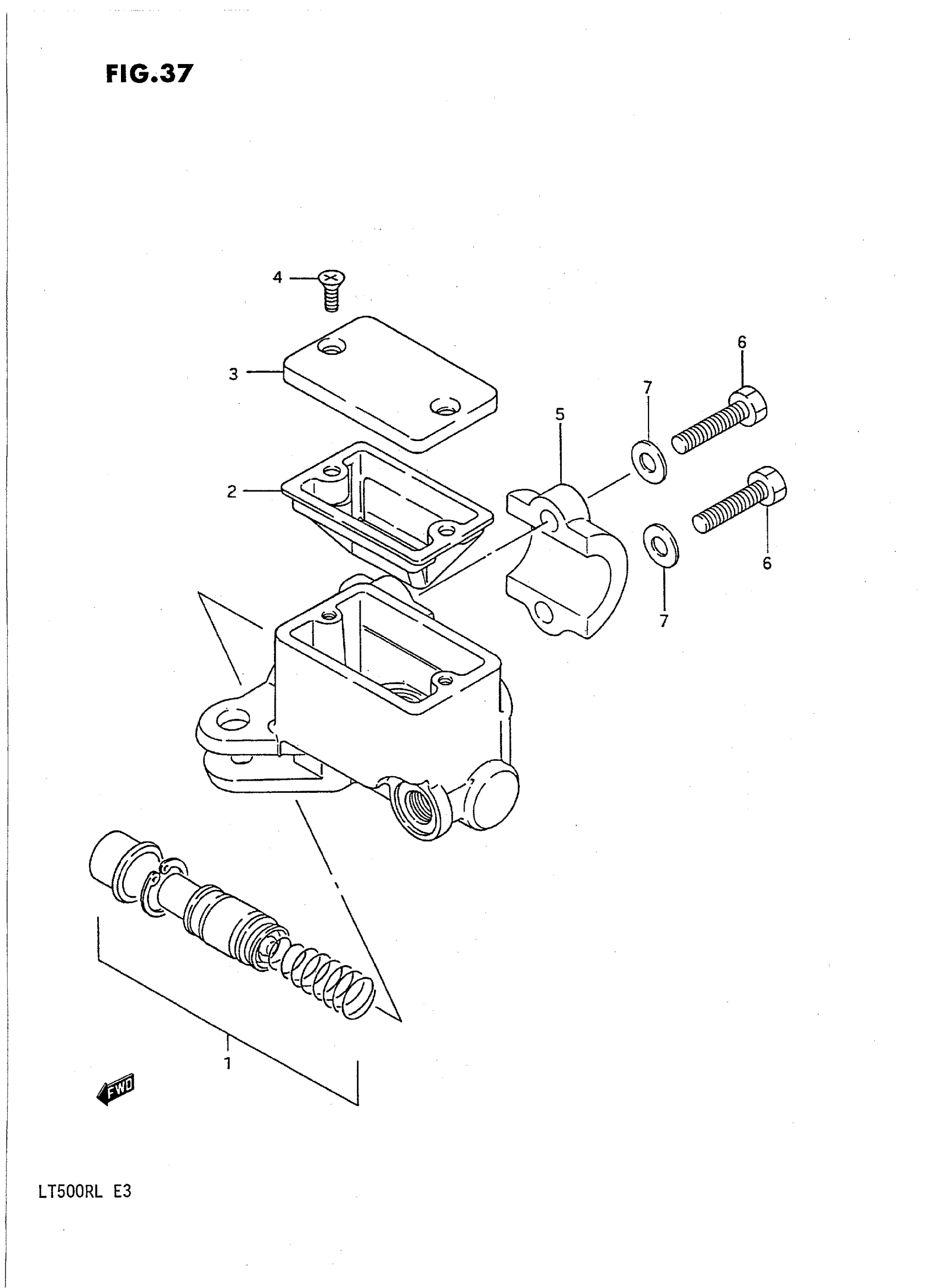

Suzuki LT500RL (1990) FRONT MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, FRONT MASTER | MODEL H/J/K This part replaces 59600-19A00.

59600-25C00

Unavailable

CYLINDER ASSY, FRONT MASTER | MODEL L; Includes Item(s) 1 - 7

59600-25C00

Unavailable

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$41.38

2

DIAPHRAGM

59667-24500

$13.50

3

CAP | MODEL H/J/K This part replaces 59669-04710.

69669-24A01

$14.23

3

CAP | MODEL L

69669-24A01

$14.23

4

SCREW, CAP

69689-49300

$1.81

5

HOLDER

59671-19B00

$22.65

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

7

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24
