1972 Yamaha LT2M (LT2M) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

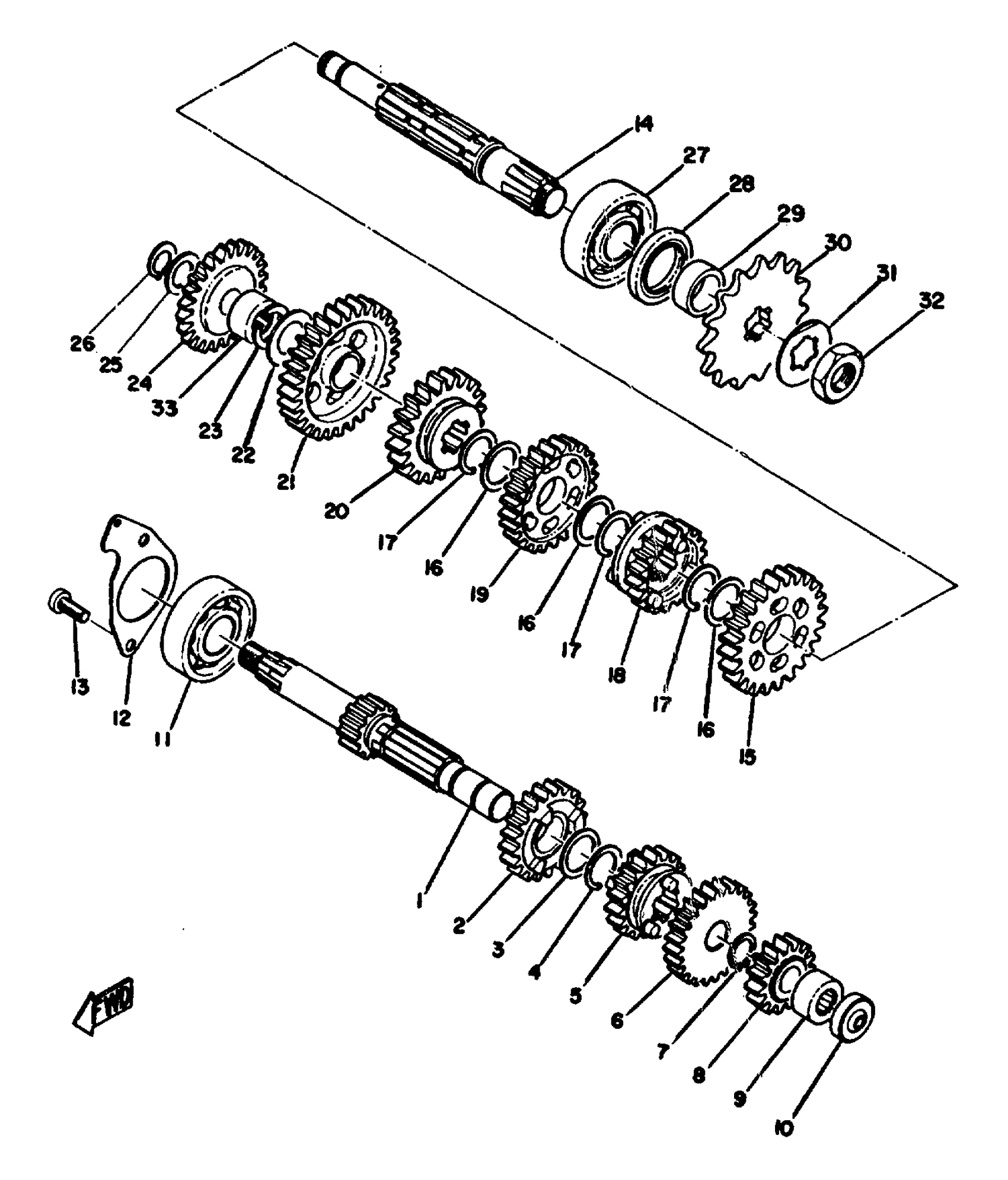

1972 Yamaha LT2M (LT2M) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

276-17411-01-00

1
Out of stock

1

AXLE, MAIN

277-17411-01-00

1
Out of stock

2

GEAR, 4TH PINION

248-17141-00-00

1
Out of stock

2

GEAR, 4TH PINION

265-17141-00-00

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

. GEAR, 3RD PINION

248-17131-00-00

1
Out of stock

6

GEAR, 5TH PINION

248-17151-00-00

1
Out of stock

6

GEAR, 5TH PINION

265-17151-00-00

1
Out of stock

7

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

8

GEAR, 2ND PINION

248-17121-01-00

1
Out of stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

SEAL, PUSH ROD (3V6)

93109-06060-00

1

$7.51

In stock

11

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

12

PLATE, COVER

1G8-17471-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

AXLE, DRIVE

315-17421-01-00

—

$146.51

In stock

15

GEAR, 2ND WHEEL

315-17221-00-00

1
Out of stock

16

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

17

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

18

GEAR, 5TH WHEEL

314-17251-00-00

1
Out of stock

18

GEAR, 5TH WHEEL

315-17251-00-00

1
Out of stock

19

GEAR, 3RD WHEEL

427-17231-00-00

—
Out of stock

20

GEAR,4TH WHEEL

4EG-17241-00-00

1
Out of stock

20

GEAR, 4TH WHEEL

265-17241-00-00

1
Out of stock

21

. GEAR, 1ST WHEEL

248-17211-00-00

1
Out of stock

21

GEAR, 1ST WHEEL

265-17211-00-00

1
Out of stock

22

SHIM, DRIVE AXLE

164-17427-00-06

—

$5.15

In stock

23

CIRCLIP

93440-15012-00

—
Out of stock

24

GEAR, KICK IDLE

403-15651-00-00

—

$41.88

In stock

25

WASHER

132-15653-00-12

1
Out of stock

25

WASHER

132-15653-00-14

1
Out of stock

26

CIRCLIP(13M)

99009-13400-00

—

$5.66

In stock

27

—

$54.91

In stock

28

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

29

COLLAR (525)

90387-20491-00

—

$13.71

In stock

30

SPROCKET, DRIVE (13T)

93822-13213-00

—

$19.66

In stock

30

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

30

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

—
Out of stock

30

—

$18.58

In stock

31

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

32

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

33

BEARING, CYL. #11

93311-31507-00

1
Out of stock

33

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock
