1972 Yamaha LT2M (LT2M) Shifter B Diagram

← All diagrams

Find the part on the Shifter B diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

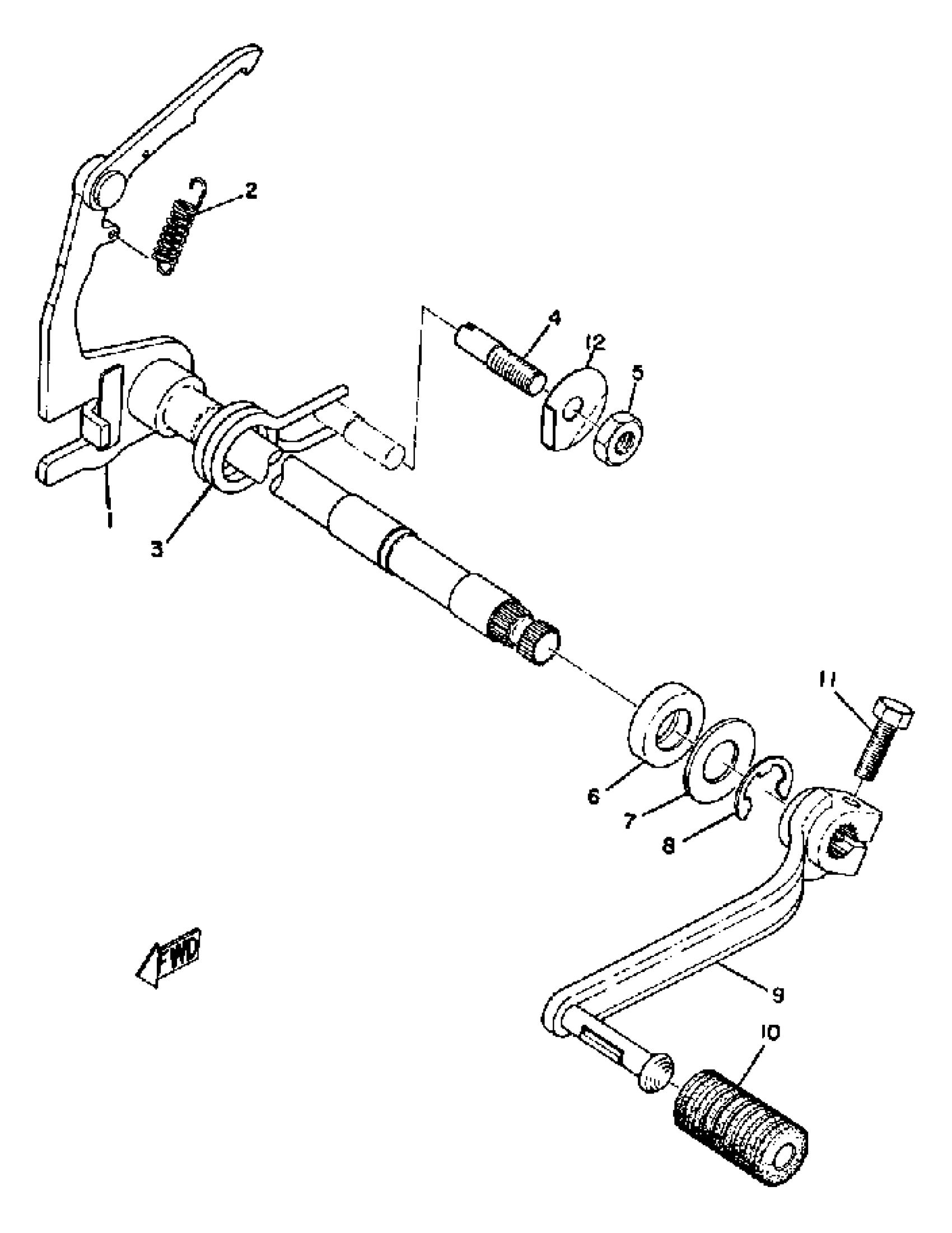

1972 Yamaha LT2M (LT2M) Shifter B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHANGE SHAFT ASSY

276-18101-02-00

—

$49.02

In stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT (583)

90170-08193-00

1
Out of stock

6

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

7

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

8

. CIRCLIP

99001-12600-00

1

$5.78

In stock

9

PEDAL, SHIFT

367-18111-00-00

1

$35.38

In stock

10

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER LOCK 248181390000

90215-08014-00

1

$5.38

In stock
← Shifter A Transmission →

More Drive & Transmission diagrams
