1972 Yamaha LT2M (LT2M) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

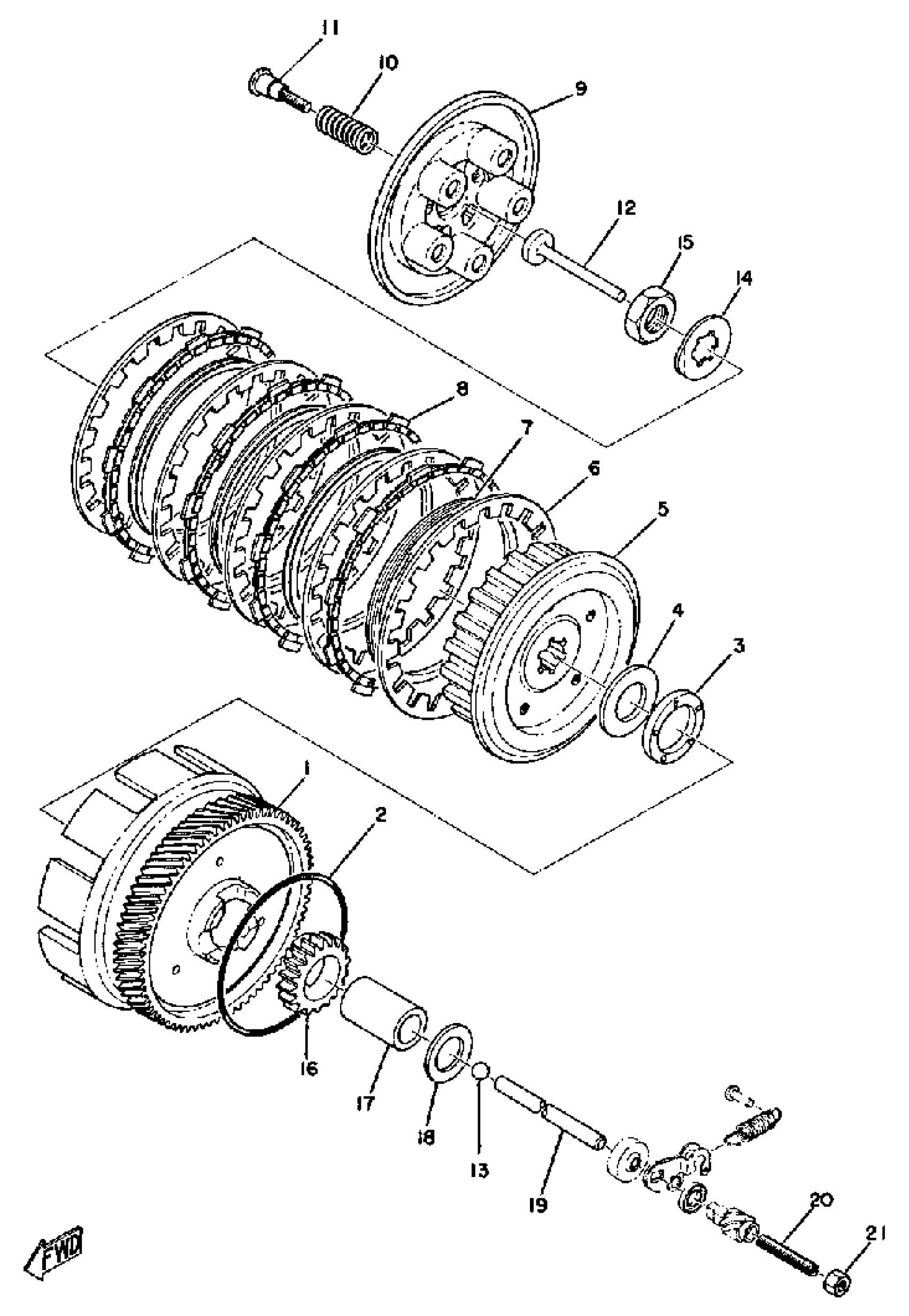

1972 Yamaha LT2M (LT2M) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVEN GEAR

276-16150-00-00

1
Out of stock

2

RING, FRICTION

132-16369-00-00

1

$8.78

In stock

3

. BEARING, FLAT #41

93341-22302-00

1
Out of stock

4

PLATE, THRUST 1

276-16154-00-00

1
Out of stock

5

. BOSS, CLUTCH

132-16371-02-00

1
Out of stock

6

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

7

RING, CUSHION

137-16367-00-00

1

$14.80

In stock

8

PLATE, FRICTION

3HA-16321-00-00

1

$26.75

In stock

9

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

10

1

$6.17

In stock

11

SCREW,SPEC'L SHAPE

90149-05147-00

1
Out of stock

12

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

13

BALL

93501-04011-00

1
Out of stock

14

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

15

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

16

GEAR, KICK PINION

254-15631-00-00

1
Out of stock

17

SPACER (517)

90560-17146-00

—

$21.02

In stock

18

PLATE, THRUST

122-16164-00-00

—

$7.08

In stock

19

ROD, PUSH 2

276-16357-00-00

1
Out of stock

20

BOLT SET 241163430000

90113-06013-00

—
Out of stock

21

NUT(650)

95380-06700-00

—

$6.17

In stock
