1972 Yamaha LT2M (LT2M) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

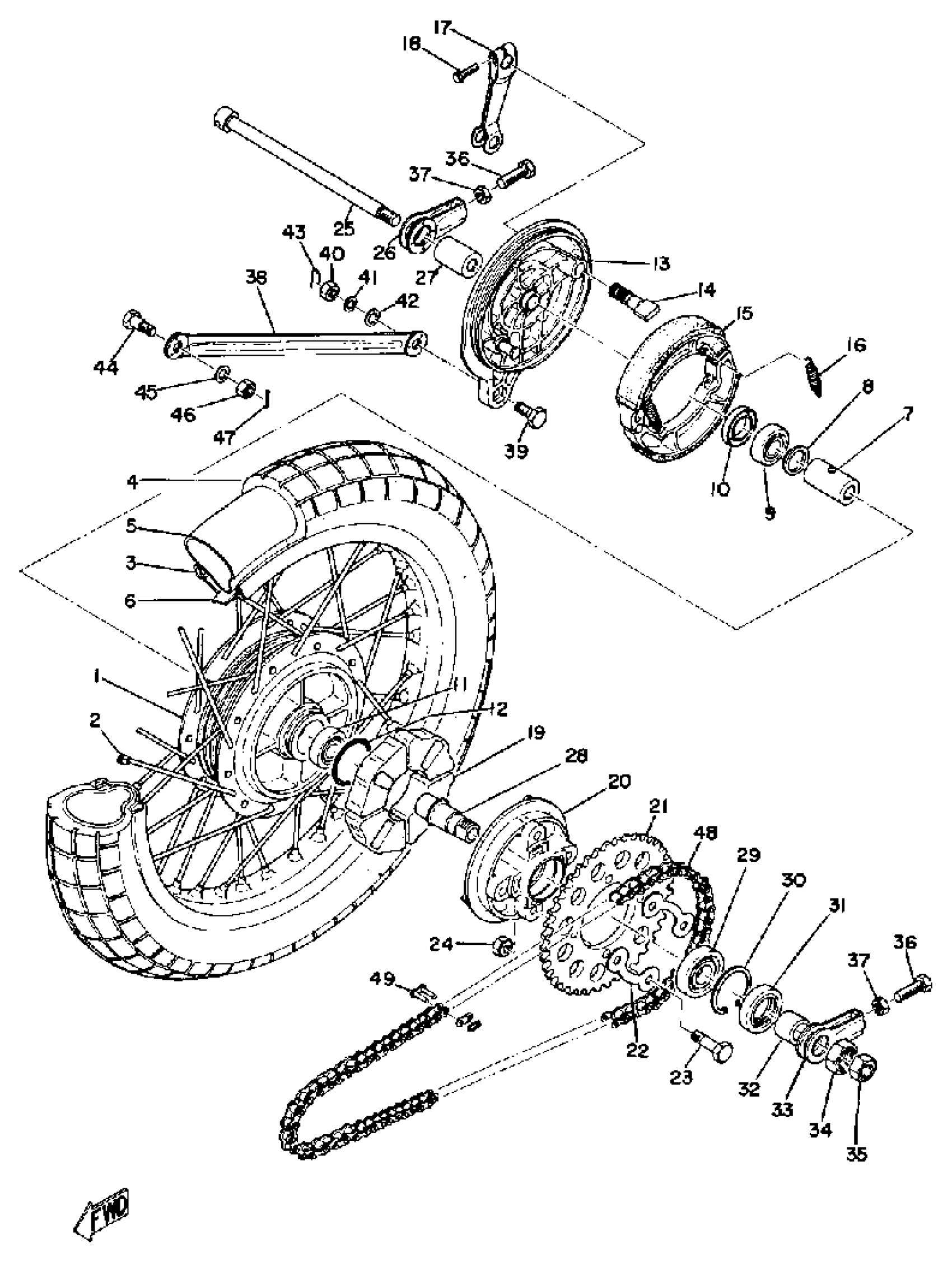

1972 Yamaha LT2M (LT2M) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

183-25311-00-00

1
Out of stock

2

SPOKE SET, REAR

183-25304-01-00

1
Out of stock

2

SPOKE SET, INNER 2

183-25396-90-00

1
Out of stock

2

SPOKE SET, OUTER 2

183-25397-90-00

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

300X18 YOKO Y610

94130-18041-00

1
Out of stock

4

TIRE, 300 X 18 YOKO Y620

94130-18322-00

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER 136253170000

90560-15136-00

—

$17.45

In stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

10

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

12

O-RING (183)

93210-42101-00

—

$7.74

In stock

13

BRAKE SHOE PLATE ASSY

437-25026-10-35

—

$189.92

In stock

14

CAMSHAFT

2RH-25351-00-00

—

$29.14

In stock

15

BRAKE SHOE SET-2PCS

183-W2536-00-00

1
Out of stock

16

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

17

LEVER CAMSHAFT

1R0-25355-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

19

DAMPER, CLUTCH

304-25364-01-00

—

$21.12

In stock

20

CLUTCH, HUB

58K-25366-00-00

1
Out of stock

21

SPROCKET, DRIVEN 45T

183-25446-20-00

1
Out of stock

21

SPROCKET, DRIVEN 49T

276-25449-10-00

1
Out of stock

21

SPROCKET, DRIVEN 52T

276-25452-10-00

1
Out of stock

22

WASHER

4AW-25412-00-00

—

$4.24

In stock

23

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

AXLE, WHEEL

382-25381-00-00

1
Out of stock

26

PULLER, CHAIN

248-25388-00-00

—

$35.90

In stock

27

COLLAR

90387-15425-00

1
Out of stock

28

SHAFT, SPROCKET

183-25387-00-00

—
Out of stock

29

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

30

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

31

SEAL,OIL

93106-26005-00

—

$6.67

In stock

32

COLLAR 183253860000

90387-20165-00

—

$5.77

In stock

33

PULLER, CHAIN 1

214-25388-00-00

1
Out of stock

34

NUT, HEXAGON

90170-20167-00

—
Out of stock

35

NUT(6TC)

95337-14600-00

—

$10.25

In stock

36

BOLT

90101-08060-00

—

$4.92

In stock

37

. NUT

95380-08700-00

1

$3.07

In stock

38

BAR, TENSION

27L-25371-00-00

—
Out of stock

39

BOLT 1092537300

90109-08063-00

—
Out of stock

40

. NUT

95380-08700-00

1

$3.07

In stock

41

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

42

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

43

PIN, COTTER

91490-25020-00

—

$2.94

In stock

44

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

. NUT

95380-08700-00

1

$3.07

In stock

47

PIN, COTTER

91490-25020-00

—

$2.94

In stock

48

DRIVE CHAIN, 428 STD 108L

94504-28108-00

1
Out of stock

48

CHAIN

9Y582-51115-00

—

$46.10

In stock

49

JOINT, CHAIN(3KX)

94681-64001-00

—
Out of stock
