FRONT WHEEL

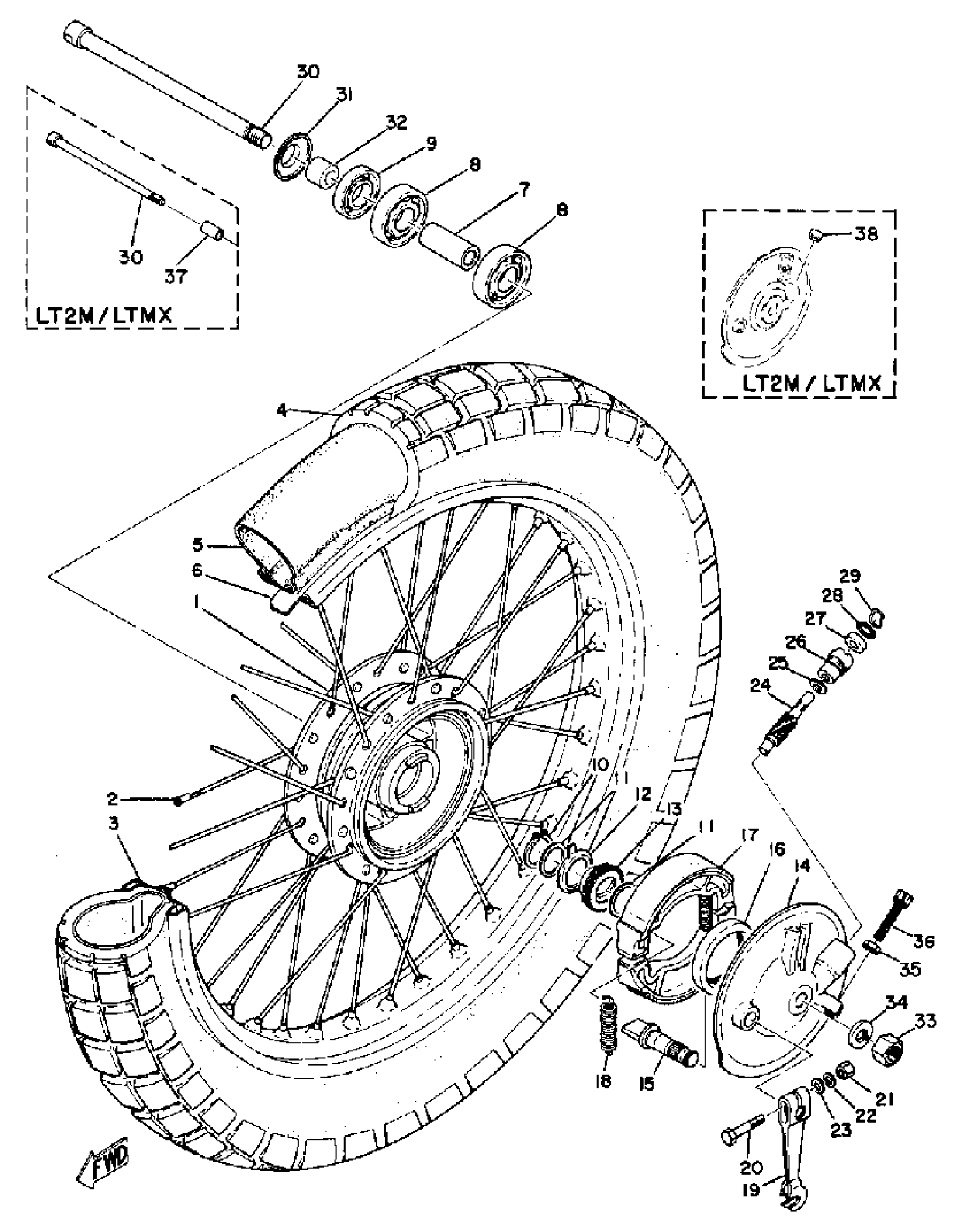

1972 Yamaha LT2M (LT2M) Front Wheel Diagram
Find the part on the Front Wheel diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, FRONT
248-25111-10-00
2
SPOKE SET, FRONT
276-25104-10-00
2
SPOKE SET, FRONT
276-25104-40-00
2
SPOKE SET, INNER 1
276-25196-80-00
2
SPOKE SET, INNER 1
276-25196-90-00
2
SPOKE SET, OUTER 1
276-25197-80-00
2
SPOKE SET, OUTER 1
276-25197-90-00
3
RIM (1.40-19)
94414-19003-00
4
TIRE, 275 X 18 YOKO ENDURO
94127-18115-00
4
TIRE, 275 X 19 YOKO Y611
94127-19095-00
5
TUBE
94227-18010-00
8
BEARING
93306-30102-00
10
CIRCLIP(1AR)
99009-20400-00
11
WASHER, PLATE 1832514700
90201-20269-00
12
CLUTCH, METER
183-25149-00-00
13
GEAR, DRIVE
248-25135-00-00
14
BRAKE SHOE PLT ASSY
437-25120-10-00
16
SEAL,OIL
93105-47007-00
17
BRAKE SHOE SET-2 PCS
326-W2536-00-00
29
RING, STOP
102-25137-00-00
30
AXLE, WHEEL
357-25181-00-00
30
AXLE, WHEEL
427-25181-10-00
31
COVER, HUB DUST
2K5-25118-00-00
37
COLLAR
90387-12099-00
