1972 Yamaha LT2M (LT2M) Front Fork Diagram

← All diagrams

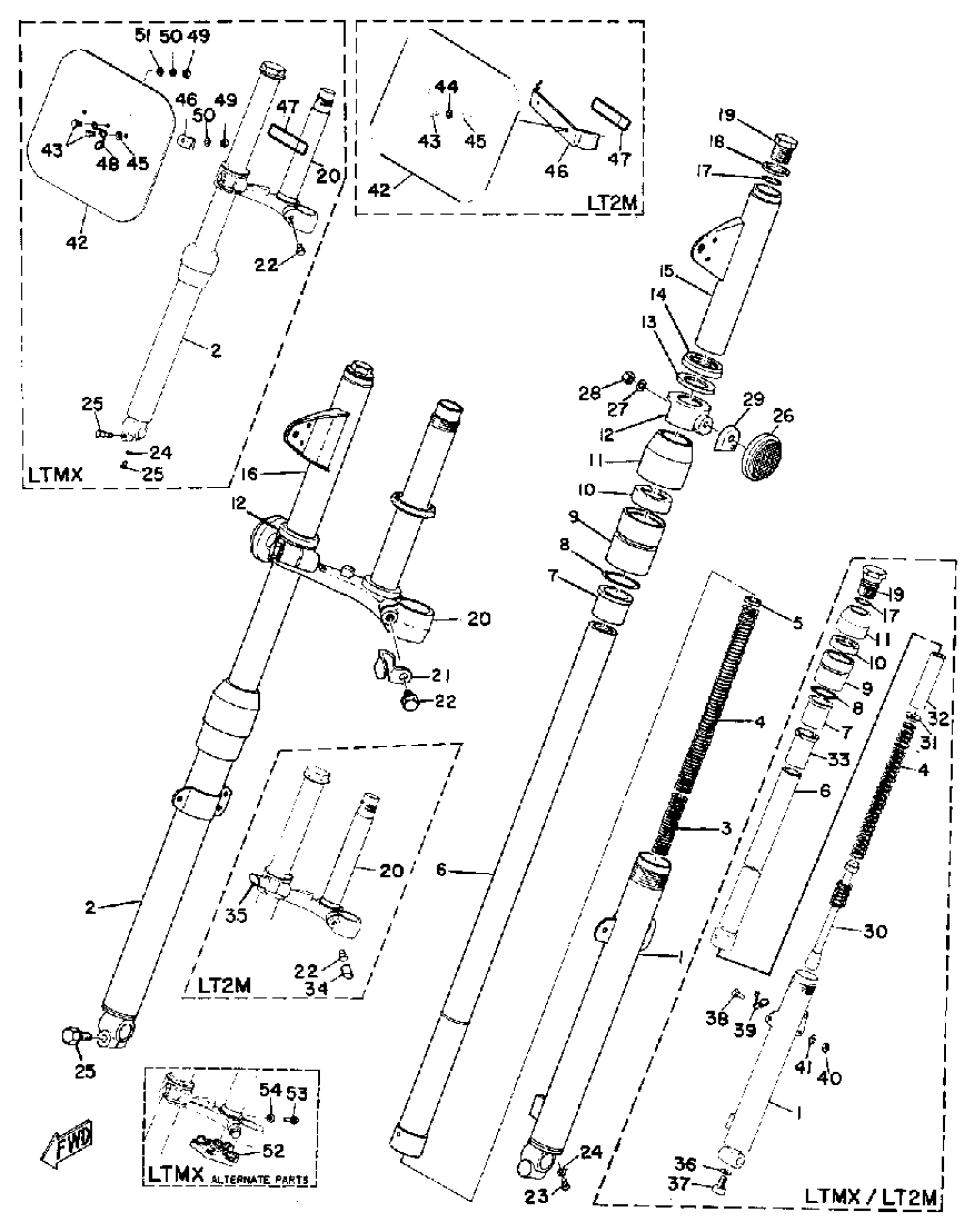

Find the part on the Front Fork diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LT2M (LT2M) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

FRONT FORK ASSY

263-23101-02-35

1
Out of stock

0

FRONT FORK ASSY

305-23100-60-01

1
Out of stock

1

TUBE, OUTER 1

248-23126-00-35

1
Out of stock

1

TUBE, OUTER 1

276-23126-50-35

1
Out of stock

2

TUBE, OUTER 2

248-23136-00-35

1
Out of stock

2

TUBE, OUTER 2

276-23136-50-35

1
Out of stock

3

SPRING, REBOUND

276-23151-50-00

1
Out of stock

4

SPRING, FRONT FORK

276-23141-50-00

1
Out of stock

4

. SPRING, FRONT FORK

318-23141-00-00

1
Out of stock

5

WASHER, SPRING UPR

276-23149-50-00

1
Out of stock

6

TUBE, INNER 1

248-23124-01-00

1
Out of stock

6

TUBE, INNER 1

276-23124-50-00

1
Out of stock

7

METAL, SLIDE 1

137-23125-01-00

1
Out of stock

7

METAL,SLIDE 1

357-23125-90-00

1
Out of stock

8

. O-RING

122-23147-00-00

1
Out of stock

8

. O-RING

137-23147-00-00

1
Out of stock

9

OUTER NUT

193-23150-40-00

1
Out of stock

9

OUTER NUT

196-23150-41-00

1
Out of stock

10

OIL SEAL

137-23145-01-00

—

$38.06

In stock

10

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

11

SEAL, DUST

248-23144-00-00

—

$28.22

In stock

11

. SEAL, DUST

276-23144-50-00

1
Out of stock

12

COVER, OUTER 1

277-23122-61-00

1
Out of stock

13

PACKING(LAMP STAY)

164-23163-00-00

—

$6.46

In stock

14

GUIDE, COVER LOWER

276-23116-50-00

1
Out of stock

15

COVER, UPPER 1

276-23121-50-64

1
Out of stock

15

COVER, UPPER 1

276-23121-50-R3

1
Out of stock

16

COVER,UPPER 2

276-23131-50-64

1
Out of stock

16

COVER, UPPER 2

276-23131-50-R3

1
Out of stock

17

PACKING(O-RING)

146-23114-00-00

—
Out of stock

17

GASKET

307-23114-00-00

—
Out of stock

18

WASHER

177-23112-00-00

1
Out of stock

18

. WASHER, CAP

276-23112-50-00

1
Out of stock

19

BOLT, CAP

205-23111-40-00

—

$9.55

In stock

19

BOLT, CAP

2K5-23111-00-00

1
Out of stock

20

UNDER BRACKET

248-23340-51-33

1
Out of stock

20

UNDER BRACKET

305-23340-20-33

1
Out of stock

21

HOLDER, CABLE 1

256-23318-60-00

1
Out of stock

22

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

22

BOLT 1

122-23346-02-00

—

$6.25

In stock

23

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

24

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

25

BOLT, WITH WASHER

90119-08010-00

1
Out of stock

26

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

29

COVER, REFLECTOR STAY

256-23162-60-00

1
Out of stock

30

CYLINDER, FRONT FORK

248-23170-01-00

1
Out of stock

31

SEAT, SPRING UPPER

248-23142-00-00

1
Out of stock

32

SPACER

248-23118-00-00

1
Out of stock

33

SPACER, OIL LOCK

248-23166-00-00

1
Out of stock

34

STAY, PLATE FTNG 1

263-21581-00-00

1
Out of stock

35

STAY, PLATE FTNG 2

263-21591-00-00

1
Out of stock

36

GASKET

214-23158-00-00

1
Out of stock

37

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

39

HOLDER, CABLE 2

318-23319-00-00

1
Out of stock

40

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

PLATE, NUMBER

263-23485-00-00

1
Out of stock

43

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

44

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

45

WASHER, PLATE

90201-06086-00

—
Out of stock

46

STAY, PLATE

263-23487-00-00

1
Out of stock

46

STAY, PLATE

318-23487-00-00

1
Out of stock

47

O-RING

93210-67057-00

1
Out of stock

47

O-RING (802)

93210-99103-00

—
Out of stock

48

HOLDER, CABLE 2

318-23319-00-00

1
Out of stock

49

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

50

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

51

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
