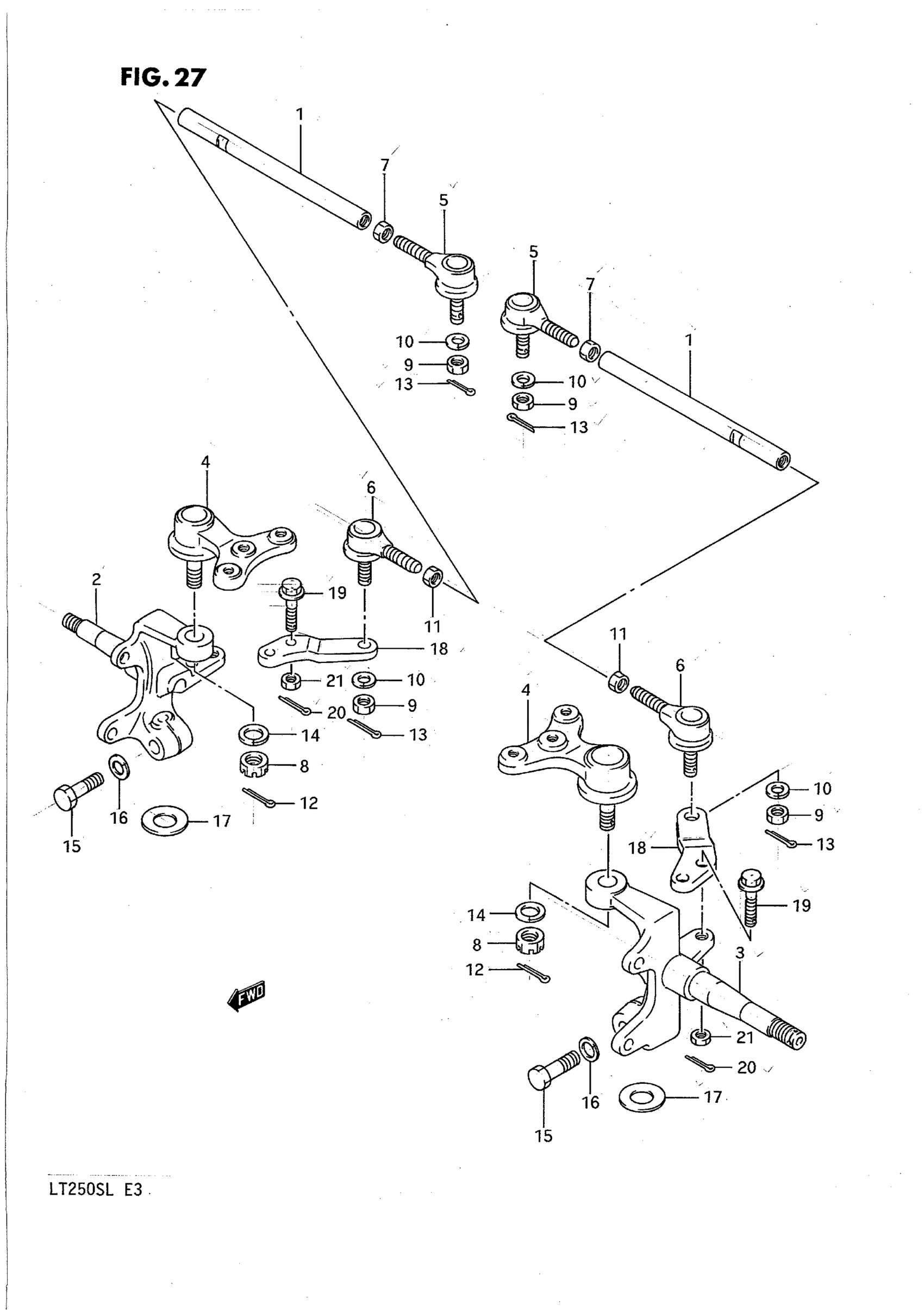

Find the part on the Tie Rod diagram for your 1990 Suzuki LT250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki LT250S Tie Rod Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-25C00

2
Out of stock

2

KNUCKLE, STEERING RH

51231-25C00

1
Out of stock

3

KNUCKLE, STEERING LH

51241-25C00

1
Out of stock

4

END, KNUCKLE STEERING UPPER

51210-22A01

2
Out of stock

5

ROD END, RH

51260-25C00

2
Out of stock

6

ROD END, LH

51270-25C00

2
Out of stock

7

NUT This part replaces 08310-22105.

09140-10043

2
Out of stock

8

NUT This part replaces 08314-41125.

08314-4012A

2
Out of stock

9

NUT This part replaces 09159-10036.

09159-10027

4
Out of stock

10

LOCK WASHER This part replaces 08321-21104.

08321-0110A

4
Out of stock

11

NUT, TIE ROD LH THREED

09140-10027

2
Out of stock

12

PIN This part replaces 04111-30306.

04111-3030A

2
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

14

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

2
Out of stock

15

BOLT, KNUCKLE LOWER

09100-10225

2
Out of stock

16

LOCK WASHER This part replaces 08321-21104.

08321-0110A

2
Out of stock

17

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

2
Out of stock

18

ARM, KNUCKLE STEERING RH

51232-25C00

1
Out of stock

18

ARM, KNUCKLE STEERING LH

51242-25C00

1
Out of stock

19

BOLT, ARM KNUCKLE

09103-08236

4
Out of stock

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

21

NUT This part replaces 08319-31085.

08319-3108A

4
Out of stock
