Partiron

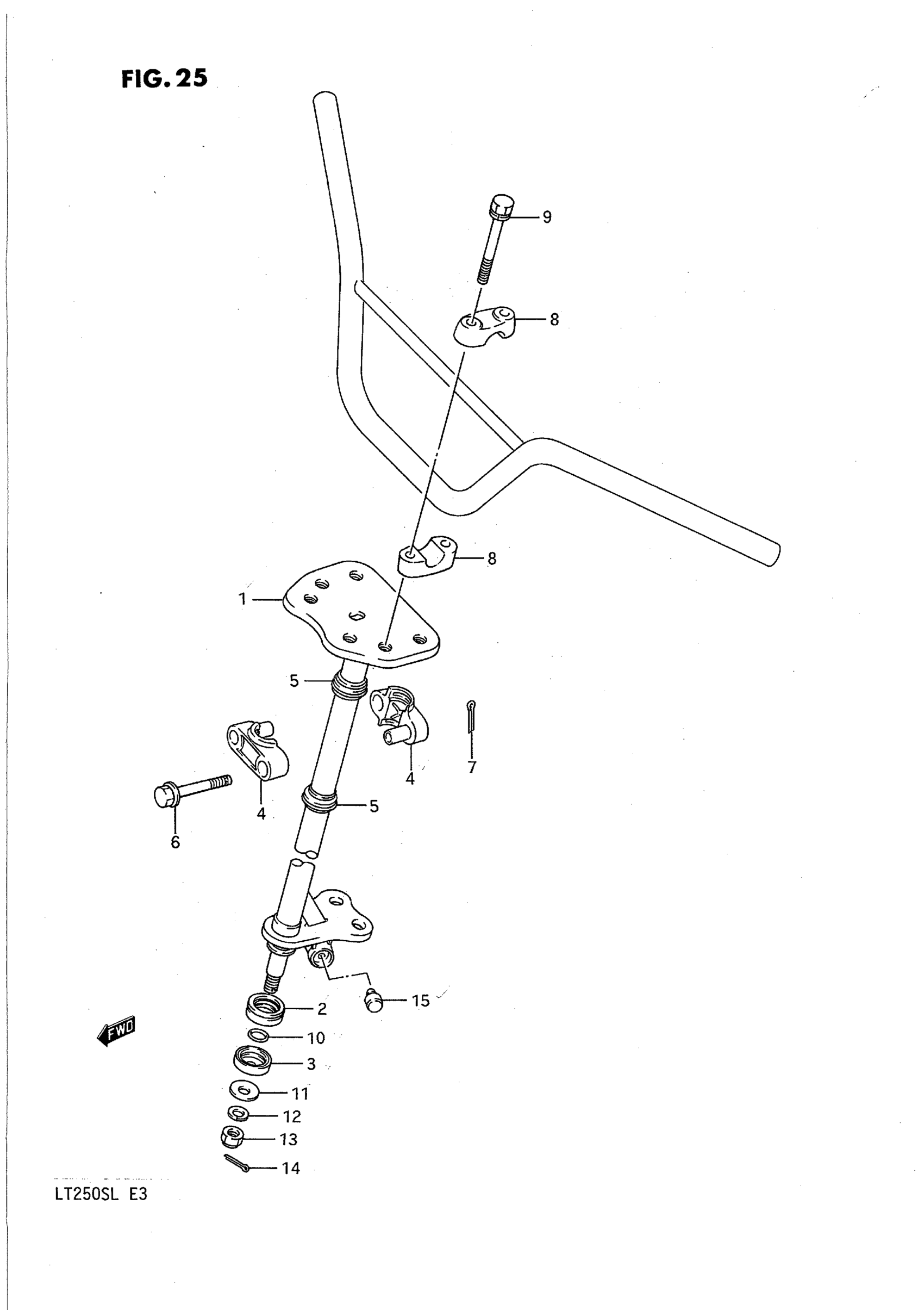

Suzuki LT250S (1990) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-25C00

Unavailable

2

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$6.14

3

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$6.82

4

HOLDER,STEERING SHAFT

51670-24500

$22.70

5

DUST SEAL, STEERING

51678-24500

$6.54

6

BOLT

09103-08150

Unavailable

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

8

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$20.22

9

BOLT

09117-08078

Unavailable

10

O RING

09280-17003

$1.70

11

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$4.03

12

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.08

13

NUT This part replaces 08319-21125.

08319-2112B

$5.63

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

15

CUSHION

09321-08020

$3.67
