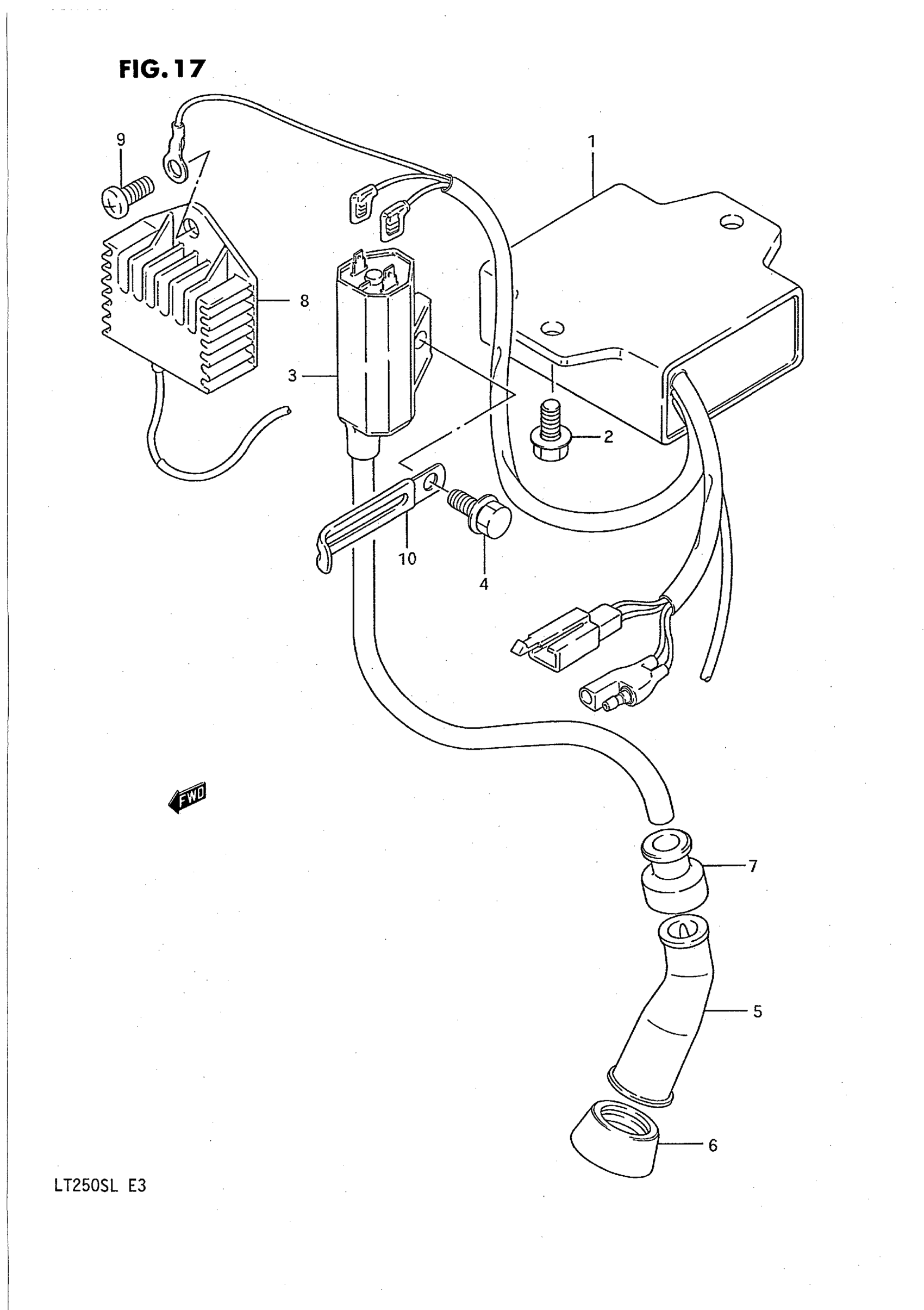

Suzuki LT250S (1990) ELECTRICAL Diagram

#

Description

Price

1

C.D.I UNIT

32900-22A00

Unavailable

2

BOLT

01114-06166

Unavailable

3

UNIT & COIL ASSY, IGNITION This part replaces 33410-22A00.

33410-22AV0

$126.67

4

SCREW

01114-06166

Unavailable

5

CAP, SPARK PLUG

33510-43010

$23.90

6

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.50

7

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

8

REGULATOR ASSY, VOLTAGE This part replaces 32500-24400.

32500-19A00

Unavailable

9

SCREW This part replaces 02112-06126.

02112-0612A

$1.46

10

CLAMP This part replaces 09404-06402.

09404-06039

$1.79
