1986 Suzuki LT230GE Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

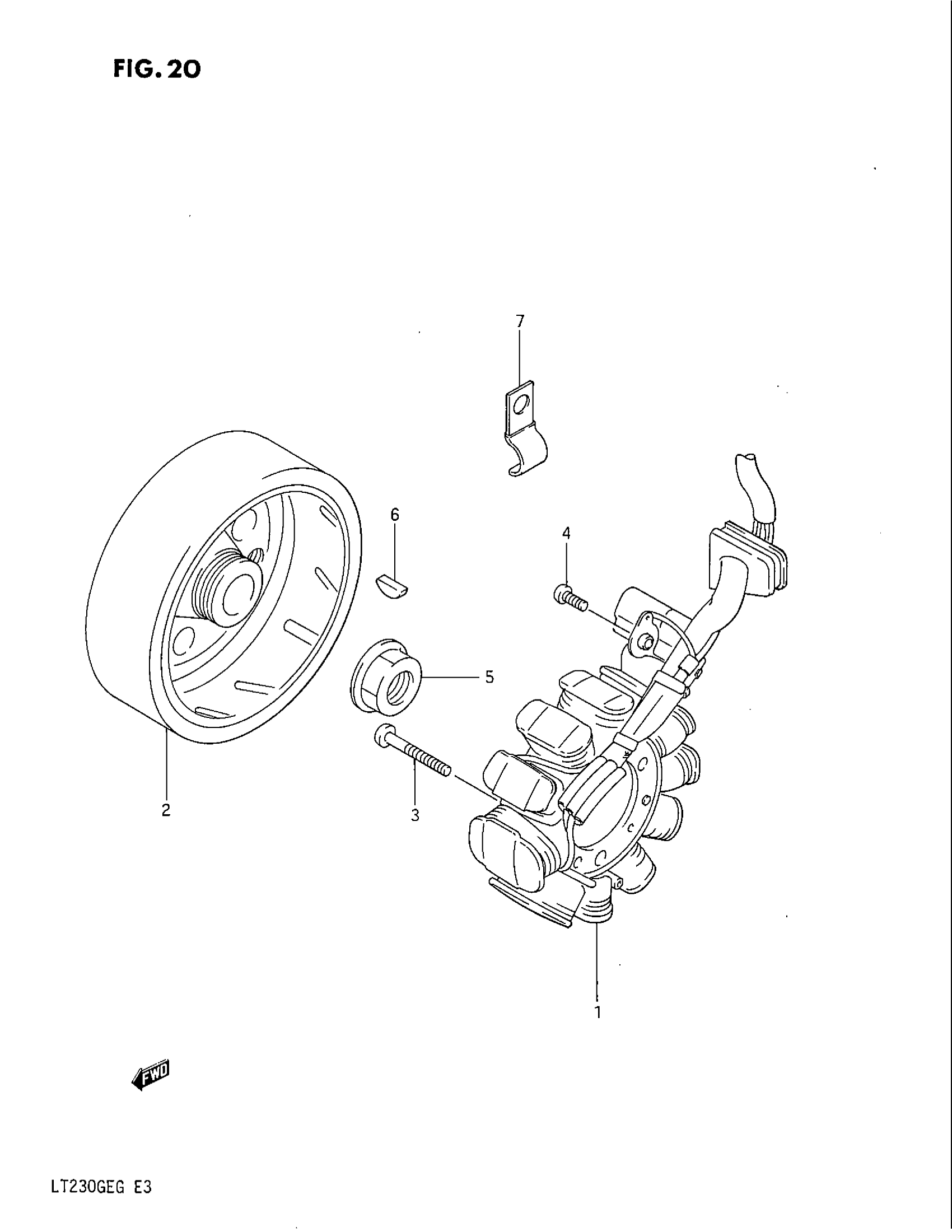

1986 Suzuki LT230GE Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-18A00

1
Out of stock

2

ROTOR

32102-18A00

1
Out of stock

3

SCREW This part replaces 32395-18A00.

09125-05130

3
Out of stock

4

2

$1.67

In stock

5

NUT

31792-18A00

1
Out of stock

6

KEY

08341-31039

1
Out of stock

7

CLAMP, MAGNETO LEAD WIRE

09403-09313

1
Out of stock
← Headlamp Housing Odometer →
