1986 Suzuki LT230GE Battery Diagram

← All diagrams

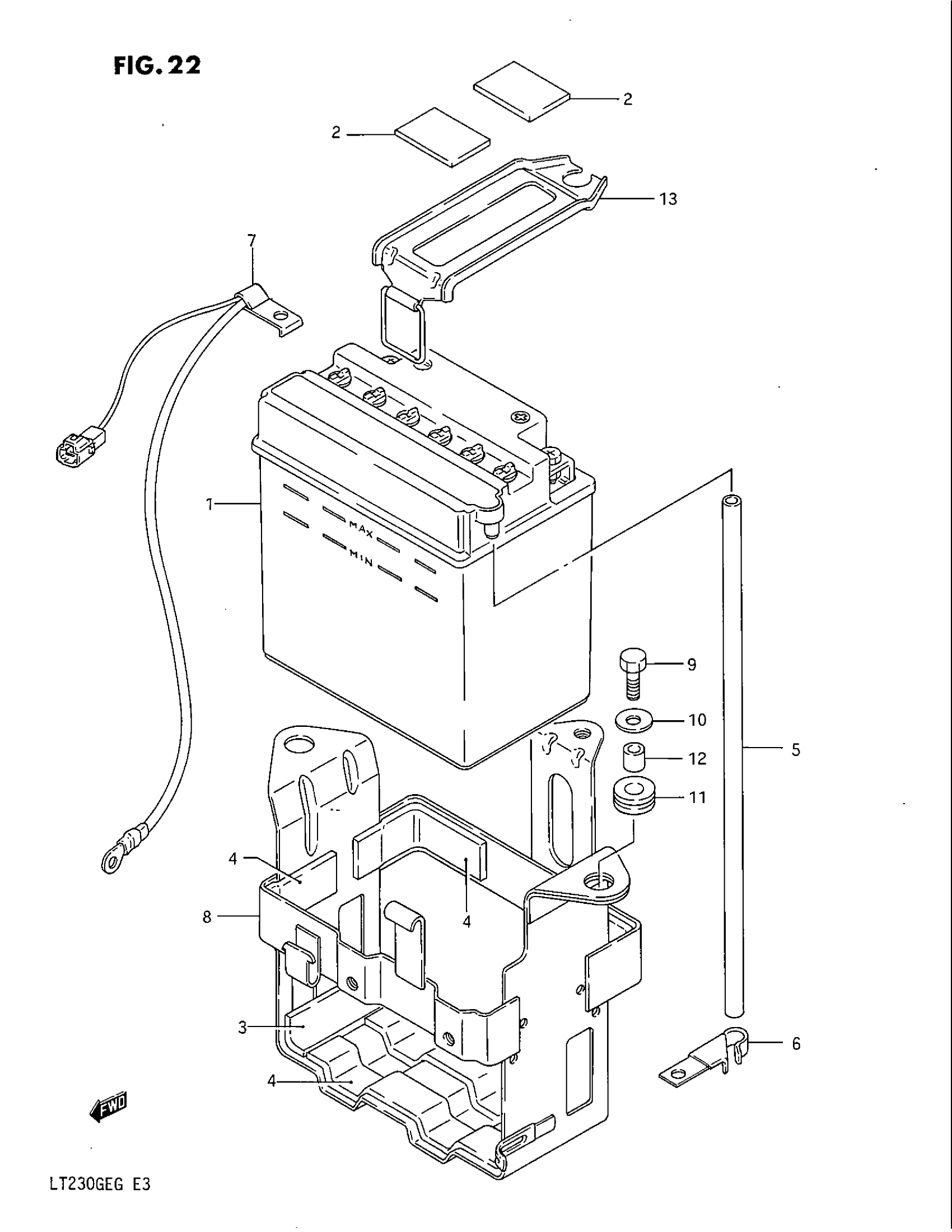

Find the part on the Battery diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki LT230GE Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 33610-18A60.

33610-18A00

1
Out of stock

2

PROTECTOR

33651-37000

2
Out of stock

3

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

2
Out of stock

4

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

6
Out of stock

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

1
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 09403-10309.

09403-10312

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 33860-18A00.

33860-05A01

1
Out of stock

8

HOLDER, BATTERY

41540-18A10

1
Out of stock

9

4

$2.10

In stock

10

WASHER This part replaces 09160-06007.

09160-06084

4
Out of stock

11

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

4
Out of stock

12

SPACER

09180-06038

4
Out of stock

13

COVER, BATTERY

41560-24501

1
Out of stock
