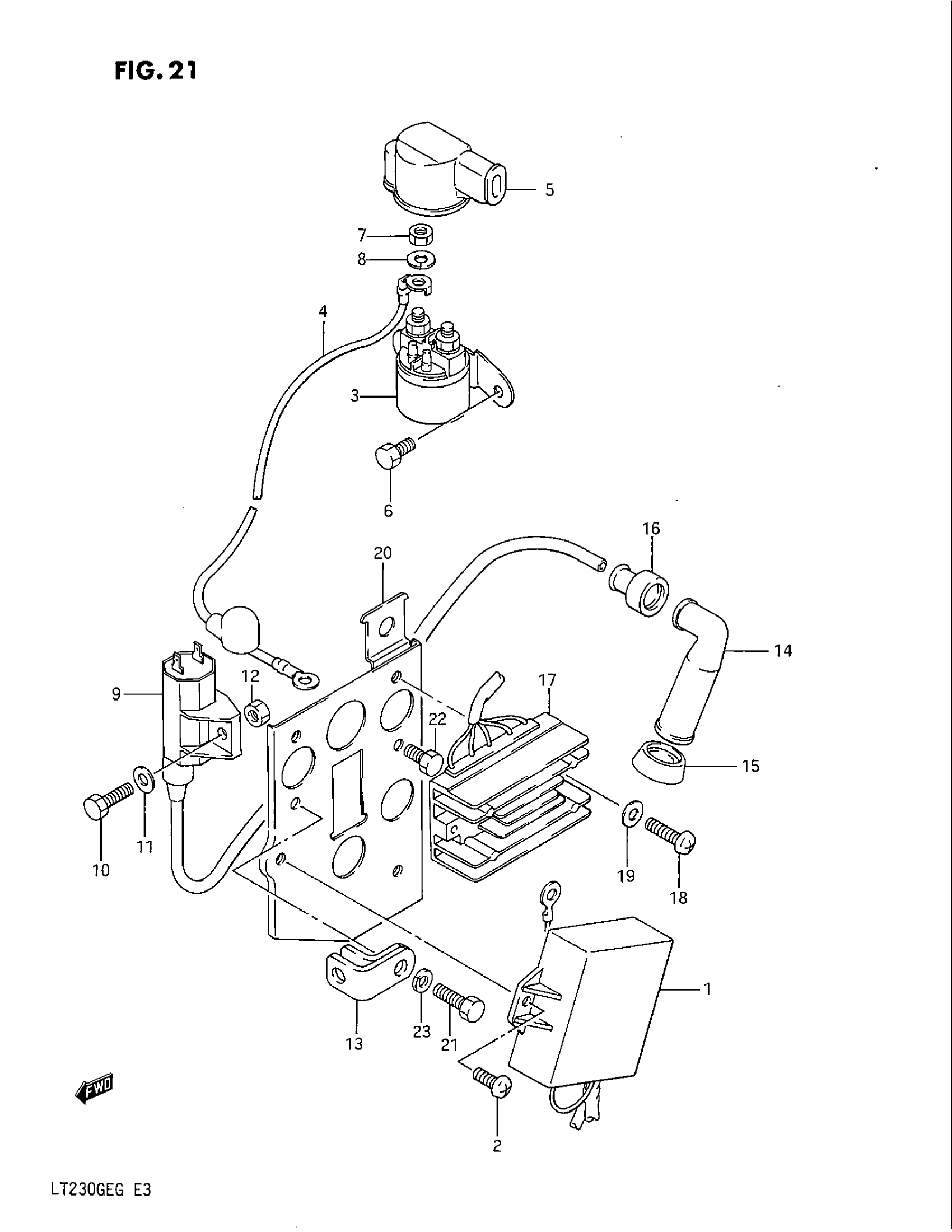

Suzuki LT230GE (1986) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-18A00

Unavailable

2

SCREW This part replaces 02152-06126.

02112-1612B

$3.30

3

RELAY, STARTING MOTOR

31800-49100

$92.64

4

LEAD WIRE, STARTING MOTOR This part replaces 33850-18A00.

33850-19B00

$45.52

5

CAP, TERMINAL This part replaces 31861-44500.

31861-46D00

$6.58

6

SCREW

09128-06013

$1.28

7

NUT This part replaces 08310-11066.

08310-0006A

$1.89

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.89

9

UNIT & COIL ASSY, IGNITION This part replaces 33410-18A00.

33410-22AV0

$126.67

10

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.82

11

.WASHER This part replaces 08322-21066.

08322-0106B

$2.31

12

NUT This part replaces 08310-11066.

08310-0006A

$1.89

13

PLATE, COIL

47421-18A00

Unavailable

14

CAP, SPARK PLUG

33510-43010

$23.90

15

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.50

16

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15

17

RECTIFIER ASSY This part replaces 32800-49430.

32800-43X51

Unavailable

18

SCREW This part replaces 02112-06206.

02112-0620A

$1.49

19

.WASHER This part replaces 08322-21066.

08322-0106B

$2.31

20

HOLDER, ELECTRIC PARTS

47410-18A00

Unavailable

21

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01

22

BOLT This part replaces 01107-06128.

01500-06127

$2.01

23

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89
