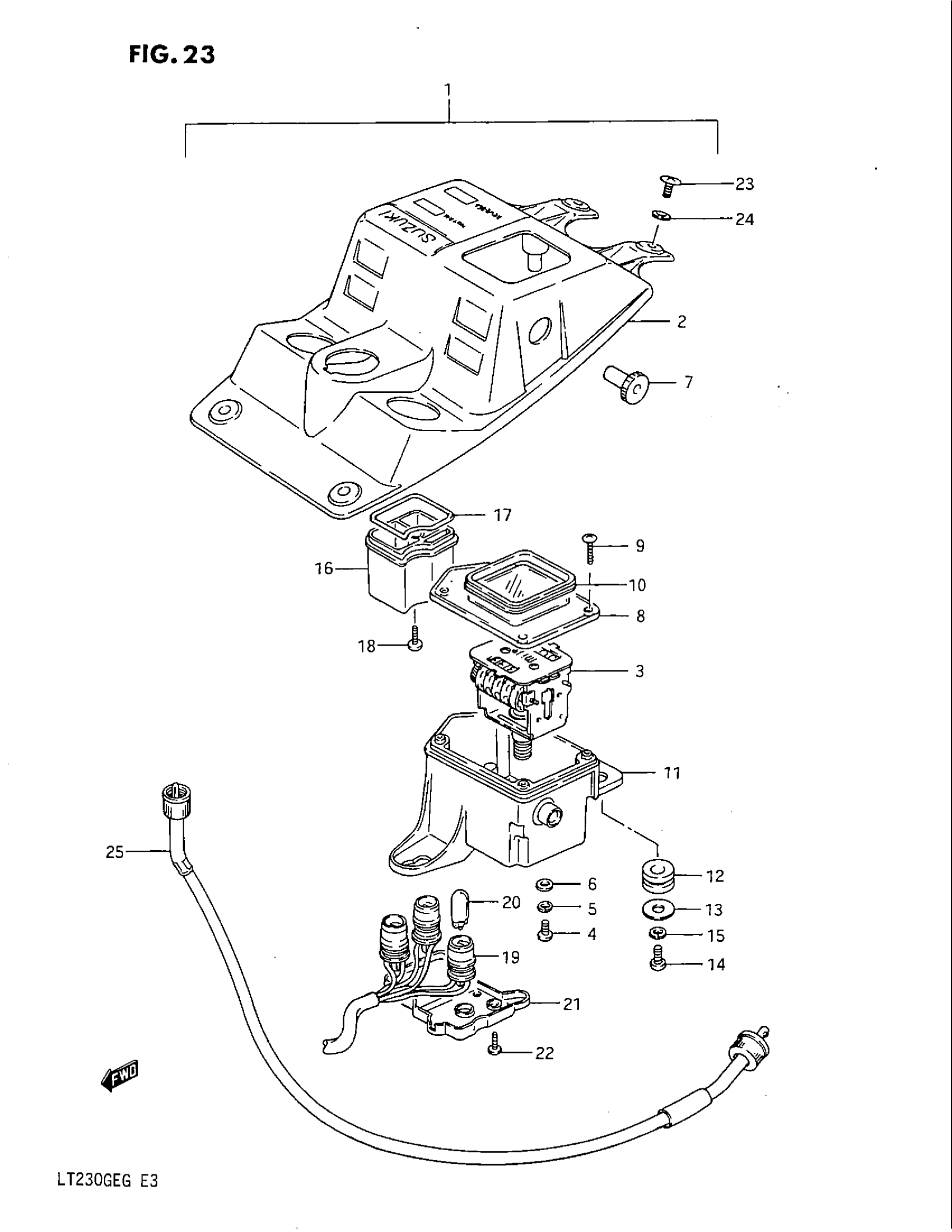

Suzuki LT230GE (1986) ODOMETER Diagram

#

Description
Price

1

ODOMETER ASSY (MILE) | Includes Item(s) 2 - 22

34720-18A10

Unavailable

2

HOOD, ODOMETER

34722-18A00

Unavailable

3

ODOMETER

34721-18A10

Unavailable

4

SCREW This part replaces 02112-04088.

02112-04087

$1.10

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

6

WASHER This part replaces 08322-21048.

08322-01047

$1.88

7

KNOB, TRIP

34124-18A00

Unavailable

8

LENS, ODOMETER

34724-18A00

Unavailable

9

SCREW (3X16) This part replaces 34744-18A00.

09132-03008

$1.55

10

CUSHION

34726-18A00

Unavailable

11

CASE, ODOMETER

34723-18A00

Unavailable

12

CUSHION

34189-45410

Unavailable

13

WASHER (4.5X16X1.2) This part replaces 34129-18A00.

09160-04026

$1.86

14

SCREW This part replaces 02112-04108.

02112-04107

$1.55

15

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

16

CASE, PILOT LAMP

34127-18A00

Unavailable

17

GASKET

34128-18A00

Unavailable

18

SCREW (3X16) This part replaces 34744-18A00.

09132-03008

$1.55

19

SOCKET

34170-18A00

Unavailable

20

BULB (12V,3.4W)

09471-12028

$1.98

21

COVER SOCKET

34743-18A00

Unavailable

22

SCREW

02142-03126

Unavailable

23

SCREW This part replaces 02112-04167.

02112-0416A

$1.24

24

WASHER This part replaces 08322-21048.

08322-01047

$1.88

25

CABLE ASSY, ODOMETER

34910-18A00

Unavailable
