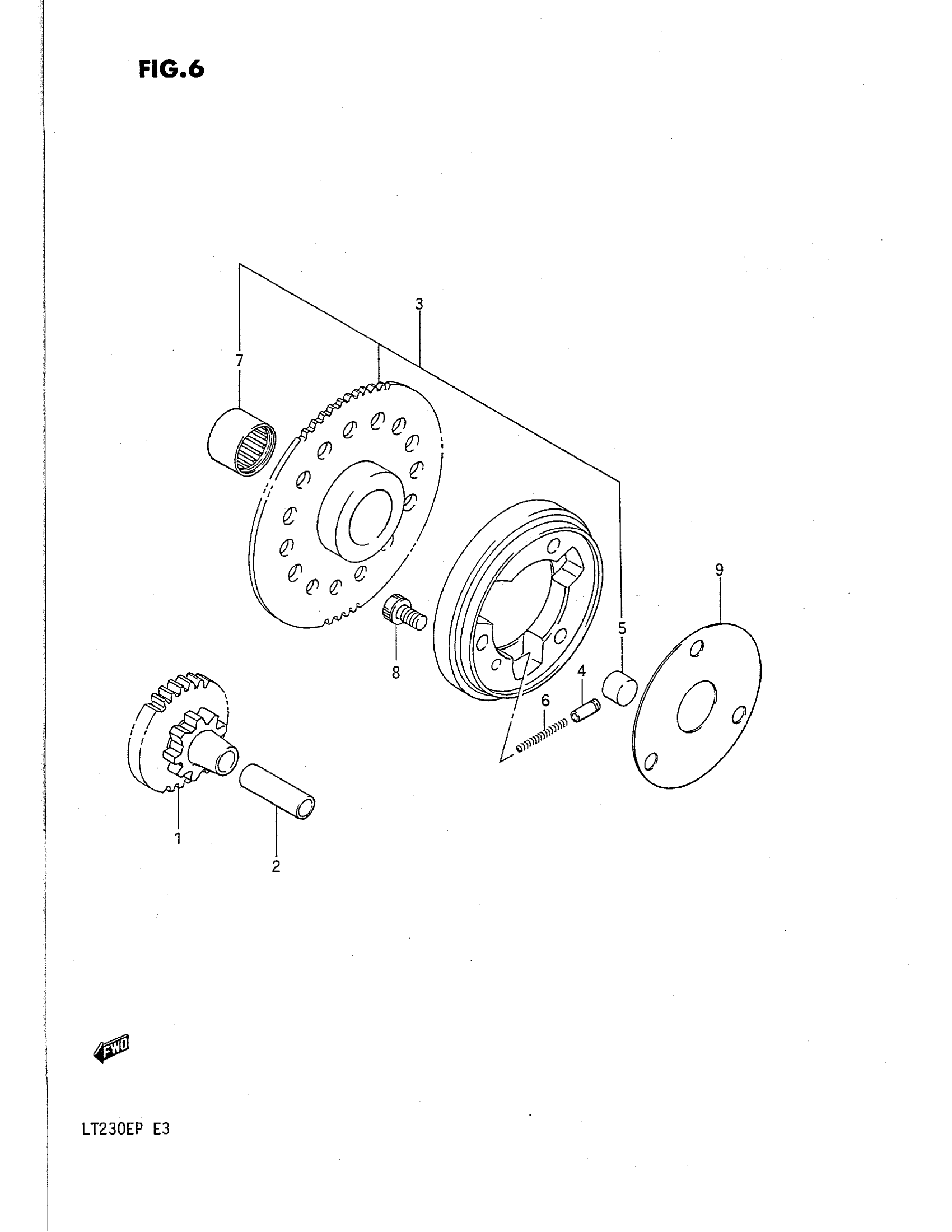

Suzuki LT230E (1993) STARTER CLUTCH (MODEL H) Diagram

#

Description

Price

1

GEAR, STARTER IDLE | NT:16/50

12611-18A01

Unavailable

2

PIN

09206-13009

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 - 7 This part replaces 12600-18841.

12600-18842

Unavailable

4

PIECE, PUSH This part replaces 12633-24500.

12633-31000

$8.64

5

ROLLER

09261-15001

$3.12

6

SPRING

09440-04015

$2.24

7

BEARING

09263-22037

$28.90

8

BOLT This part replaces 09106-08043.

07130-0816A

$3.00

9

SHIM REFER TO FIG.6A (B-8) FOR MODE | M/N/P

12649-18A00

Unavailable
