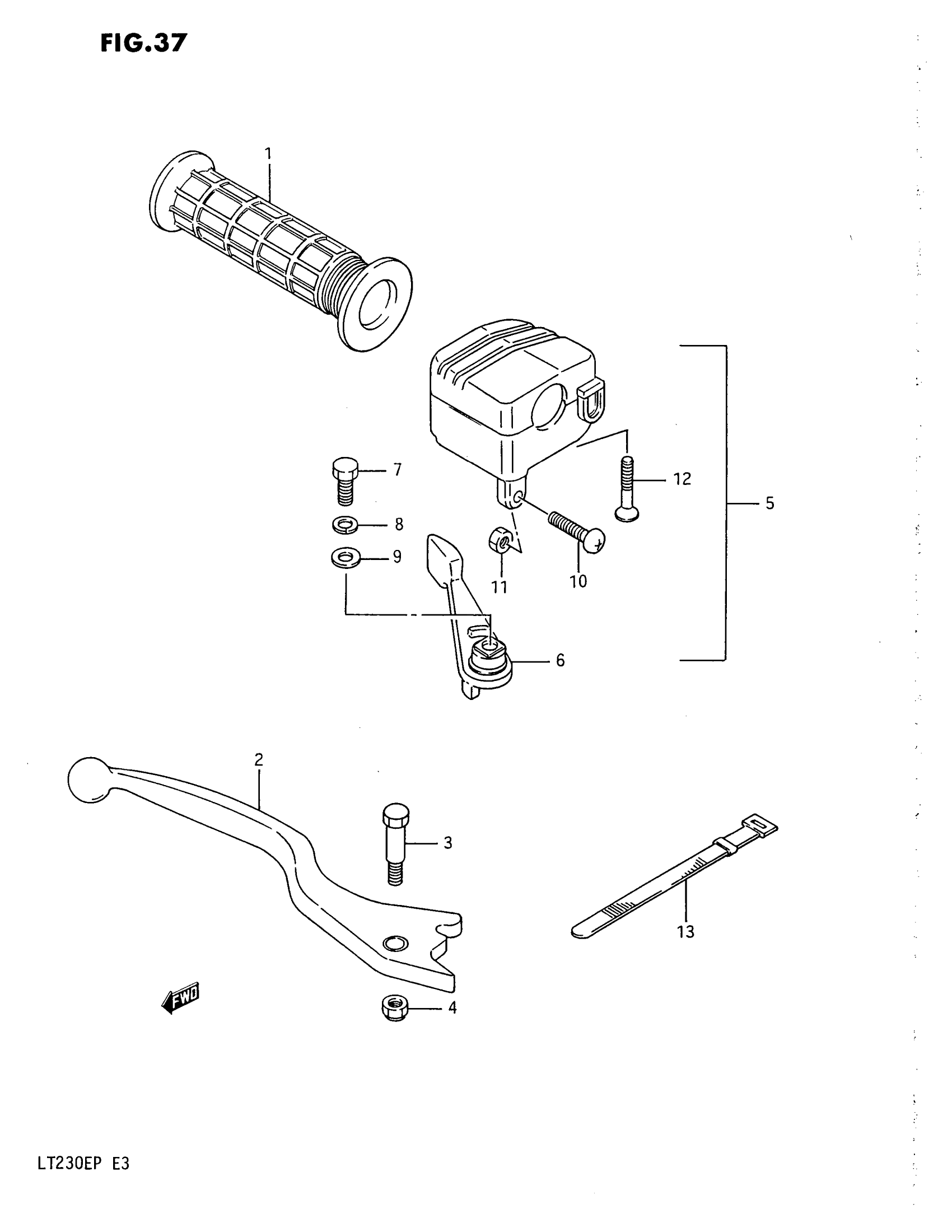

Suzuki LT230E (1993) RIGHT HANDLE SWITCH (MODEL H/J/K/L) Diagram

#

Description

Price

1

GRIP

57211-22A01-291

$11.23

2

LEVER, BRAKE This part replaces 57420-05A00.

57420-49101

$32.45

3

BOLT

57431-05A00

$8.17

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.38

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 12 This part replaces 57100-18A00.

57100-39DB0

$128.28

6

LEVER

57151-24301

$12.74

7

BOLT This part replaces 01107-06166.

01500-0616A

$1.82

8

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.89

9

WASHER

09160-06019

$1.43

10

SCREW

09125-05066

$1.52

11

.NUT This part replaces 08310-22055.

09140-05006

$2.77

12

SCREW

02132-05307

$1.63

13

BAND REFER TO FIG.37A(F-13) FOR MOD

09407-12402

$2.82
