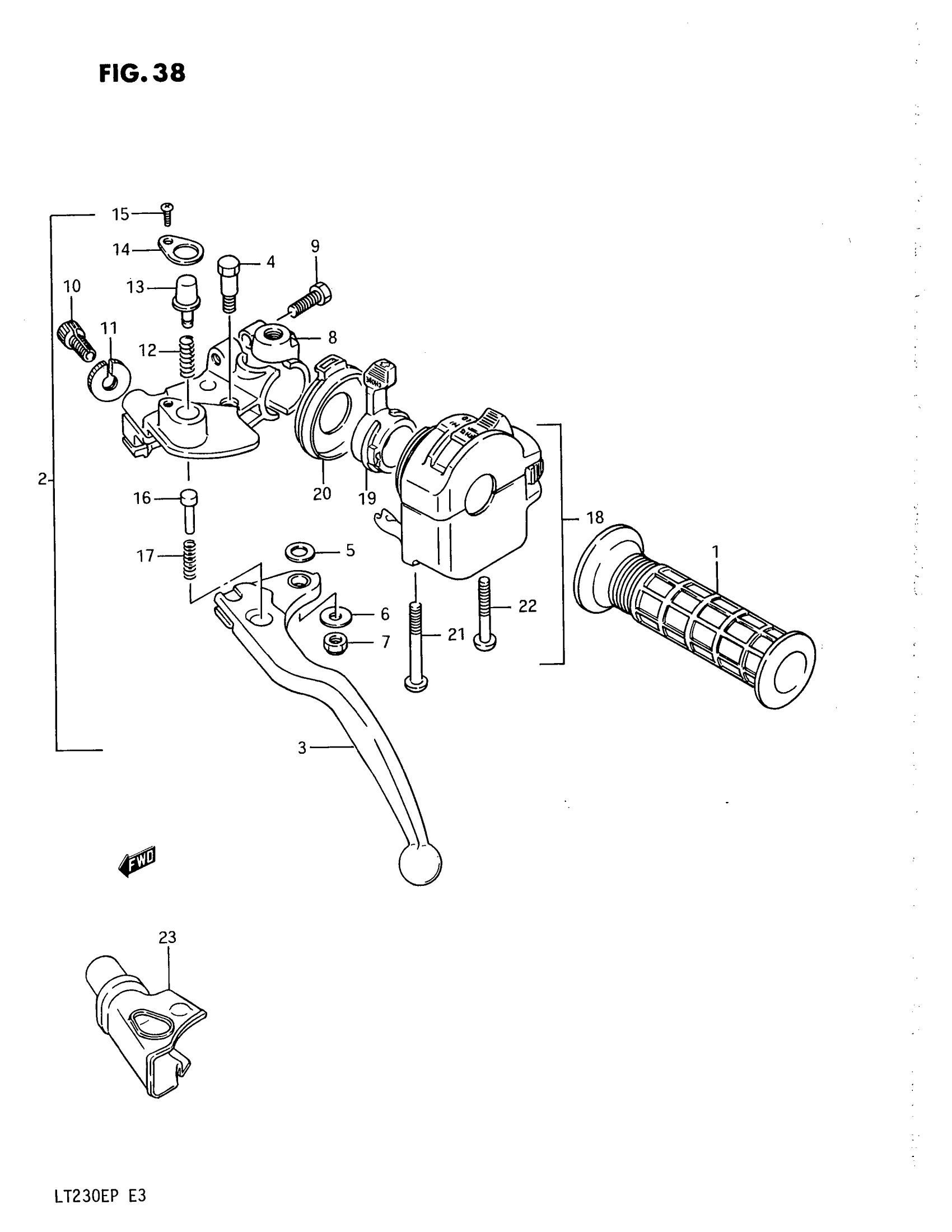

Suzuki LT230E (1993) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP

57211-22A01-291

$10.74

2

LEVER ASSY, PARKING BRAKE | Includes Item(s) 3 - 17

57500-35B00

Unavailable

3

LEVER

57620-19A00

Unavailable

4

BOLT This part replaces 57431-33450.

57531-14A00

$7.03

5

WASHER

08221-08144

$2.43

6

WASHER (6.5X15X1.6) This part replaces 57912-19A00.

09160-06128

$2.00

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

8

BRACKET

57512-44500

Unavailable

9

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.77

10

ADJUSTER

57441-44400

$5.91

11

NUT This part replaces 57442-44400.

57442-11010

$2.80

12

SPRING

57817-19A00

Unavailable

13

BUTTON

57811-19A00

Unavailable

14

COVER

57815-19A00

Unavailable

15

SCREW

57619-19A00

$4.28

16

PIN

57813-35B00

Unavailable

17

SPRING

57818-19A00

$4.12

18

SWITCH ASSY,HAN | MODEL H This part replaces 37400-35B00.

37400-02C01

Unavailable

18

SWITCH ASSY,HAN | MODEL J This part replaces 37400-35B01.

37400-02C01

Unavailable

18

SWITCH ASSY,HAN | MODEL K/L/M/N/P; Includes Item(s) 19 - 22 This part replaces 37400-35B02.

37400-02C01

Unavailable

19

LEVER, CHOKE | MODEL H !37571-19B01 W/37576-19B01 This part replaces 37571-19B00.

37571-19B01

$11.12

19

LEVER, CHOKE | MODEL J/K/L/M/N/P

37571-19B01

$11.12

20

COVER, CHOKE | MODEL H This part replaces 37576-19B00.

37576-19B01

$6.21

20

COVER, CHOKE | MODEL J/K/L/M/N/P

37576-19B01

$6.21

21

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

22

SCREW This part replaces 02112-05405.

02112-0540B

$2.88

23

COVER, CLUTCH

57541-19A00

Unavailable
