1993 Suzuki LT230E Recoil Starter Diagram

← All diagrams

Find the part on the Recoil Starter diagram for your 1993 Suzuki LT230E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

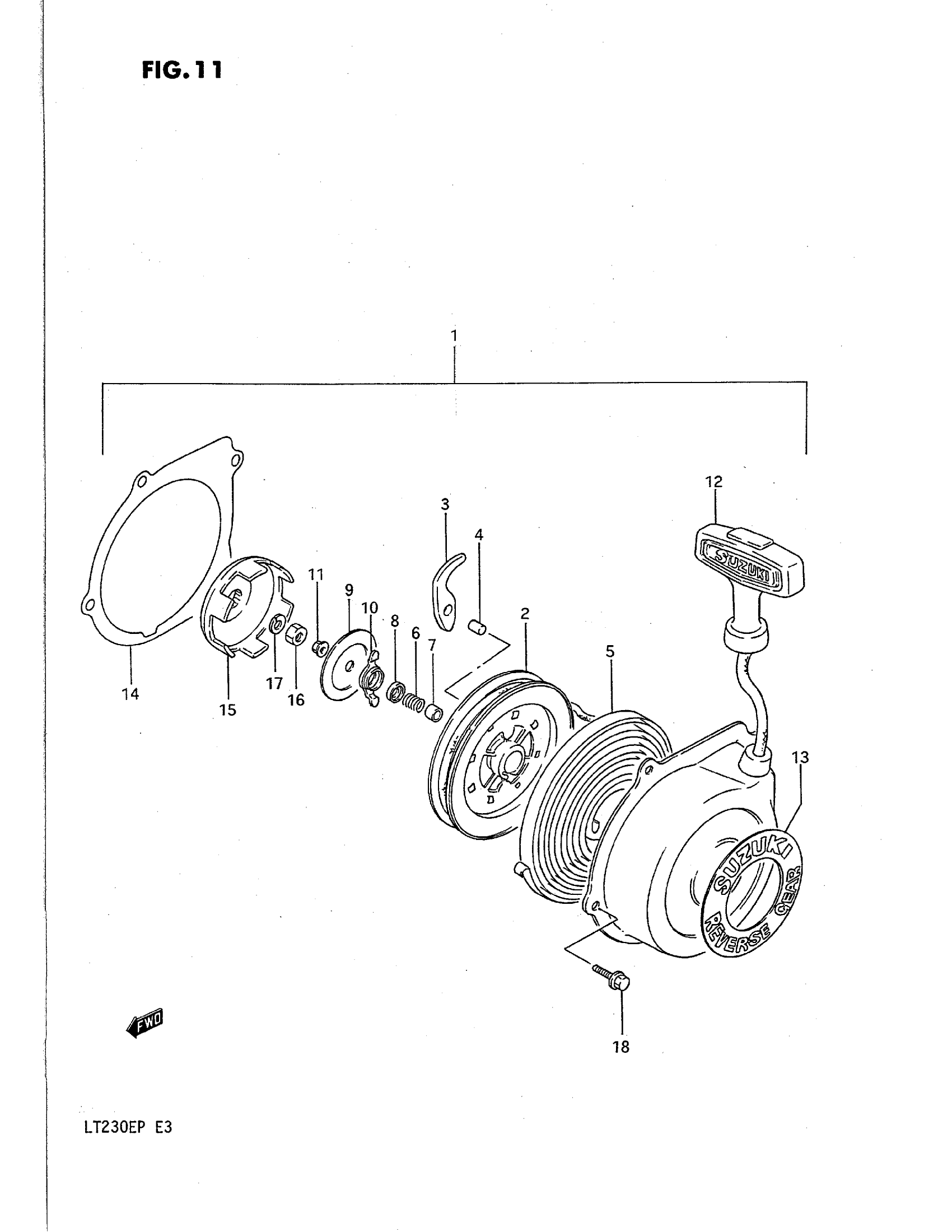

1993 Suzuki LT230E Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

REEL

18120-24400

1

$36.85

In stock

3

RATCHET

18131-24411

1
Out of stock

4

PIN, RATCHET

18344-24400

1
Out of stock

5

.SPRING,SPIRAL

18142-24400

1
Out of stock

6

SPRING, FRICTION

18153-24400

1
Out of stock

7

SHAFT, SUB

18176-24400

1
Out of stock

8

COVER, SPRING

18275-24400

1
Out of stock

9

RATCHET SET This part replaces 18151-24400.

18130-24400

1
Out of stock

10

..GUIDE,RATCHET

18132-24400

1
Out of stock

11

NUT This part replaces 18334-24400.

08316-1006B

1
Out of stock

12

ROPE ASSY

18200-24400

1

$35.14

In stock

13

EMBLEM

68398-24410

1

$18.33

In stock

14

1

$6.00

In stock

15

CUP, STARTER

18411-18A03

1
Out of stock

16

NUT This part replaces 08310-12108.

08310-00107

1
Out of stock

17

LOCK WASHER This part replaces 08321-21107.

08321-01107

1
Out of stock

18

BOLT, EXHAUST DRAIN This part replaces 01547-06125.

01547-06127

4
Out of stock
