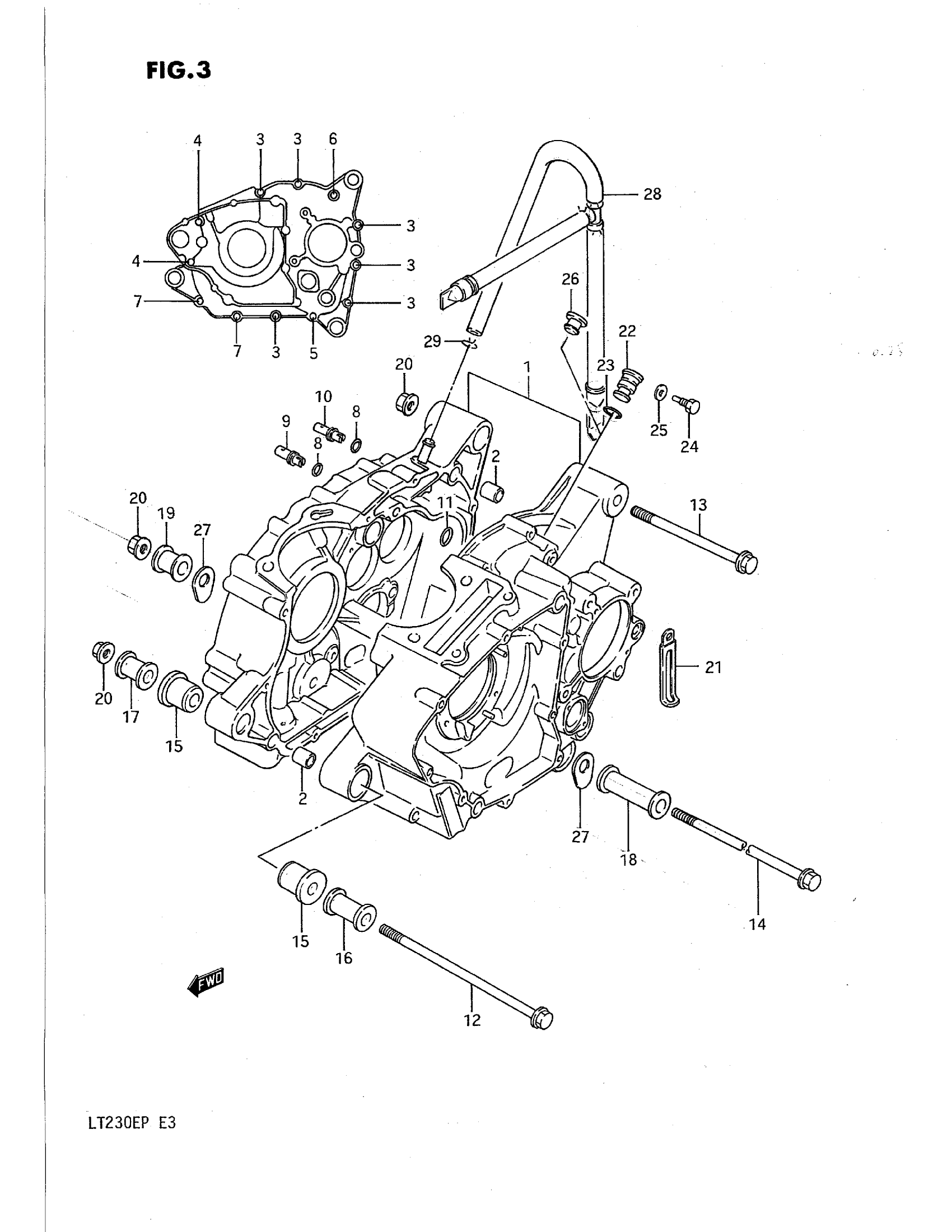

Suzuki LT230E (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | %E.NO.117324 This part replaces 11301-35860.

11301-35861

Unavailable

1

CRANKCASE SET | E.NO.117325%; Includes Item(s) 2 - 11

11301-35861

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.25

3

BOLT

01547-06407

$2.40

4

BOLT

01547-06507

$2.50

5

BOLT

01547-06607

$3.47

6

BOLT,CARB This part replaces 01547-06757.

09103-06522

$3.20

7

BOLT

01547-06857

$3.58

8

O RING, OIL GALLERY JET

09280-04004

$1.76

9

JET, OIL GALLERY

09493-28010

$18.00

10

JET, OIL GALLERY

09493-32006

$18.33

11

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

$3.13

12

BOLT (10X245)

09103-10154

$22.23

13

BOLT (10X130)

09103-10237

$10.53

14

BOLT (10X305)

09103-10153

$26.02

15

SPACER

11621-35B00

Unavailable

16

SPACER (L:40)

11610-20A00

Unavailable

17

SPACER (L:28)

11610-12B00

Unavailable

18

SPACER (L:65)

11610-45410

Unavailable

19

SPACER (L:20)

11610-38400

$14.73

20

NUT

09159-10047

$8.92

21

CLAMP This part replaces 09404-06402.

09404-06039

$1.79

22

PLUG, HOLE | %E.NO.117324

26442-22A00

Unavailable

23

O RING | %E.NO.117324

09280-10001

$2.12

24

BOLT (6X10) | %E.NO.117324 This part replaces 09135-06013.

09135-06501

$2.84

25

GASKET | %E.NO.117324

09168-06004

$1.46

26

CAP | E.NO.117325%131151

09250-09006

Unavailable

26

CAP | E.NO.131152%

09250-11003

$2.72

27

SHIM (T:0.3)

09181-10012

Unavailable

27

SHIM (T:0.5)

09181-10013

Unavailable

28

TUBE ASSY, BREATHER | MODEL J; Includes Item(s) 29

13850-35B10

Unavailable

29

CLIP | MODEL J

09401-14301

$2.17
