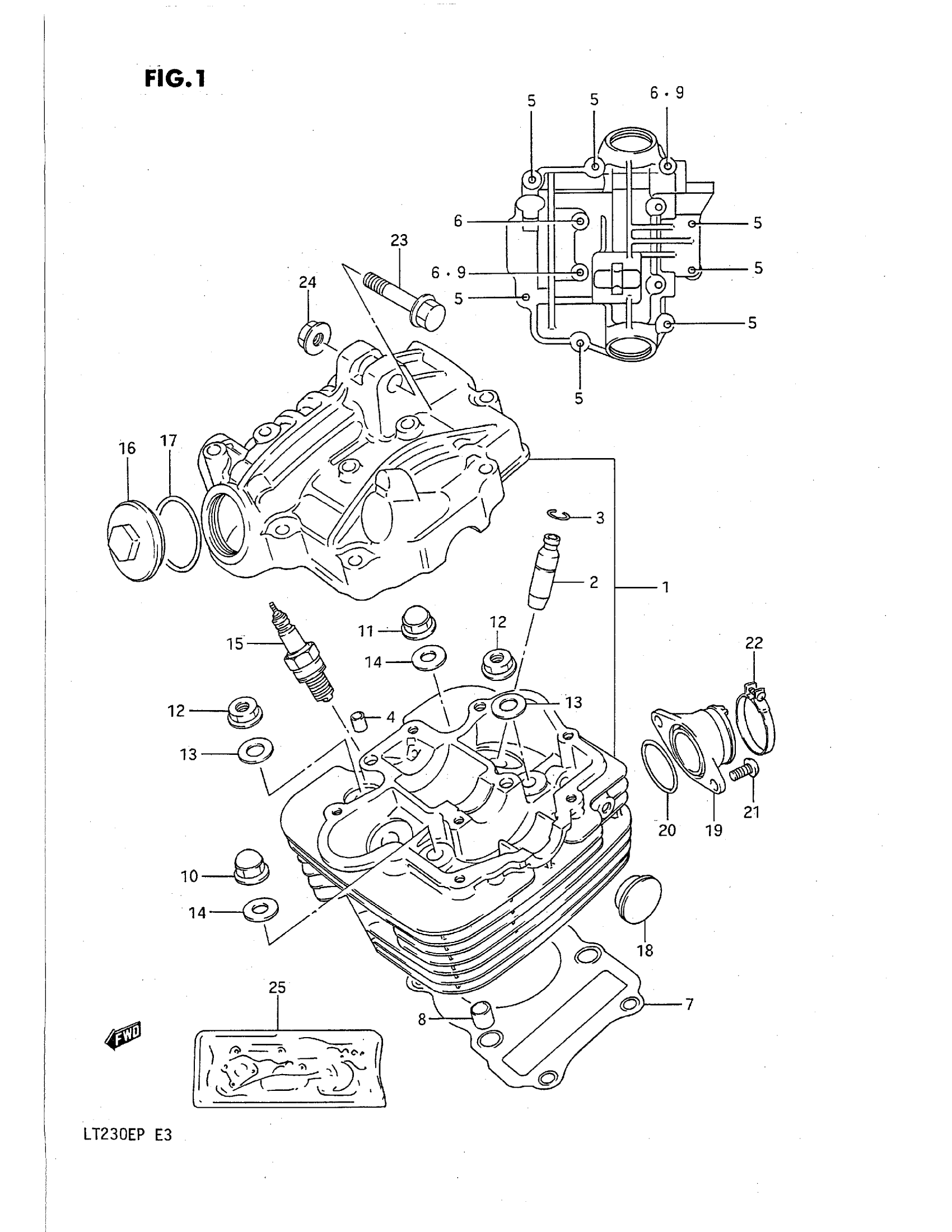

Suzuki LT230E (1993) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 6

11100-35B00

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$30.22

3

.RING (10X85)

09381-10004

$1.35

4

PIN

09206-08001

$1.77

5

BOLT This part replaces 01517-06358.

01550-06357

$2.80

6

BOLT (6X60)

09103-06064

$2.13

7

GASKET, CYLINDER HEAD

11141-18A00

$13.01

8

PIN

04211-11169

$1.77

9

WASHER

09168-06023

$2.01

10

NUT

09159-08074

$4.90

11

NUT

09159-08074

$4.90

12

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

13

WASHER

09160-08039

$1.95

14

GASKET | %E.NO.131151 This part replaces 09168-08012.

09168-08013

$2.80

14

GASKET (8.5X17X2.3) | E.NO.131152%

09168-08021

$2.66

15

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$2.80

15

SPARK PLUG (DENSO,X22ESR-U) This part replaces 09482-00183.

09482-00222

$4.90

15

SPARK PLUG (CHAMPION,A8YC) | EXECUTED LOCALLY

09482-00292

Unavailable

16

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$11.16

17

.O RING (D:3,ID:29.5)

09280-30001

$1.70

18

PLUG, HEAD

09241-22002

$4.73

19

PIPE, INTAKE

13110-22A01

Unavailable

20

O RING

09280-34004

$4.55

21

SCREW This part replaces 02152-06205.

02112-0620A

$1.45

22

CLAMP

09402-46208

$4.19

23

BOLT,8X50 This part replaces 09103-08082.

09103-08395

$3.36

24

NUT This part replaces 08319-21085.

08319-2108A

$2.13

25

GASKET SET | MODEL H/J/K/L/M/N This part replaces 11400-18860.

11400-18867

Unavailable

25

GASKET SET | MODEL P This part replaces 11400-18863.

11400-18867

Unavailable
