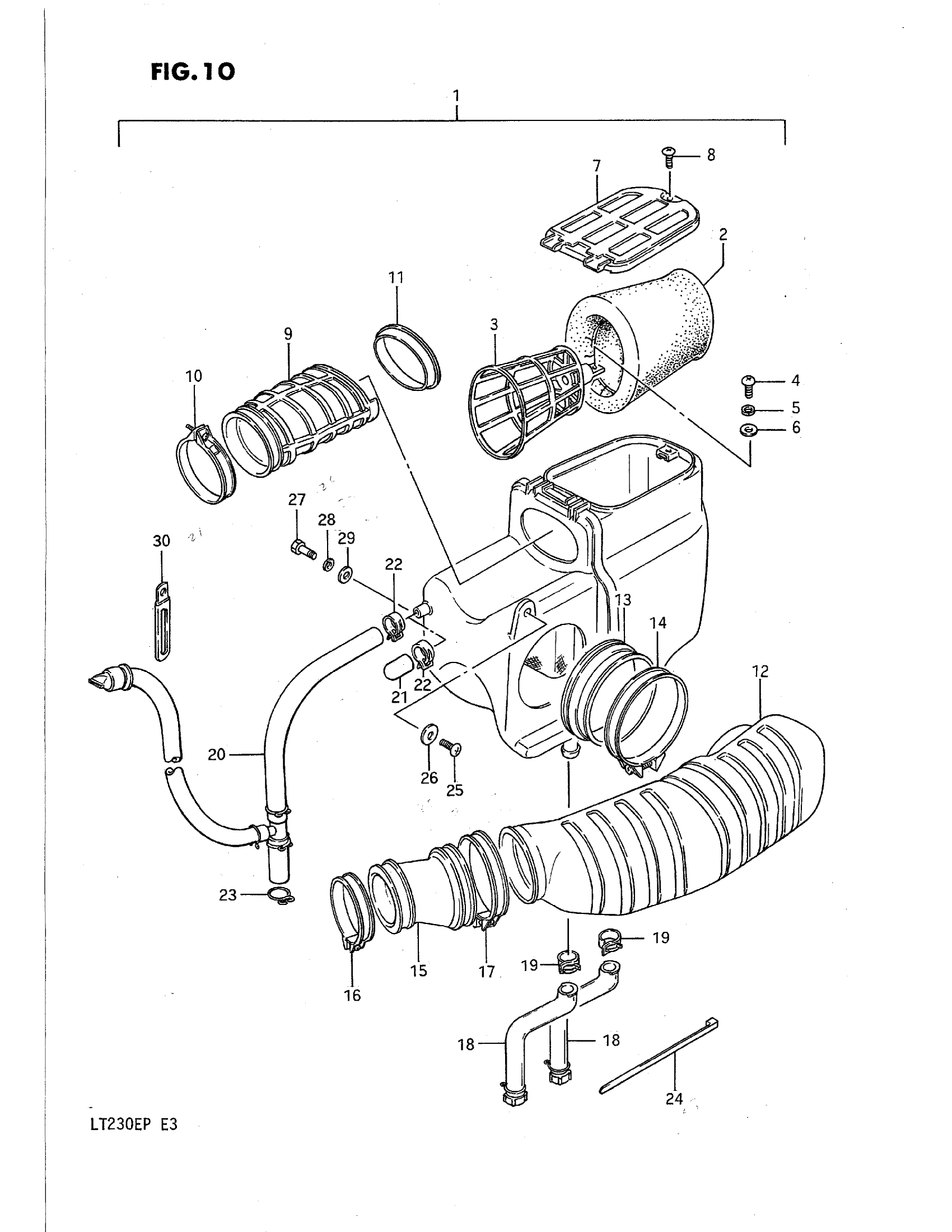

Suzuki LT230E (1993) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL H This part replaces 13700-35B00.

13700-35B01

Unavailable

1

CLEANER ASSY, AIR | MODEL J This part replaces 13700-35B10.

13700-35B01

Unavailable

1

CLEANER ASSY, AIR | MODEL K/L/M/N/P; Includes Item(s) 2 - 24

13700-35B01

Unavailable

2

FILTER

13781-18A00

$23.93

3

HOLDER, FILTER

13791-18A01

Unavailable

4

SCREW

02112-06167

$1.43

5

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

6

WASHER This part replaces 08322-21067.

08322-01067

$1.86

7

CAP

13750-18B00

Unavailable

8

SCREW This part replaces 02142-05164.

02142-0516A

$1.43

9

JOINT, INLET

13894-22A00

Unavailable

10

CLAMP This part replaces 09402-56208.

09402-56901

$4.84

11

RING, INLET

13898-18A00

Unavailable

12

CASE, CHAMBER

13711-22A00

Unavailable

13

TUBE, JOINT

13739-00A00

Unavailable

14

CLAMP

09402-80207

$8.20

15

PIPE, OUTLET

13881-35B00

Unavailable

16

CLAMP

09402-52208

$4.84

17

CLAMP

09402-66208

$5.03

18

TUBE, DRAIN | MODEL H/J

13870-22A00

Unavailable

18

TUBE, DRAIN | MODEL K/L/M/N/P This part replaces 13870-35B00.

13870-22A00

Unavailable

19

CLIP This part replaces 13824-43400.

09401-14404

$2.29

20

TUBE, BREATHER | MODEL H/K/L/M/N/P

13850-22A02

Unavailable

21

.PLUG | MODEL J

13859-41B10

$6.94

22

CLIP This part replaces 13824-43400.

09401-14404

$2.29

23

CLIP

09401-14301

$2.17

24

BAND, DRAIN TUBE

13826-01400

Unavailable

25

SCREW

02112-06167

$1.43

26

WASHER This part replaces 09160-06006.

09160-06084

$1.77

27

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

28

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

29

WASHER This part replaces 08322-21067.

08322-01067

$1.86

30

CLAMP(L:80) | MODEL H/K/L/M/N/P This part replaces 09404-06418.

09404-06036

$1.76
