2004 Suzuki LT160 OIL Pump/fuel Pump Diagram

← All diagrams

Find the part on the OIL Pump/fuel Pump diagram for your 2004 Suzuki LT160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

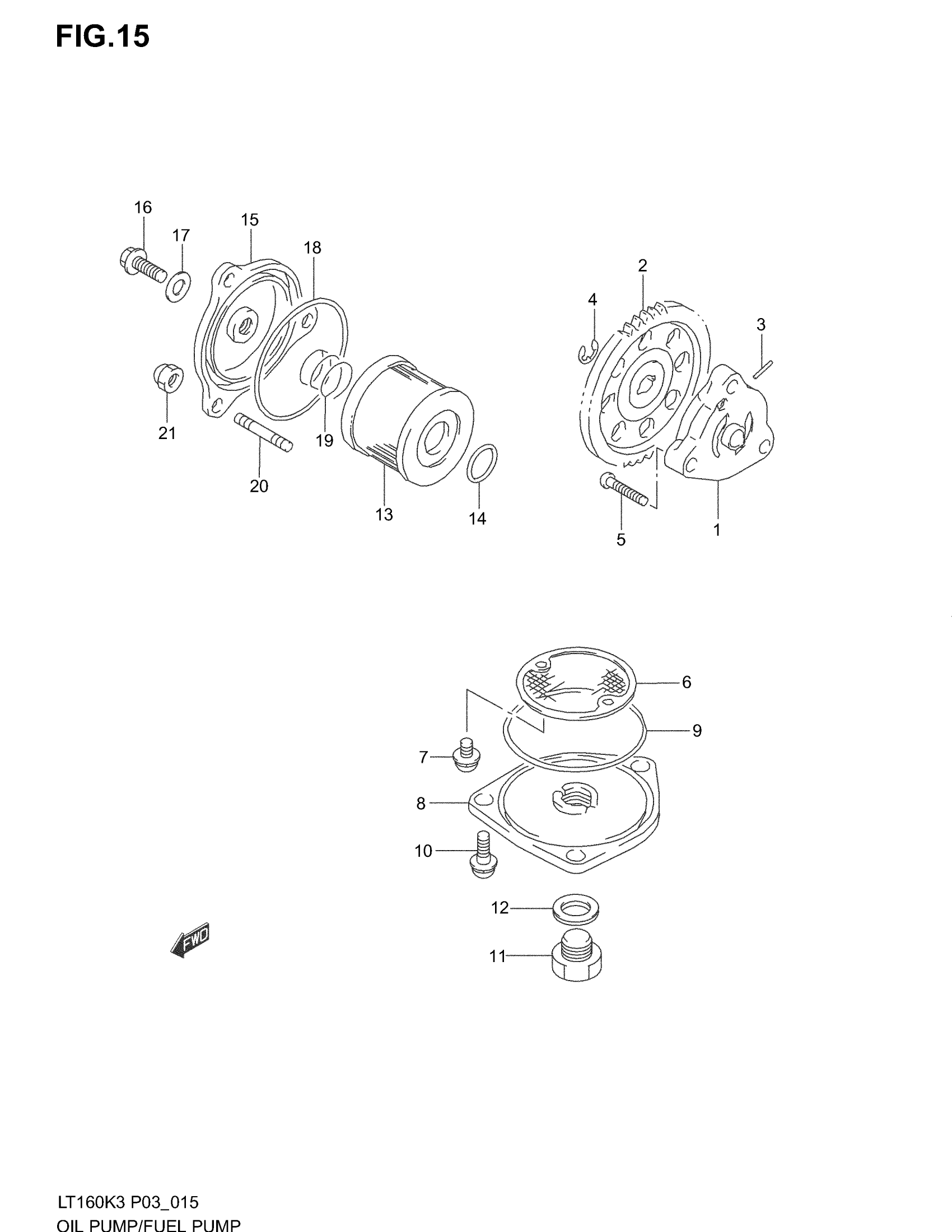

2004 Suzuki LT160 OIL Pump/fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-01412

1

$176.20

In stock

2

GEAR, DRIVEN (NT:47)

16331-20B00

1

$95.63

In stock

3

PIN

09261-02008

1

$1.77

In stock

4

CIRCLIP This part replaces 08332-11063.

08332-1106A

1
Out of stock

5

3

$1.55

In stock

6

STRAINER, ENGINE OIL

16520-05202

1

$5.95

In stock

7

SCREW This part replaces 02112-75123.

02112-7512A

2
Out of stock

8

CAP, OIL STR

16523-05200

1

$14.63

In stock

9

1

$3.08

In stock

10

..BOLT This part replaces 01547-06203.

01547-0620B

3
Out of stock

11

PLUG, DRAIN

09247-14026

1

$3.63

In stock

12

GASKET

09168-14002

1
Out of stock

13

FILTER ASSY, ENG OIL

16510-25C00

1

$7.44

In stock

14

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

15

CAP, OIL FILTER

16512-22A00

1

$26.24

In stock

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

17

GASKET (8.2X14X1.6)

09168-08015

1

$2.92

In stock

18

1

$6.01

In stock

19

SPRING

09440-18002

1
Out of stock

20

3

$2.05

In stock

21

3

$1.97

In stock
