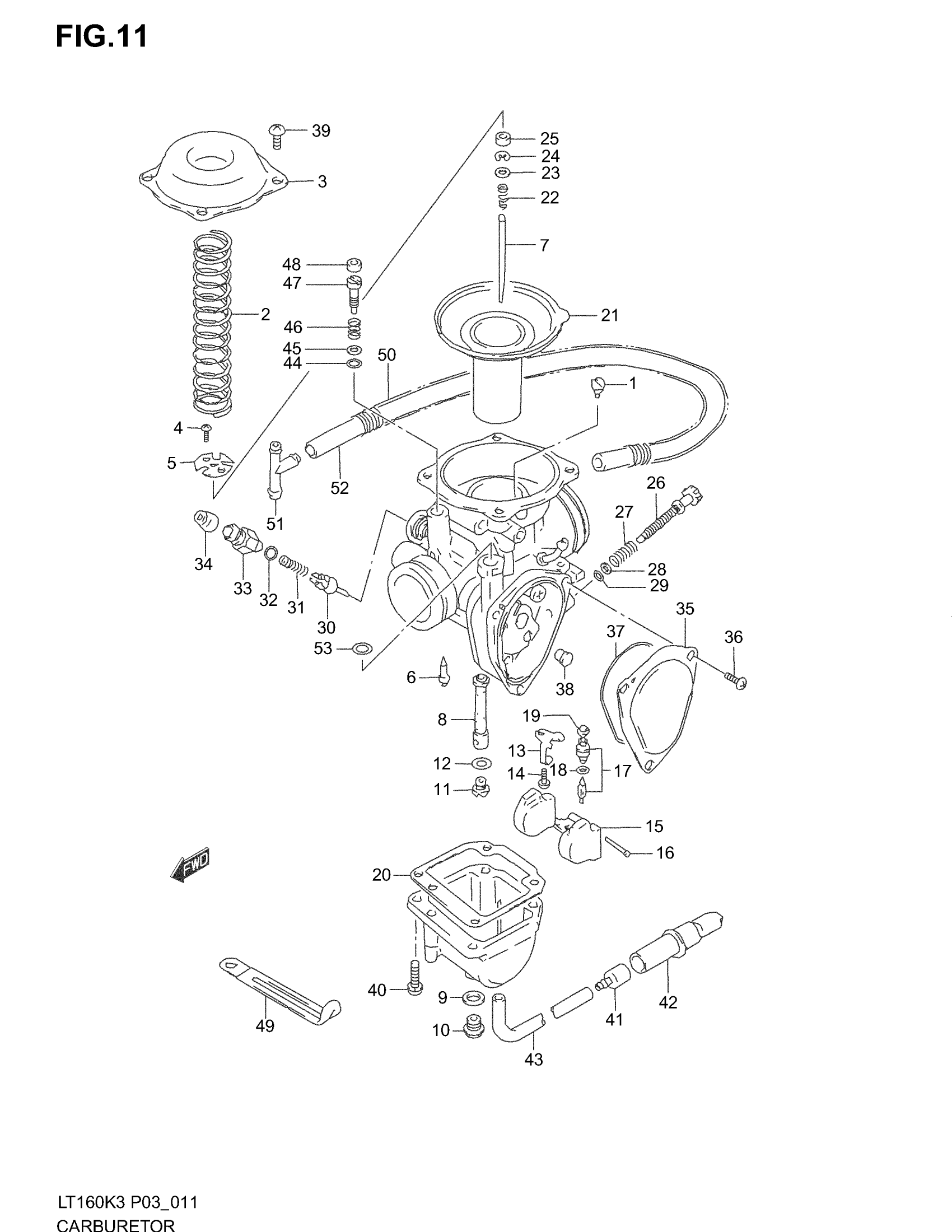

Suzuki LT160 (2004) CARBURETOR (P33) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 48

13200-02C10

Unavailable

1

JET, PILOT AIR (170)

09491-34007

$13.68

2

SPRING, THROTTLE VALVE

13503-05350

Unavailable

3

COVER

13502-33210

Unavailable

4

SCREW This part replaces 02112-03063.

02112-0306B

$1.66

5

PLATE

13389-37400

$7.98

6

JET, PILOT (32.5)

09492-32006

$12.30

7

NEEDLE, JET (4DZ42)

13383-02C10

Unavailable

8

JET, NEEDLE (P-2)

09494-00903

Unavailable

9

GASKET

13246-44080

$2.80

10

SCREW, DRAIN

13247-44080

$7.85

11

JET, MAIN (130.0)

09491-26011

$12.38

12

WASHER

13382-03110

$2.80

13

PLATE

13373-11400

$6.93

14

SCREW This part replaces 02112-04063.

02112-0406B

$1.61

15

FLOAT

13250-05300

$41.47

16

PIN

13254-92311

$2.31

17

VALVE ASSY, NEEDLE (2.0)

13370-44500

$48.77

18

O RING

13374-35C00

$5.73

19

NET

13376-19F00

$9.84

20

GASKET, FLOAT CHAMBER

13251-20E20

$14.98

21

DIAPHRAGM ASSY This part replaces 13500-053D0.

13500-053D1

$232.58

22

SPRING

13388-44030

$9.17

23

WASHER

13382-44030

$3.66

24

.E-RING

13394-40D20

$6.15

25

RING

13387-47010

$7.11

26

ADJUSTER

13267-13D01

Unavailable

27

SPRING

13268-37420

$6.00

28

WASHER

13615-02C10

Unavailable

29

O RING

13295-02C10

Unavailable

30

PLUNGER ASSY

13411-01400

$12.73

31

SPRING

13417-01010

$4.56

32

O RING

13278-02330

$2.80

33

HOLDER, GUIDE

13418-43200

$11.83

34

.CAP This part replaces 13681-04010.

13681-04011

$4.71

35

COVER, THROTTLE

13502-02C10

$18.58

36

SCREW

13602-48B00

$4.70

37

O RING

13673-02C10

$30.17

38

GUIDE, CABLE

13591-19B50

$9.84

39

SCREW

02112-05087

$1.49

40

SCREW

13601-04148

$2.80

41

VALVE ASSY, CHECK

13520-02C01

$56.53

42

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$15.30

43

HOSE

13684-02C30

Unavailable

44

O-RING This part replaces 13295-29900.

13295-29901

$4.15

45

WASHER

13291-29900

$1.87

46

.SPRING (NT:45)

13268-47070

$4.15

47

SCREW, PILOT (2,1/4)

13279-45400

$16.77

48

PLUG

13281-05A00

$4.40

49

CLAMP This part replaces 09404-06432.

09404-06039

$1.79

50

SPRING, AIR VENT HOSE

09440-13051

$10.19

51

UNION, 3 WAY

09367-08004

$5.25

52

HOSE(5X8.2X600) | L:600!500 This part replaces 09359-50823-600.

09359-50824-600

$7.46

53

O RING, THROTTLE CABLE

09280-06008

$2.13
