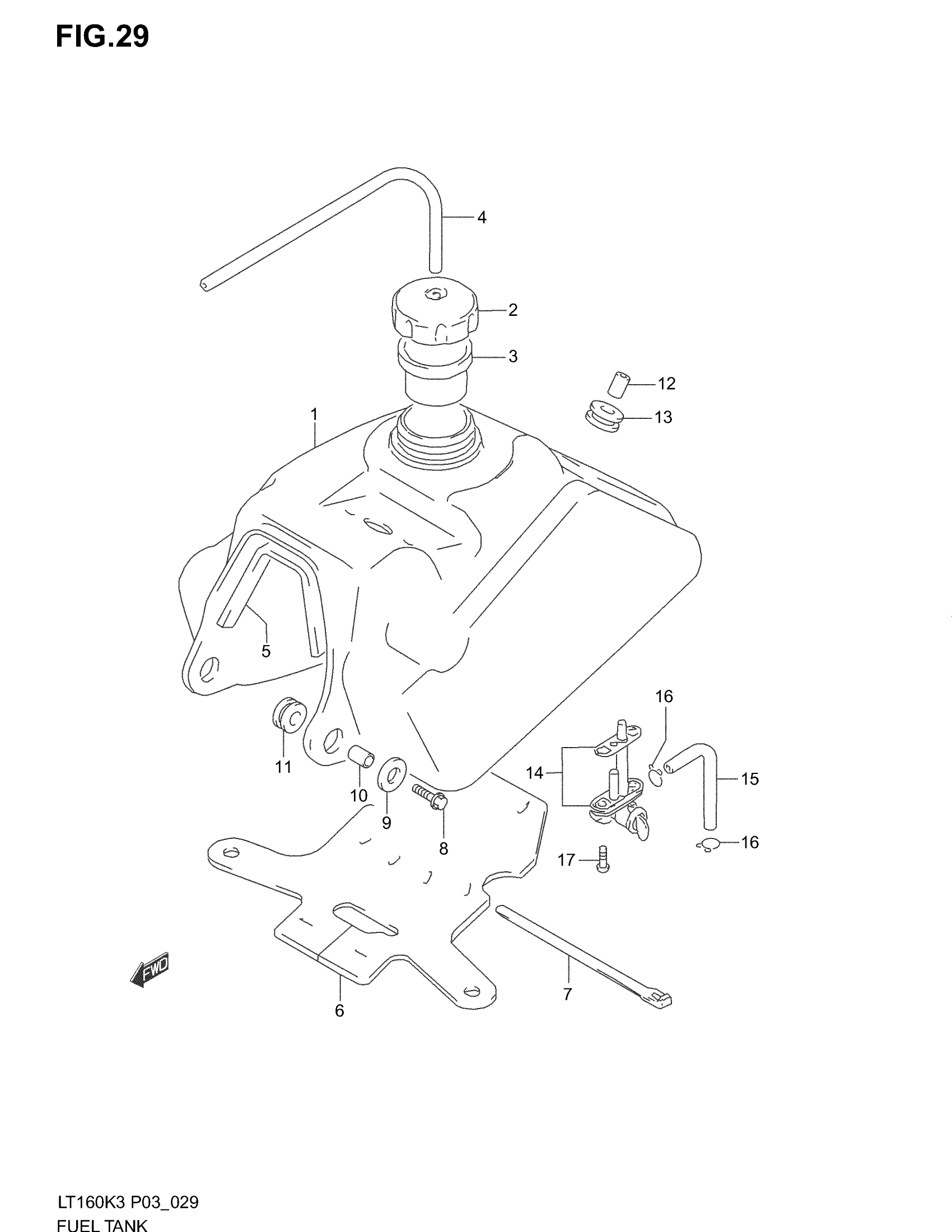

Suzuki LT160 (2004) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44110-02C00

Unavailable

2

CAP, FUEL TANK

44200-19A01

$46.11

3

TUBE, FILLER INLET

44199-19A00

$6.18

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.48

5

.RUBBER, FUEL TANK FR

44261-22A00

$4.37

6

MUDGUARD, CLEANER INLET

47157-02C00

Unavailable

7

CLAMP

09407-18402

$2.29

8

BOLT, FRONT

09112-08006

Unavailable

9

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.66

10

SPACER This part replaces 09180-080G7.

09180-08067

$2.40

11

CUSHION

09320-12050

Unavailable

12

SPACER This part replaces 09180-080G7.

09180-08067

$2.40

13

CUSHION

09320-12016

$2.57

14

COCK ASSY, FUEL

44300-22A01

$54.28

15

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.48

15

HOSE,5X10X600 | P33 This part replaces 09355-50105-600.

44421-13ER0

$9.48

16

CLIP

09401-08401

$1.52

16

CLIP (ID:9.4,H:8) | P33

09401-09403

$2.09

17

SCREW This part replaces 02112-36163.

02112-3616A

$2.03
